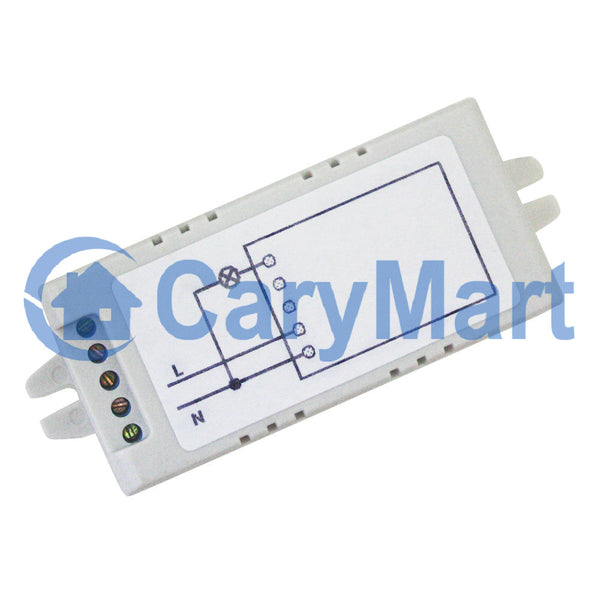

1 Channel 3A AC Power Output Wireless Switch or RF Receiver (Model: 0020612)

Regular price $18.00

Shipping calculated at checkout.
Application:
This RF wireless remote control light switch (receiver) is an electric device with 1 channel AC power output, it and the transmitter form a radio transmitter and receiver system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, aerial vehicle, etc. It can remote control equipment on land, water and air, such as remote control lamps, strip lights, spotlights, outdoor lights, led lights, garden lights, motors, fans, pump, electric solenoid valves, and business signs. The applications are endless.

Feature:
Wireless control, easy to install.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

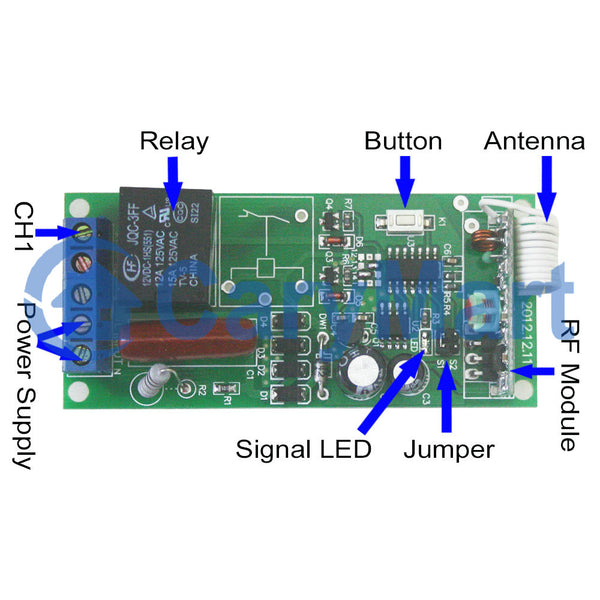

Receiver Parameters:
Model No.: S1XC-AC
Power Supply (Operating Voltage): AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)
Output Type: AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)
Channel: 1 CH
Maximum Load Current of Relay: 3A
Wire Range of Terminals: 22-14AWG
3 Selectable Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20°C ~ +70°C
PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 / C-2 (100 Meter / 300 feet range), CP-1 / CP-2 (500 Meter / 1500 feet range), or CB-1 / CB-2 (1000 Meter / 3000 feet range).
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1, CP-1, or CB-1.
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2, CP-2, or CB-2.

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-1 or CB-2 transmitter.

Setting different control modes:

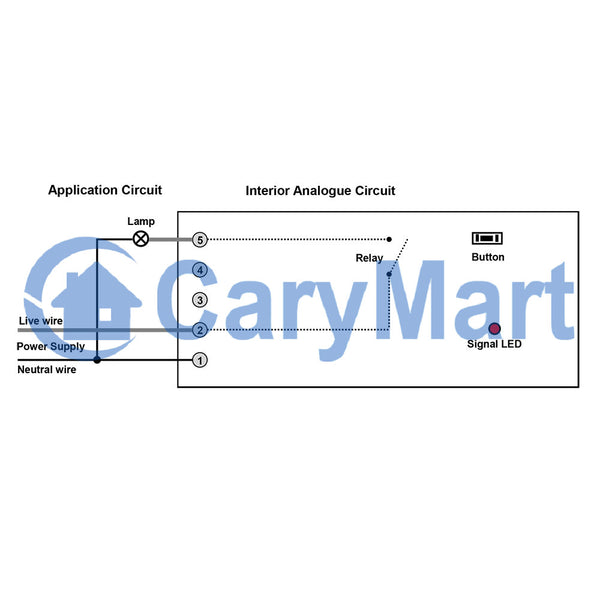

1) Setting Self-locking mode: Only connect S1.
The operation of Self-locking mode with the transmitter C-1 or CB-1:
Press the button on the transmitter: The terminal 1 and 5 outputs AC power, and the connected lamp is turned on.
Press the button again: The terminal 1 and 5 stop outputting, and the connected lamp is turned off.

2) Setting Momentary mode: Do not connect S1 and S2.
The operation of Momentary mode with the transmitter C-1 or CB-1:
Press and hold the button on the transmitter: The terminal 1 and 5 outputs AC power, and the connected lamp is turned on.
Release the button: The terminal 1 and 5 stop outputting, and the connected lamp is turned off.

3) Setting Interlocking mode: Only connect S2.
The operation of Interlocking mode with the transmitter C-2 or CB-2:
Press the button A on the transmitter: The terminal 1 and 5 outputs AC power, and the connected lamp is turned on.
Press the button B on the transmitter: Terminals 1 and 5 stop outputting, and connected lamp is turned off.
