1 Way 5 km DC 30A Remote Switch Kit for Wireless Control 6V 9V 12V 24V Light (Model: 0020114)

Regular price $105.00

Shipping calculated at checkout.
Application:
This long distance 5000 meters 6V 9V 12V 24V 30A wireless remote control switch kit with 1 channel DC power input output Waterproof radio receiver and RF transmitter.
For long range remote control various types of 6V 9V 12V 24V illumination, such as lighting, lamp, led light, outdoor lights, christmas lights, ceiling lights, spotlight, floor lamp, solar light, etc.

Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V / 9V / 12V / 24V.
High Power: Each channel can work at maximum load current 30A.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.

Receiver Parameters:
Model No.: S1PXW-DC
Operating Voltage: 6VDC (model S1PXW-DC06), or 9±1VDC (model S1PXW-DC09), or 12±1VDC (model S1PXW-DC12), or 24±2VDC (model S1PXW-DC24), the operating voltage must be specified when ordering.
Output Type: 6VDC (model S1PXW-DC06), or 9VDC (model S1PXW-DC09), or 12VDC (model S1PXW-DC12), or 24VDC (model S1PXW-DC24)
Channel: 1 Way
3 Control Modes: Self-locking, Momentary, Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / each channel
Wire Range of Terminals: 22-12AWG
Working Frequency: 433.92 MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches)
Case size: 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches)

Transmitter Parameters:
Model: 0021060 (CC-1) / 0021061 (CC-2)
Channel / Button: 1(CC-1) / 2(CC-2)
Button Symbol: No Symbol (CC-1) / A, B(CC-2)
Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)
With power switch on the side.
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)

Matching Transmitters:
This receiver only works with 5000m transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model CC-1 (5000 meters/15000 ft range) or CCW-1 (waterproof, 5000 meters/15000 ft range).
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model CC-2 (5000 meters/15000 ft range), or CCW-2 (waterproof, 5000 meters/15000 ft range).

Working Range:
With the transmitter (such as CC-2) forming a complete set, the maximum working distance may reach 5000 meters in an open area.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.

Setting different control modes:
1) Setting Self-locking mode: Turn on the first bit of the dip switch.
The operation of Self-locking mode with the transmitter CC-1:
Press the button on the transmitter: The terminals A and B of OUT outputs DC power, and the connected lamp is turned on.
Press the button again: The terminal A and B of OUT stops outputting, and the connected lamp is turned off.

2) Setting Momentary mode: Turn on the first bit and the second bit of the dip switch.
The operation of Momentary mode with the transmitter CC-1:
Press and hold the button on the transmitter: The terminals A and B of OUT outputs DC power, and the connected lamp is turned on.
Release the button : The terminal A and B of OUT stops outputting, and the connected lamp is turned off.

3) Setting Interlocking mode: Turn on the second bit of the dip switch.
The operation of Interlocking mode with the transmitter CC-2:
Press the button A on the transmitter: The terminals A and B of OUT outputs DC power, and the connected lamp is turned on.
Press the button B on the transmitter: Terminals A and B of OUT stop outputting, and connected lamp are turned off.

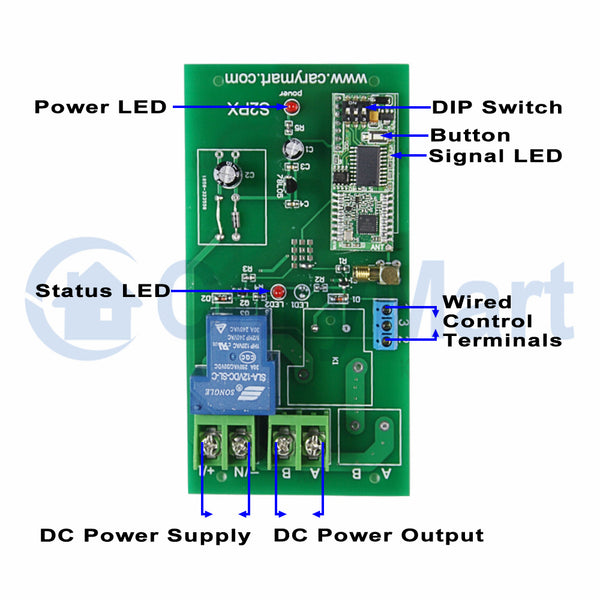

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices, sensors, or manual switches to these terminals, then use them to control the receiver.
1) By low level signal:
You can connect the external devices (with low level output signal) to the terminals 2 and 3; then use the external devices to control the receiver.
When external device outputs low level signal to terminals 2 (Signal +) and terminal 3 (Signal -), terminals A and B of OUT output DC power, and the lamp is turned on.
When the external device stops to output signal, Terminals A and B of OUT stop outputting, the lamp is turned off.

2) By NO/NC contact:
You can connect the manual switches (with NO/NC contact) to the terminals 2 and 3; then use the manual switches to control the receiver.
When connect terminals 2 and 3 by manual switch, Terminals A and B of OUT output DC power, the lamp is turned on.
When disconnect terminals 2 and 3 by manual switch, Terminals A and B of OUT stop outputting, the lamp is turned off.

Package Include:

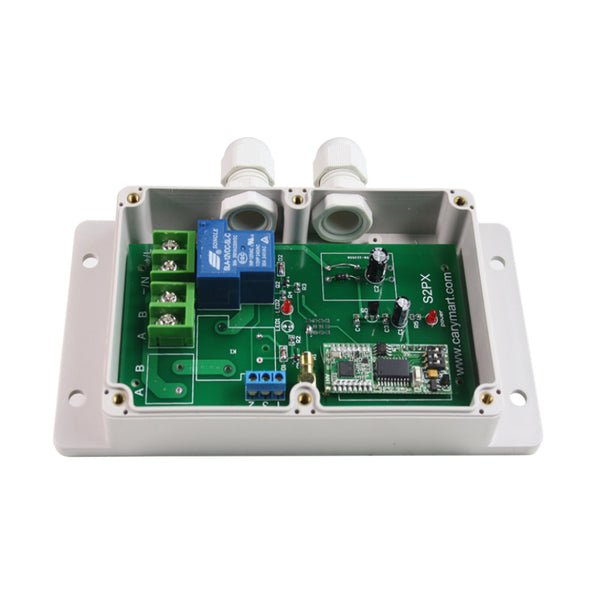

1 x Receiver: S1PXW-DC-ANT3

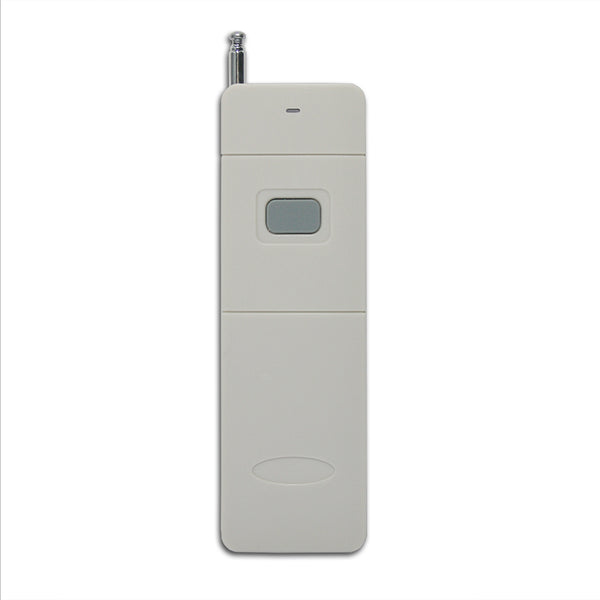

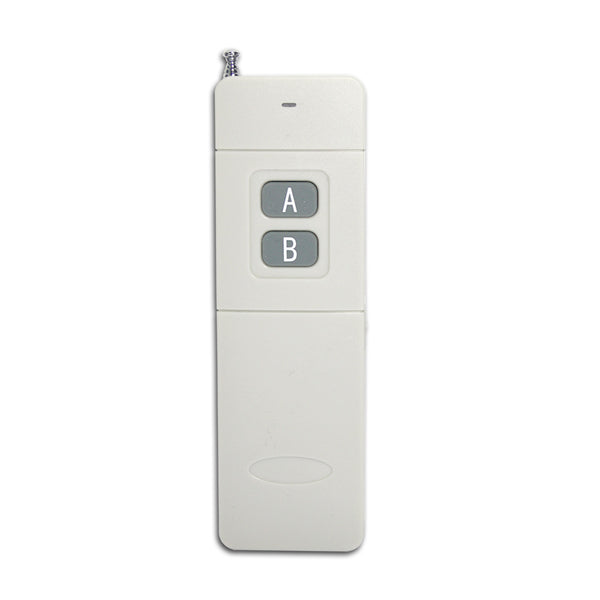

1 x Transmitter: CC-1/CCW-1/CC-2/CCW-2
1 x User manual
