A RF Transmitter and 12 Wireless Receivers With 1-CH 120V 220V Input Output (Model: 0020459)

Regular price $280.00

Shipping calculated at checkout.

Package Include:
12 x Receiver: S1XB-AC
1 x Transmitter: CV-12
1 x User manual

Application:

This remote control receiver kit with 12 AC 120V 220V output of wireless switch and a 12 buttons RF transmitter.
This RF wireless switch (receiver) is an electric device with 1 channel AC power output, it and the transmitter form a radio transmitter and receiver system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control lamp/light, fan, motor, pump, solenoid valve, door lock, lawn mower, heater, air conditioner, gates, curtains, etc.

Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S1XB-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 1 Way
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
3 Control modes: Self-locking, Momentary, and Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)

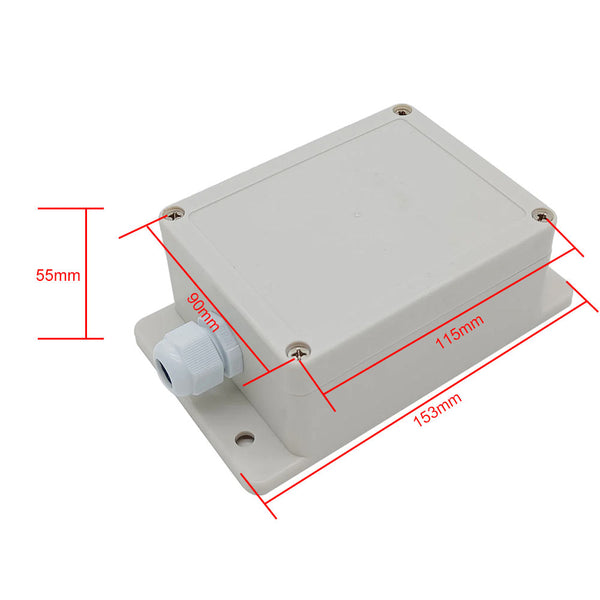

Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

Transmitter Parameters:
Model No.: 0021022 (CV-12)
Channel/Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Matching Transmitters:
The receiver can work with different transmitters, such as model CV-12 (500 Meter / 1500 feet range) or CB-12(1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as CV-12) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-12 transmitter.

Usage:
The receiver can be used to control AC 110~240V equipments.

Setting different control modes:
1) Setting Self-locking mode: Press and hold the button of receiver until signal LED flashes 3 times, then release button.
Control mode Self-locking (working with transmitter CV-12): Press -> On; Press again -> Off.
Press button 1 of the transmitter: The lamp connected to the receiver 1 is turned on.
Press button 1 of the transmitter again: The lamp connected to the receiver 1 is turned off.
Press button 2 of the transmitter: The lamp connected to the receiver 2 is turned on.
Press button 2 of the transmitter again: The lamp connected to the receiver 2 is turned off.
...
Press button 12 of the transmitter: The lamp connected to the receiver 12 is turned on.
Press button 12 of the transmitter again: The lamp connected to the receiver 12 is turned off.

2) Setting Momentary mode: Press and hold the button of receiver until signal LED flashes 2 times, then release button.
Control mode Momentary (working with transmitter CV-12): Press and hold -> On; Release -> Off.
Press and hold button 1 of the transmitter: The lamp connected to the receiver 1 is turned on.
Release the button 1 of the transmitter: The lamp connected to the receiver 1 is turned off.
Press and hold button 2 of the transmitter: The lamp connected to the receiver 2 is turned on.
Release the button 2 of the transmitter: The lamp connected to the receiver 2 is turned off.
...
Press and hold button 12 of the transmitter: The lamp connected to the receiver 12 is turned on.
Release the button 12 of the transmitter: The lamp connected to the receiver 12 is turned off.

3) Setting Interlocking mode: Press and hold the button of receiver until signal LED flashes 1 time, then release button.
Control mode Interlocking (working with transmitter CV-12): Press -> On, Press another button -> Off.
Press button 1 of the transmitter: The lamp connected to the receiver 1 is turned on; Lamps connected to other receivers are turned off.
Press button 2 of the transmitter: The lamp connected to the receiver 2 is turned on; Lamps connected to other receivers are turned off.
...
Press button 12 of the transmitter: The lamp connected to the receiver 12 is turned on; Lamps connected to other receivers are turned off.
