A heavy-duty 24V DC single chain electric window opener actuator designed for natural and smoke ventilation in residential and commercial buildings. Constructed with a double-layer stainless steel chain and durable aluminum alloy housing, it provides smooth, quiet operation with up to 600N push/pull force and over 2000N locking force when closed.
Key Features
- Durable Construction: Double-layer stainless steel chain and aluminum alloy housing designed for long-lasting performance and corrosion resistance.
- Powerful & Quiet: 600N maximum thrust force with smooth, low-noise motorized movement and integrated overload protection.
- Superior Locking Seal: Over 2000N locking force upon complete window closure, meeting strict airtightness and weatherproofing demands.
- Versatile Automation: Compatible with wireless remote control switches, wall switches, timers, mobile app controllers, and automatic rain/wind sensors.
- Compact Design: Slim, space-saving profile that installs easily on vertical sash, top-hung, bottom-hung, side-hung, and standard casement windows or skylights.
- Wide Stroke Range: Available in 7 stroke length options ranging from 300 mm to 1000 mm (12 inches to 40 inches).
Technical Specifications
- Model Numbers: 0042101 (300mm), 0042102 (400mm), 0042103 (500mm), 0042104 (600mm), 0042105 (700mm), 0042106 (800mm), 0042107 (1000mm)
- Working Voltage: DC 24V
- Working Current: ~1.2A
- Rated Power: 28W
- Operating Speed: 10–15 mm/s
- Max Thrust Force: 600N
- Locking Force: > 2000N
- Stroke Options: 300 mm – 1000 mm (12 in – 40 in)
- Suitable Window Width: 0.47 m – 1.5 m
- Ingress Protection: IP32
- Operating Temperature: -26°C to +85°C
Stroke & Actuator Dimensions
| Stroke | Total Body Length | Model No. |
|---|---|---|
| 300 mm (12") | 420 mm | 0042101 |
| 400 mm (16") | 470 mm | 0042102 |
| 500 mm (20") | 520 mm | 0042103 |
| 600 mm (24") | 570 mm | 0042104 |
| 700 mm (28") | 620 mm | 0042105 |
| 800 mm (32") | 670 mm | 0042106 |
| 1000 mm (40") | 770 mm | 0042107 |
Applications
- Top-hung, bottom-hung, side-hung, and casement windows
- Domes, skylights, roof vents, and greenhouse windows
- Smoke heat exhaust ventilation (SHEV) and daily commercial/residential ventilation systems
Operation & Accessories
Reversing the DC 24V polarity controls direction: forward polarity extends the chain to open the window, while reverse polarity retracts the chain to close and secure the window.
- Wireless Control: Wirelessly operate this actuator with our 1-Channel Wireless Remote Control Switch Kit.
- Power Supply: If you need a matching DC 24V 3A power adapter, please click here to purchase.
Installation Steps
- Find and mark the centerline on both the window sash and frame.
- Drill two holes on the window sash using a 3.8 mm drill bit.
- Secure the U-shaped bracket to the sash with the 2 dovetail self-tapping screws.

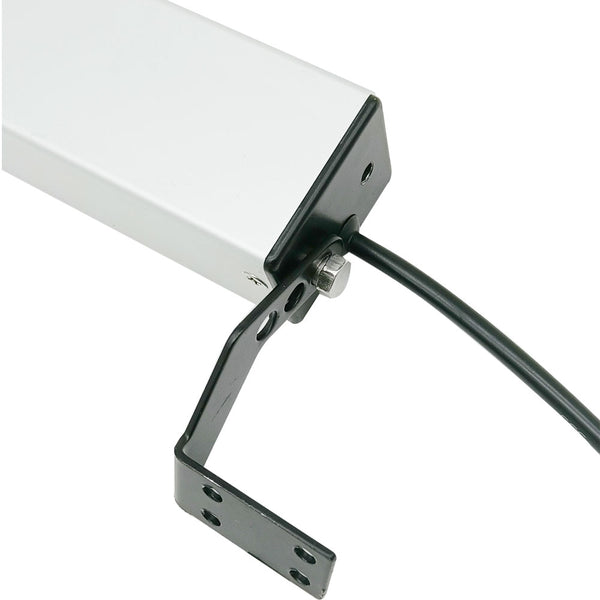

- Attach the L-shaped brackets to the window opener using hex screws and a #10 wrench (brackets can face inward or outward).
- Mount the window opener chain to the U-shaped bracket.
- Tighten the nut cover with two #8 wrenches.
- Fasten the L-shaped bracket to the window frame with 4 dovetail self-tapping screws.
- Inspect all mountings and connect DC 24V power to test opening and closing.
Note: For wider or heavier windows (over 1.5 m), two window openers can be installed to operate synchronously.
