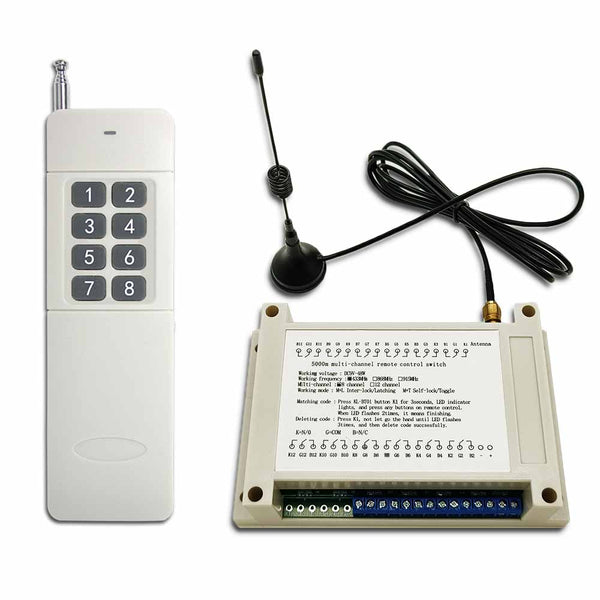

Package Include:
1 x Receiver: S8UW-DC-ANT3
1 x Transmitter: CC-8
1 x User manual
Application:
This long range 5000 meters 8 channels DC 9V 12V 24V 10A wireless remote control switch kit with radio receiver and RF transmitter.
The kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. The kit can long distance control DC and AC equipments, such as remote control light, lamp, locks, motor, fans, pump, blinds, linear actuator, door, windows, electric solenoid valve, etc.
Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.
Wide operating voltage range: 9~28VDC
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.

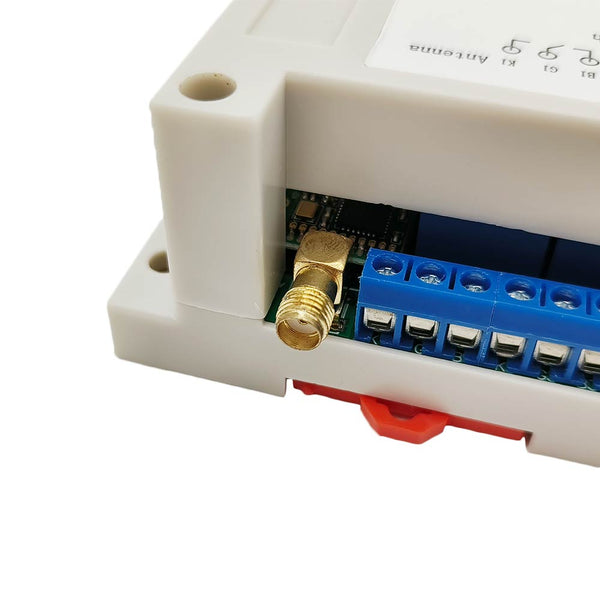

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Receiver Parameters:
Model No.: S8UW-DC
Operating Voltage: 9~28VDC
Working Frequency: 433.92 MHz
Quiescent Current: ≤10mA
Channel: 8 CH
Output Type: Dry Relays Output (Normally Open and Normally Closed)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / each channel
Wire Range of Terminals: 22-12 AWG
8 Different Control Modes: Self-locking, Momentary, Interlocking, and 5 Mixed modes
Operating Temperature: -20°C ~ +70°C
PCB size: 122 x 87 x 18 mm (4.8x 3.4 x 0.7 inches)

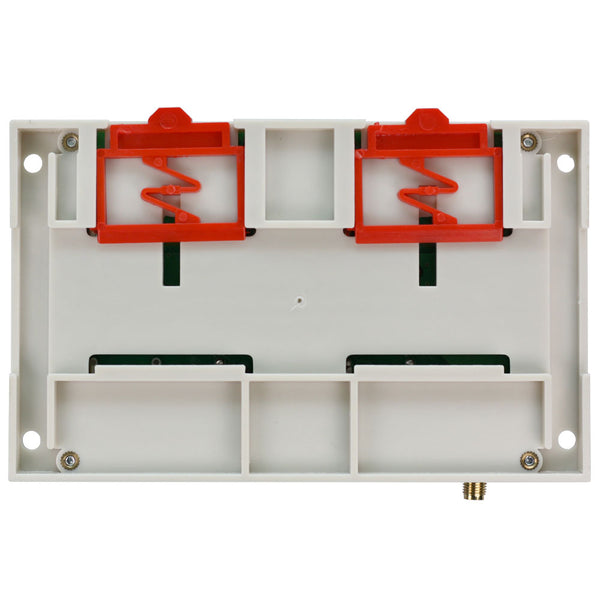

Case size: 145 x 90 x 40 mm (5.7 x 3.5 x 1.6 inches)
Transmitter Parameters:
Model: 0021077 (CC-8)
Channel / Button: 8
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8
Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)
With power switch on the side.
Operating Temperature: -20°C ~ +70°C
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Working Range:
With the transmitter CC-8 forming a complete set, the maximum working distance may reach 5000 meters in an open area.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Usage:
The receiver can be used to control both 0~28VDC and 110~240VAC devices.
Notice: The receiver is dry relay output, not DC/AC power output. Initial state of relay output terminals: Terminals <NO> and <COM> are Normally Open; Terminals <NC> and <COM> are Normally Closed.
Wiring:

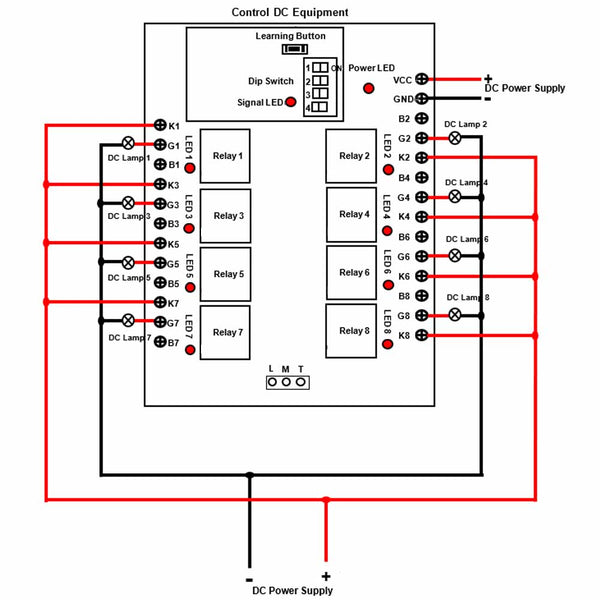

I) If you want to control a DC lamp, do as following:
1) Connect the positive pole of DC power supply 1 to terminal "VCC" of the receiver;
2) Connect the negative pole of DC power supply 1 to terminal "GND" of the receiver;
3) Connect the positive pole of DC power supply 2 to terminal "NO" of the receiver;
4) Connect the negative pole of DC power supply 2 to the negative pole of DC lamp;
5) Connect the positive pole of DC lamp to terminal "COM" of the receiver.

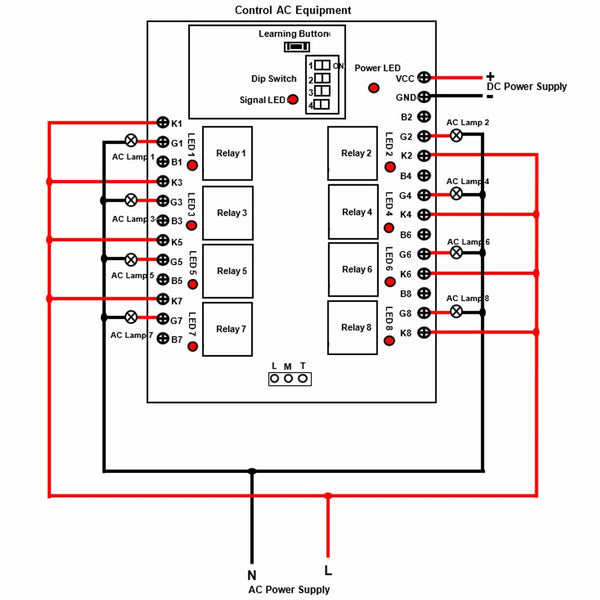

II) If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply 1 to terminal "VCC" of the receiver;
2) Connect the negative pole of DC power supply 1 to terminal "GND" of the receiver;
3) Connect the live wire of AC power supply to terminal "NO" of the receiver;
4) Connect the neutral wire of AC power supply to the one side of AC lamp;
5) Connect another side of AC lamp to terminal "COM" of the receiver.
Switch the working mode or switch the number of operating channels:

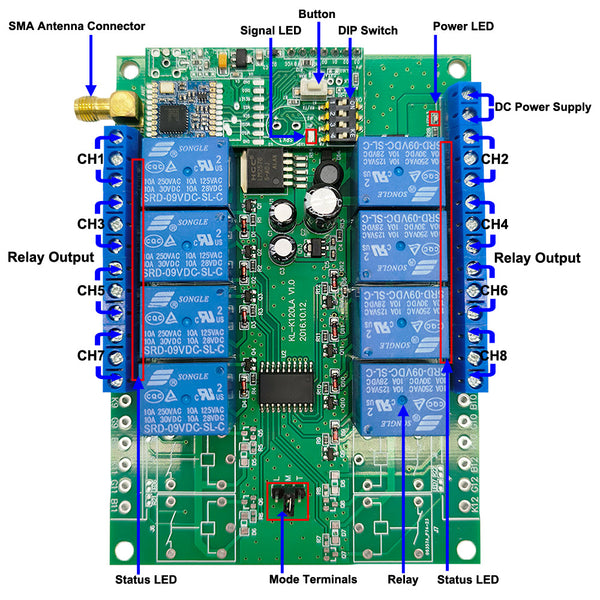

The receiver has two buttons, button A is the channel number switching button, and button B is the working mode switching button.
1) When the receiver is powered on, the LED screen will display "A08".
2) If you press and hold the button A for 2-3 seconds, the LED screen will flash, and the receiver enters the channel number switching status. At this time, you may press the button A to switch the display text of the LED screen. The text will switch from A08 to A06 then to A12. A08 indicates that all 8 channels of the receiver are operational. A06 indicates that only 6 channels of the receiver are operational. A12 indicates that only 12 channels of the receiver are operational. If you again press and hold the button A for 2-3 seconds, the LED screen stops flashing, and the receiver exits the channel number switching status.
Setting different working modes:
1) Setting Momentary mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b01".
The operation of Momentary mode with the transmitter CC-8:
Press and hold the button 1 on the transmitter: The relay 1 in the receiver is activated; Release the button 1: The relay 1 is deactivated.
Press and hold the button 2 on the transmitter: The relay 2 in the receiver is activated; Release the button 2: The relay 2 is deactivated.
............
Press and hold the button 8 on the transmitter: The relay 8 in the receiver is activated; Release the button 8: The relay 8 is deactivated.
2) Setting Self-locking mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b02".
The operation of Self-locking mode with the transmitter CC-8:
Press the button 1 on the transmitter: The relay 1 in the receiver is activated; Press the button 1 again: The relay 1 is deactivated.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated; Press the button 2 again: The relay 2 is deactivated.
............
Press the button 8 on the transmitter: The relay 8 in the receiver is activated; Press the button 8 again: The relay 8 is deactivated.
3) Setting Interlocking mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b03".
The operation of Interlocking mode with the transmitter CC-8:
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and other 7 relays are deactivated.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and other 7 relays are deactivated.
............
Press the button 8 on the transmitter: The relay 8 in the receiver is activated, and other 7 relays are deactivated.
4) Setting Momentary (Channels 1~4) + Self-locking (Channels 5~8) mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b04".
5) Setting Momentary (Channels 1~4) + Interlocking (Channels 5~8) mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b05".
6) Setting Self-locking (Channels 1~4) + Interlocking (Channels 5~8) mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b06".
7) Setting Special Interlocking mode (Every two channels form a special interlocking mode): When the receiver is in the working mode switching state, press button B until the LED screen displays "b07".
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the relay 2 is deactivated.
Press the button 1 again: The relay 1 is deactivated.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the relay 1 is deactivated.
Press the button 2 again: The relay 2 is deactivated.
............
8) Setting dual button control single channel mode (Each two buttons on the transmitter controls one channel. This mode supports up to 4 channels, the other 4 channels are not used.): When the receiver is in the working mode switching state, press button B until the LED screen displays "b08".
Press the button 1 on the transmitter: The relay 1 in the receiver is activated; Press the button 2: The relay 1 is deactivated.
Press the button 3 on the transmitter: The relay 2 in the receiver is activated; Press the button 4: The relay 2 is deactivated.
............
Press the button 7 on the transmitter: The relay 4 in the receiver is activated; Press the button 8: The relay 4 is deactivated.
