Package Include:
1 x Receiver: S2PU-AC380
1 x Transmitter: CP-2L
1 x User manual
Application:
For long range wireless remote control AC and DC equipments, such as lamp, light, LED lighting, motor, solenoid valve, pump, fan, heater, etc.
Feature:
Wireless control, easy to install.
Universal Power Supply: AC 100~450V, support AC 110V, AC 120V, AC220V, AC 240V, AC 380V.
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipment. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipment.

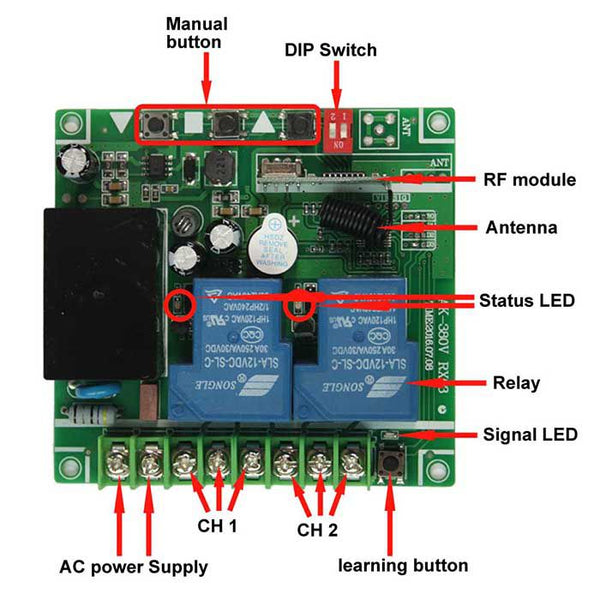

With three manual buttons: You can control the equipment by manual buttons.
With wired control terminals: You can connect manual switches to control the equipment.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the equipment.
With 2 pins for switching the type of normally open or normally closed limit switch.
With a DIP switch for switching working modes, offering four operating modes.

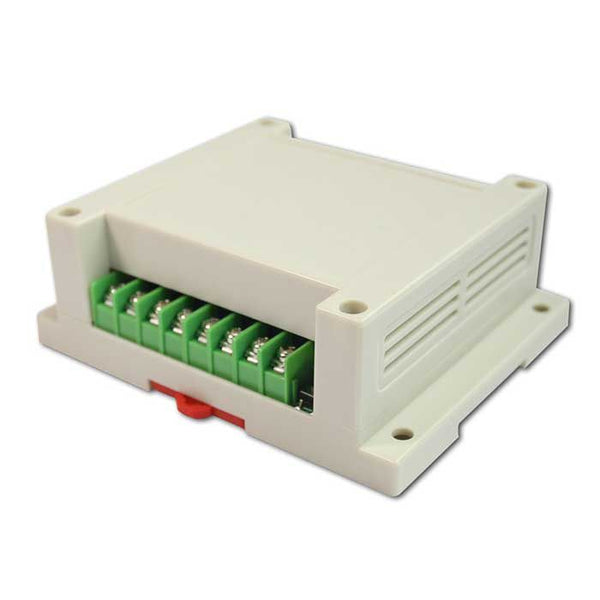

With guide rail buckle and screw holes: The back of the receiver is equipped with a guide rail buckle and screw holes, which can be mounted on a 35mm guide rail or directly fixed with screws.
With external antenna, the receiver have a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
Two or more receivers may be used in the same area.
One or more transmitters / remotes can control one or several receivers simultaneously.

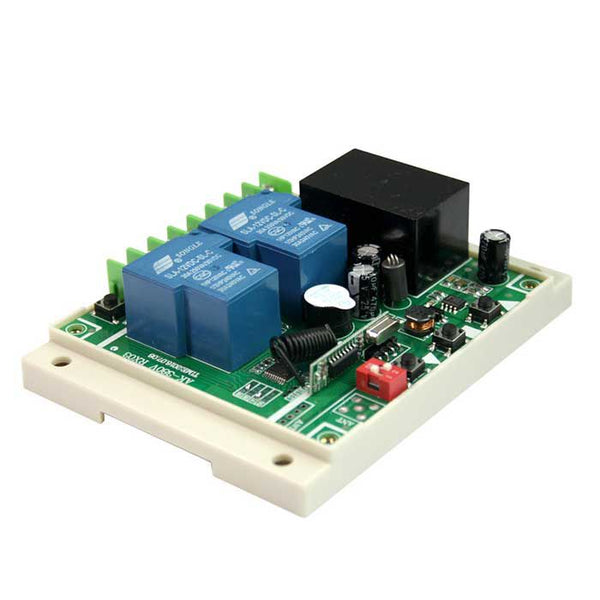

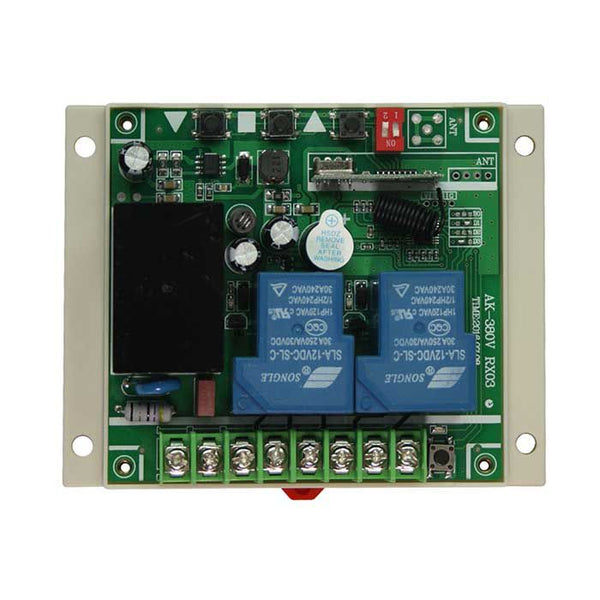

Receiver Parameters:
Model: S2PU-AC380
Operating Voltage: AC 100V~450V (110V/120V/220V/240V/380V)
Output Typ: Relay output (Normally open and normally closed)
Maximum Load Current: 30 A / each channel
Static Current: <30mA
Channel: 2 CH
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Receiver Sensitivity: ≥-113dBm
Working Frequency: 433.92MHz
Suitable Wires for Connecting Terminals: 22-14 AWG
Operating Temperature: -25 ° C to +80 ° C
PCB size: 92 x 86 x 23 mm
Case size: 115 x 90 x 40 mm

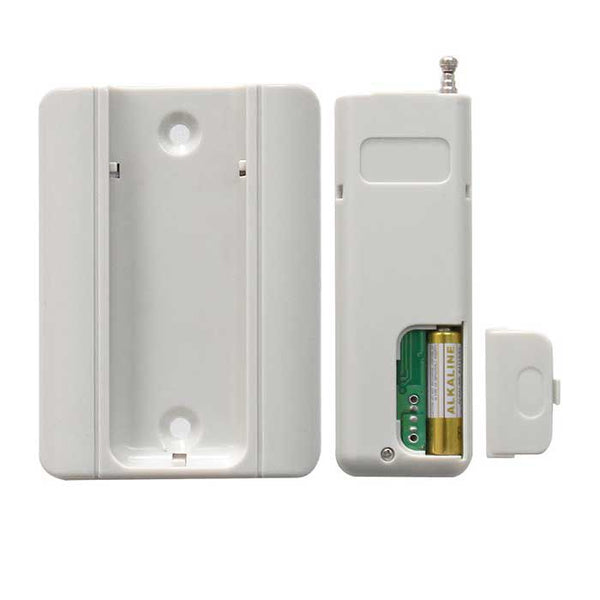

Transmitter parameters:
Model No.: CP-2L
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433.92MHz
Encoding Chip: VE1527
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85 x 36 x 16 mm
Applicable transmitters:
The receiver can work with different transmitters, such as model CP-2L (500 meters), CB-2L (1000 meters), and CP-3L (500 meters).
Working Range:
This receiver and different transmitters form a complete set, which can achieve different working distances. For example, when it and the transmitter CP-2L or CP-3L form a complete set, the maximum working distance may reach 1500 feet or 500 meters in an open area. When it and the transmitter CB-2L form a complete set, the maximum working distance may reach 3000 feet or 1000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Usage:
The receiver can be used to control both 0~28VDC and AC 100~450V equipment.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals <NO> and <COM> are Normally Open; Terminals <NC> and <COM> are Normally Closed.
It can be used directly in single-phase and DC equipment.
It cannot be used directly with three-phase electrical equipment; it must be used in conjunction with an AC contactor.
Setting different control modes:
1) Setting Momentary mode: Turn off the first bit and the second bit of the dip switch, the signal LED flashes 1 time and the buzzer sounds 1 time.
The operation of Momentary mode with the transmitter CP-2L:
Press and hold the button ▲ on the transmitter: The relay 1 is activated, two terminals <NO1> and <COM1> of <Relay 1> are connected, two terminals <NC1> and <COM1> are disconnected.
Release the button ▲ : The relay 1 is deactivated, two terminals <NO1> and <COM1> of <Relay 1> are disconnected, two terminals <NC1> and <COM1> are connected.
Press and hold the button ▼ on the transmitter: The relay 2 is activated, two terminals <NO2> and <COM2> of <Relay 2> are connected, two terminals <NC2> and <COM2> are disconnected.
Release the button ▼ : The relay 2 is deactivated, two terminals <NO2> and <COM2> of <Relay 2> are disconnected, two terminals <NC2> and <COM2> are connected.
The operation of Momentary mode with the manual buttons on the receiver:
Press and hold the button UP on the receiver: The relay 1 is activated.
Release the button UP: The relay 1 is deactivated.
Press and hold the button DOWN on the receiver: The relay 2 is activated.
Release the button DOWN: The relay 2 is deactivated.
2) Setting Self-locking mode: Turn on the first bit and turn off the second bit of the dip switch, the signal LED flashes 2 times and the buzzer sounds 2 times.
The operation of Self-locking mode with the transmitter CP-2L:
Press the button ▲ on the transmitter: The relay 1 is activated, two terminals <NO1> and <COM1> of <Relay 1> are connected, two terminals <NC1> and <COM1> are disconnected.
Press the button ▲ again: The relay 1 is deactivated, two terminals <NO1> and <COM1> of <Relay 1> are disconnected, two terminals <NC1> and <COM1> are connected.
Press the button ▼ on the transmitter: The relay 2 is activated, two terminals <NO2> and <COM2> of <Relay 2> are connected, two terminals <NC2> and <COM2> are disconnected.
Press the button ▼ again: The relay 2 is deactivated, two terminals <NO2> and <COM2> of <Relay 2> are disconnected, two terminals <NC2> and <COM2> are connected.
The operation of Self-locking mode with the manual buttons on the receiver:
Press the button UP on the receiver: The relay 1 is activated.
Press the button UP again: The relay 1 is deactivated.
Press the button DOWN on the receiver: The relay 2 is activated.
Press the button DOWN again: The relay 2 is deactivated.
3) Setting Interlocking mode: Turn off the first bit and turn on the second bit of the dip switch, the signal LED flashes 3 times and the buzzer sounds 3 times.
The operation of Interlocking mode with the transmitter CP-3L:
Press the button ▲ on the transmitter: The relay 1 is activated, two terminals <NO1> and <COM1> of <Relay 1> are connected, two terminals <NC1> and <COM1> are disconnected.
Press the button ■ on the transmitter: The relay 1 is deactivated, two terminals <NO1> and <COM1> of <Relay 1> are disconnected, two terminals <NC1> and <COM1> are connected.
Press the button ▼ on the transmitter: The relay 2 is activated, two terminals <NO2> and <COM2> of <Relay 2> are connected, two terminals <NC2> and <COM2> are disconnected.
Press the button ■ on the transmitter: The relay 2 is deactivated, two terminals <NO2> and <COM2> of <Relay 2> are disconnected, two terminals <NC2> and <COM2> are connected.
The operation of Interlocking mode with the manual buttons on the receiver:
Press the button UP on the receiver: The relay 1 is activated.
Press the button STOP on the receiver: The relay 1 is deactivated.
Press the button DOWN on the receiver: The relay 2 is activated.
Press the button STOP on the receiver: The relay 2 is deactivated.
4) Setting Momentary (Channel 1) + Self-locking (Channel 2) mode: Turn on the first bit and the second bit of the dip switch, the signal LED flashes 4 times and the buzzer sounds 4 times.
Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to control the equipment.
Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed or normally open contact), such as sensors, limit switches to limit terminals, then use them to stop the equipment.
And the receiver has two pins for switching the type of normally open or normally closed limit switch.
Note: The receiver needs to be restarted after switching the limit switch type.
When the limit switch terminals of the receiver are set to normally closed type, if you are not using the limit switch, you need to short-circuit the upper and lower limit switch terminals respectively.
When the limit switch terminals of the receiver are set to normally open type, if you are not using the limit switch, you do not need to short-circuit the upper and lower limit switch terminals.
