Package Include:

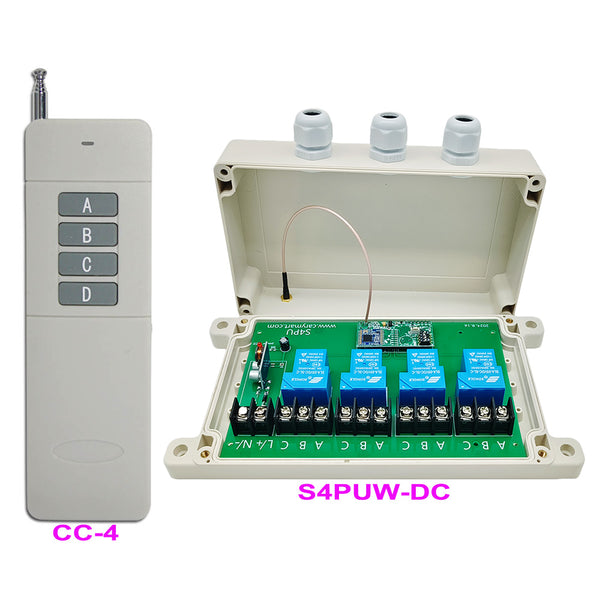

1 x Receiver: S4PUW-DC-ANT3
1 x Transmitter: CC-4 or CCW-4
1 x User manual
Application:
For long range wireless remote control AC and DC equipments, such as lamp, LED lighting, motor, solenoid valve, pump, electric lock, heater, etc.
Feature:
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Receiver:
Model: S4PUW-DC-ANT3
Operating Voltage: Compatible with DC 10V~80V
Output Type: Dry Relays Output (Normally Open and Normally Closed)
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / each channel
Channel: 4 CH
3 Selectable Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 170 x 109 x 18mm
Case size: 200 x 120 x 53 mm
Transmitter:
Model: 0021062 (CC-4)
Channel / Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22-9V battery)
Operating Frequency: 433MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5km / 3mi (theoretically)
Unit Size: 135 x 42 x 25 mm
Suitable transmitters:
This receiver only works with 5km transmitters, model CC-4 (5km / 3mi) and CCW-4 (waterproof, 5km / 3mi).
Working Range:
The kit has a maximum working distance of 5km (3mi) in open areas.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Setting different control modes:
1) Setting Self-locking mode (work with the transmitter CC-4): Turn on the third bit of the dip switch.
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the corresponding connected device is turned on.
Press the button A again: The relay 1 is deactivated, and the corresponding connected device is turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the corresponding connected device is turned on.
Press the button B again: The relay 2 is deactivated, and the corresponding connected device is turned off.
...
Press the button D on the transmitter: The relay 4 in the receiver is activated, and the corresponding connected device is turned on.
Press the button D again: The relay 4 is deactivated, and the corresponding connected device is turned off.
2) Setting Momentary mode (work with the transmitter CC-4): Turn off the second bit and the third bit of the dip switch.
Press and hold the button A on the transmitter: The relay 1 in the receiver is activated, and the corresponding connected device is turned on.
Release the button A: The relay 1 is deactivated, and the corresponding connected device is turned off.
Press and hold the button B on the transmitter: The relay 2 in the receiver is activated, and the corresponding connected device is turned on.
Release the button B: The relay 2 is deactivated, and the corresponding connected device is turned off.
...
Press and hold the button D on the transmitter: The relay 4 in the receiver is activated, and the corresponding connected device is turned on.
Release the button D: The relay 4 is deactivated, and the corresponding connected device is turned off.
3) Setting Interlocking mode (work with the transmitter CC-4): Turn on the second bit of the dip switch.
Press the button A on the transmitter: The relay 1 in the receiver is activated, and the corresponding connected device is turned on; The other three relays are deactivated, and the corresponding connected devices are turned off.
Press the button B on the transmitter: The relay 2 in the receiver is activated, and the corresponding connected device is turned on; The other three relays are deactivated, and the corresponding connected devices are turned off.
...
Press the button D on the transmitter: The relay 4 in the receiver is activated, and the corresponding connected device is turned on; The other three relays are deactivated, and the corresponding connected devices are turned off.
