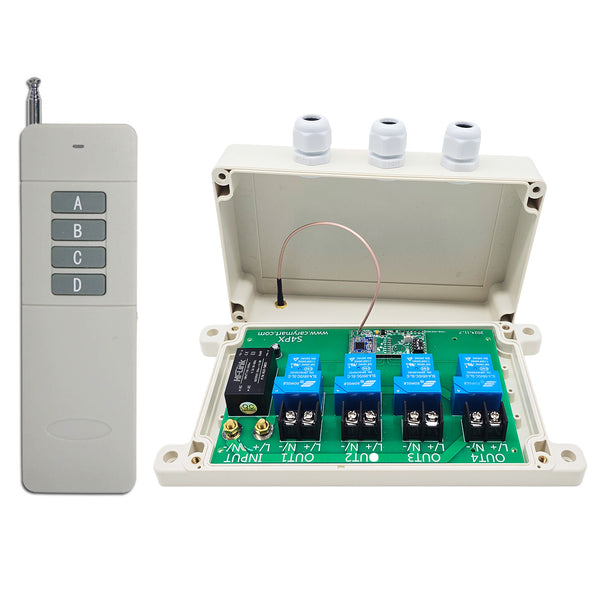

Package Include:
1 x Receiver: S4PXW-AC-ANT3
1 x Transmitter: CC-4 or CCW-4
1 x User manual
Application:
For long range wireless remote control AC equipments, such as lamp, LED lighting, motor, solenoid valve, pump, electric lock, heater, etc.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, CA, etc, and 220V AC (220V~240V) used in DE, UK, FR, etc.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Receiver Parameters:
Model: S4PXW-AC-ANT3
Operating Voltage: Compatible with AC 100V~240V
Output Type: AC power output, same as the input voltage.
Channel: 4 Way
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A per channel
Working Frequency: 433MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 170 x 100 x 18mm
Case size: 200 x 120 x 53 mm
Transmitter Parameters:
Model: 0021062 (CC-4)
Channel / Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22-9V battery)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5km / 3mi (theoretically)
Unit Size: 135 x 42 x 25 mm
Applicable Transmitters:
This receiver only works with 5000 meters transmitters, model CC-4 (5km / 3mi range) and CCW-4 (waterproof, 5km / 3mi range).
Working Range:
The kit has a maximum working distance of 5km (3mi) in open areas.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Setting different control modes:
1) Setting Self-locking mode (work with the transmitter CC-4): Turn on the third bit of the dip switch.
Press the button A on the transmitter: The AC device connected to the receiver terminals "OUT1" is turned on.
Press the button A again: The AC device connected to the receiver terminals "OUT1" is turned off.
Press the button B on the transmitter: The AC device connected to the receiver terminals "OUT2" is turned on.
Press the button B again: The AC device connected to the receiver terminals "OUT2" is turned off.
...
Press the button D on the transmitter: The AC device connected to the receiver terminals "OUT4" is turned on.
Press the button D again: The AC device connected to the receiver terminals "OUT4" is turned off.
2) Setting Momentary mode (work with the transmitter CC-4): Turn off the second bit and the third bit of the dip switch.
Press and hold the button A on the transmitter: The AC device connected to the receiver terminals "OUT1" is turned on.
Release the button A: The AC device connected to the receiver terminals "OUT1" is turned off.
Press and hold the button B on the transmitter: The AC device connected to the receiver terminals "OUT2" is turned on.
Release the button B: The AC device connected to the receiver terminals "OUT2" is turned off.
...
Press and hold the button D on the transmitter: The AC device connected to the receiver terminals "OUT4" is turned on.
Release the button D: The AC device connected to the receiver terminals "OUT4" is turned off.
3) Setting Interlocking mode (work with the transmitter CC-4): Turn on the second bit of the dip switch.
Press the button A on the transmitter: The AC device connected to the receiver terminals "OUT1" is turned on; The AC devices connected to the other three terminals of the receiver are turned off.
Press the button B on the transmitter: The AC device connected to the receiver terminals "OUT2" is turned on; The AC devices connected to the other three terminals of the receiver are turned off.
...
Press the button D on the transmitter: The AC device connected to the receiver terminals "OUT4" is turned on; The AC devices connected to the other three terminals of the receiver are turned off.
