The Model 0021020 (CV-8) is a handheld 8-button wireless RF remote control transmitter designed for reliable long-range operation. Featuring high receiving sensitivity, strong anti-interference performance, and low power consumption, this transmitter pairs with compatible 433MHz RF receivers to form a versatile wireless control system for industrial automation, agricultural equipment, commercial facilities, and home automation.
Key Features
- Long-Range Transmission: Working distance up to 500 meters (1,500 feet) in open unobstructed areas.
- 8 Independent Channels: Push buttons numbered 1 through 8 for flexible multi-channel device control.
- Telescopic Antenna: Extendable metal antenna enhances RF signal strength and transmission stability.

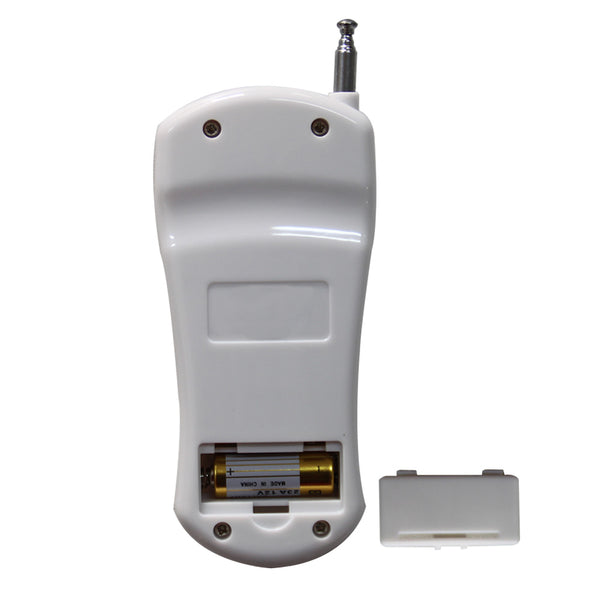

- Low Power Consumption: Powered by a standard 12V 23A battery with up to 12 months standby life.
- Compact Handheld Design: Ergonomic casing with LED transmission indicator, operating from -20°C to +70°C.
Technical Specifications
- Model Number: 0021020 (CV-8)
- Buttons / Channels: 8 (Numbered 1, 2, 3, 4, 5, 6, 7, 8)
- Operating Frequency: 433MHz
- Operating Voltage: 12V DC (1 x 23A 12V battery included)
- Operating Current: 15mA
- Transmitting Distance: 500m / 1,500ft (theoretical open field)
- Modulation Mode: ASK
- Operating Temperature: -20°C to +70°C
- Dimensions: 110 mm × 50 mm × 18 mm
Applications
- Industrial machinery, motors, pumps, conveyor belts, and hoists.
- Agricultural irrigation systems, water pumps, and greenhouse equipment.
- Electric linear actuators, motorized window openers, rolling doors, barriers, and gates.
- Lighting fixtures, solenoid valves, winches, security alarms, and access control.
