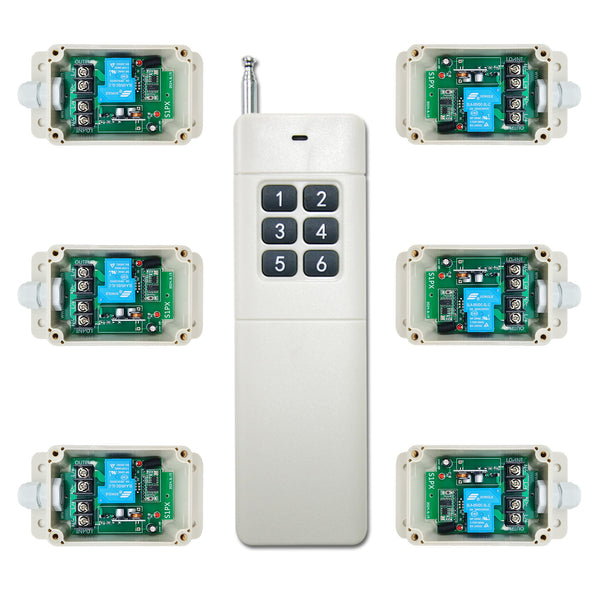

Package Include:
6 x Receiver: S1PX-DC
1 x Transmitter: CP-6L
1 x User manual
Application:
It can long range wireless remote control DC electrical equipments, such as lamp, lights, LED lighting, motor, fan, pump, solenoid valves, door lock, etc.
Feature:
Wireless control, easy to install.

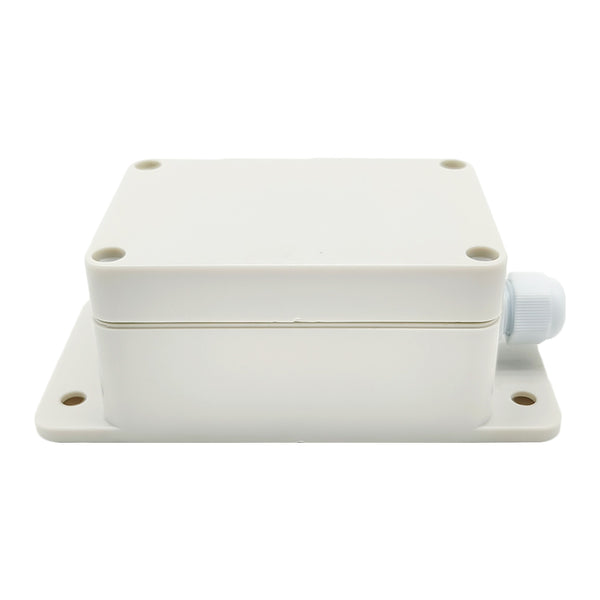

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
DC 10~80V operating voltage range.
DC Power Output: It can control DC equipment with a voltage in the range of 10~80 VDC.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

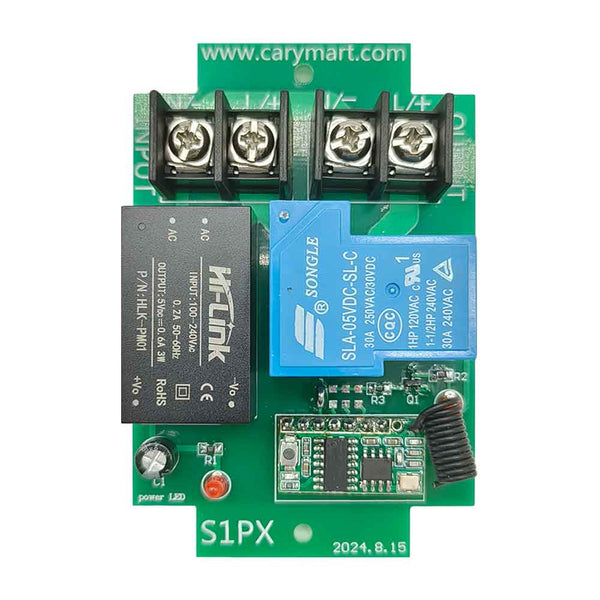

Receiver Parameters:
Model No.: S1PX-DC
Operating Voltage: 10~80 VDC
Output Type: 10~80 VDC same as input voltage
Channel: 1 Way
2 Control Modes: Self-locking, Momentary
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 90 x 59 x 18 mm

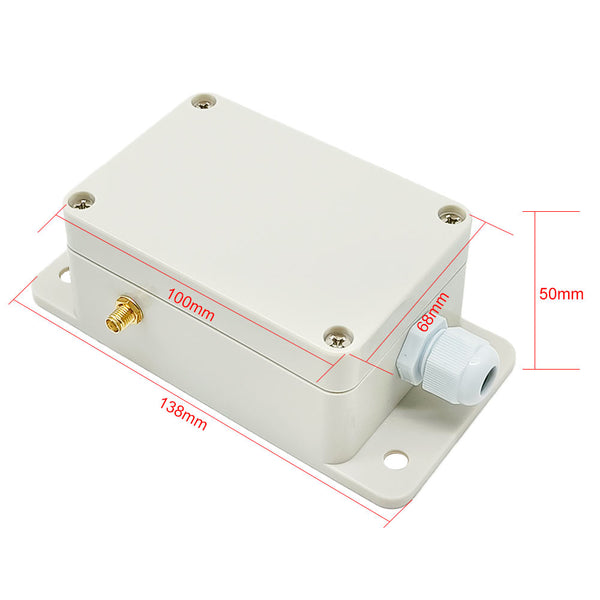

Case size: 138 x 68 x 50 mm

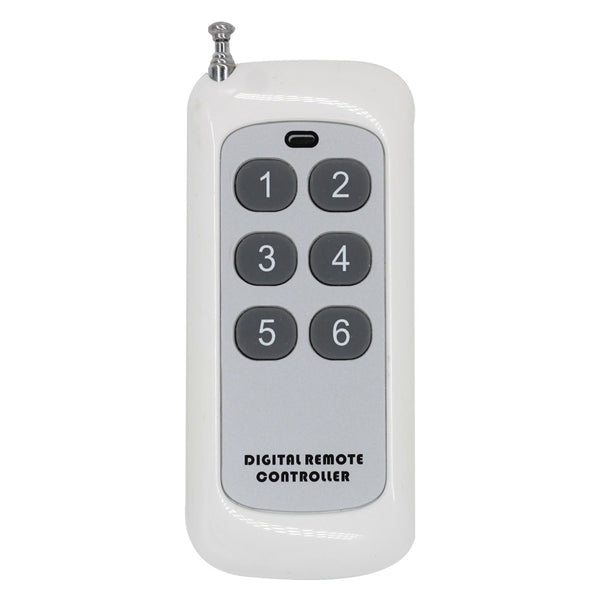

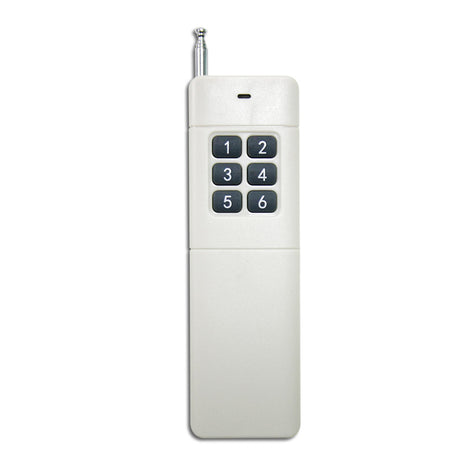

Transmitter Parameters:
Model No.: 0021013 (CP-6L)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433.92MHz
Encoding Chip: EV1527
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85 x 36 x 16 mm
Applicable Transmitters:

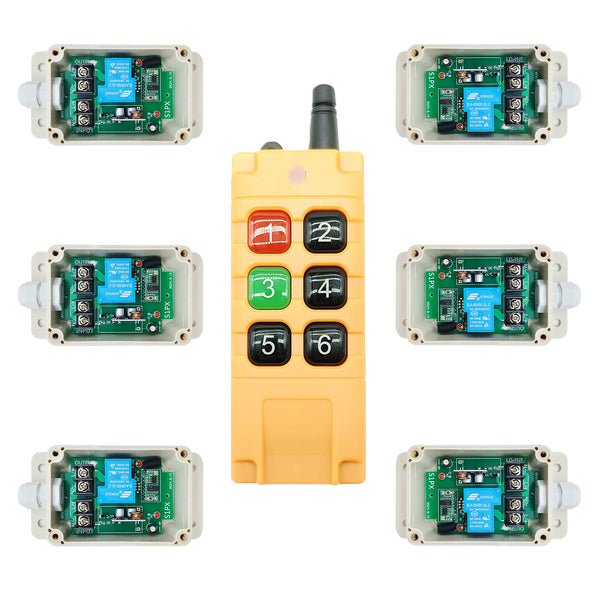

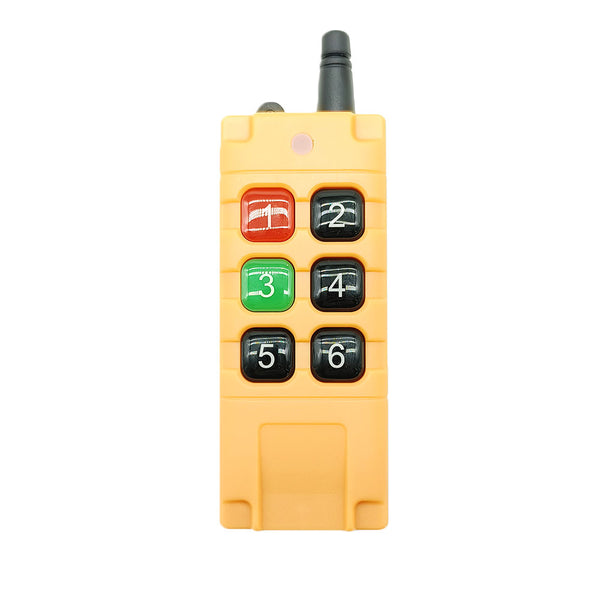

The receiver can work with different transmitters, such as model CP-6L (500 Meter / 1500 feet range), CB-6 (1000 Meter / 3000 feet range), and CD-6 (Industrial, Waterproof, 1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CP-6L) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-6 or CD-6 transmitter
.Usage:
The receiver can be used to control DC equipment with a voltage in the range of 10~80 VDC.
Wiring:
1) Connect the positive pole of DC power supply to input terminal “L/+” of the receiver;
2) Connect the negative pole of DC power supply to input terminal “N/-” of the receiver;
3) Connect the positive pole of DC device to output terminal “L/+” of the receiver;
4) Connect the negative pole of DC device to output terminal “N/-” of the receiver.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CP-6L:
Press and hold the button 1 of the transmitter: The output terminals of the receiver 1 outputs DC power, and the connected lamp 1 is turned on.
Release the button 1 of the transmitter: The output terminals of the receiver 1 stops outputting, and the connected lamp 1 is turned off.
Press and hold the button 2 of the transmitter: The output terminals of the receiver 2 outputs DC power, and the connected lamp 2 is turned on.
Release the button 2 of the transmitter: The output terminals of the receiver 2 stops outputting, and the connected lamp 2 is turned off.
...
Press and hold the button 6 of the transmitter: The output terminals of the receiver 6 outputs DC power, and the connected lamp 6 is turned on.
Release the button 6 of the transmitter: The output terminals of the receiver 6 stops outputting, and the connected lamp 6 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CP-6L:
Press the button 1 of the transmitter: The output terminals of the receiver 1 outputs DC power, and the connected lamp 1 is turned on.
Press the button 1 of the transmitter again: The output terminals of the receiver 1 stops outputting, and the connected lamp 1 is turned off.
Press the button 2 of the transmitter: The output terminals of the receiver 2 outputs DC power, and the connected lamp 2 is turned on.
Press the button 2 of the transmitter again: The output terminals of the receiver 2 stops outputting, and the connected lamp 2 is turned off.
...
Press the button 6 of the transmitter: The output terminals of the receiver 6 outputs DC power, and the connected lamp 6 is turned on.
Press the button 6 of the transmitter again: The output terminals of the receiver 6 stops outputting, and the connected lamp 6 is turned off.
How to pair the transmitter to the receiver:
You can freely pair any button on the transmitter with the receiver you want to control.
1) Select the receiver to be controlled and press the learning button in the receiver once, the signal LED on the receiver flashes once and then stays on, it means the receiver enters the learning state.
2) Press the button you want to use on the transmitter, if the signal LED flashes for 1 time, it means this button pairing is successful.
3) Press the learning button of receiver again for 1-2 seconds, the LED signal turns off, it means the receiver exits the learning state.
4) The receiver can learn multiple transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.
