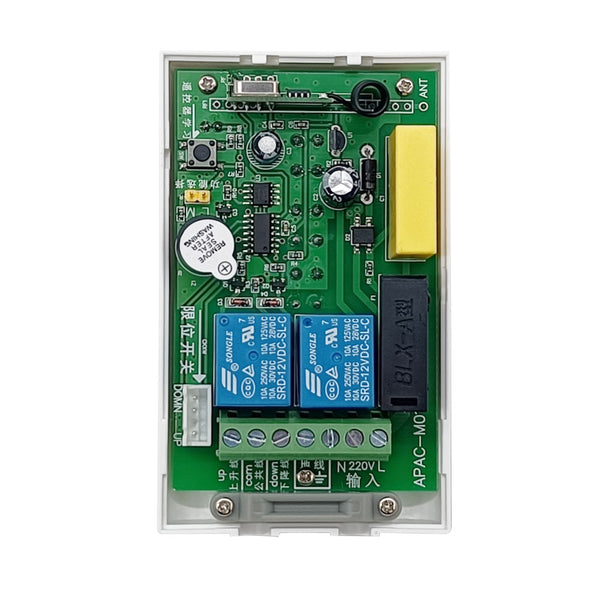

1 Way AC Wireless Switch or RF Receiver For 120V 220 Volt Motor (Model: 0020324)

Regular price $38.00

Shipping calculated at checkout.

Note: This product does not include a remote control/transmitter, if you need it, please click the link of the remote control/transmitter in the description below to buy.

Package Include:
1 x Receiver: S1FC-AC
1 x User manual

Application:

This is a 1 channel AC 110V 220V single phase electric motor controller or wireless radio switch or RF receiver, it with transmitter form a wireless remote control kit. This kit can long range remote control single phase motor positive rotation, reverse rotation or stop rotation.
Widely used in equipments with AC single phase motor, such as rolling blinds, rolling doors, projection screens, awnings, winches, conveyors.

Features:
Wireless control, easy to install.
Suitable for AC motor.
Support voltage of 110VAC (110V~120V), widely used in the United States, Canada, etc., and voltage of 220VAC (220V~240V), used in the United Kingdom, France, Germany etc.
Two working modes.
You can operate the motor to rotate in positive or reversal direction by using the buttons in the receiver or by the transmitter.

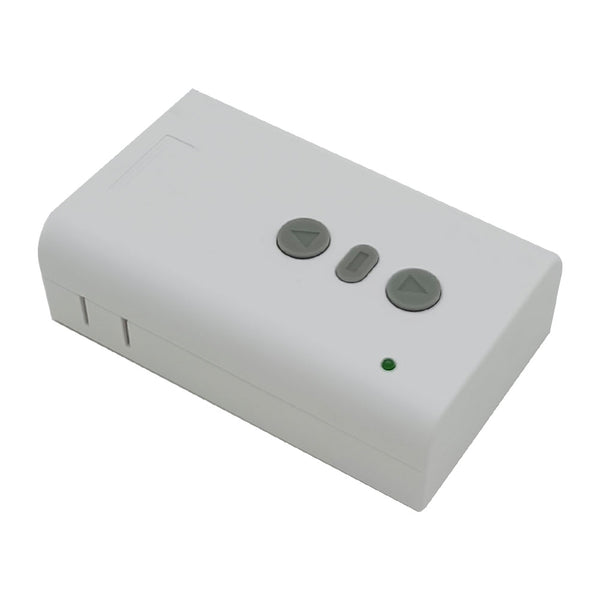

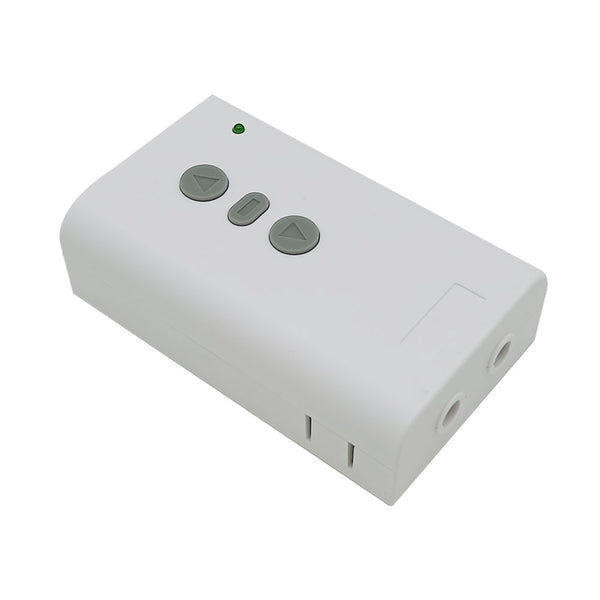

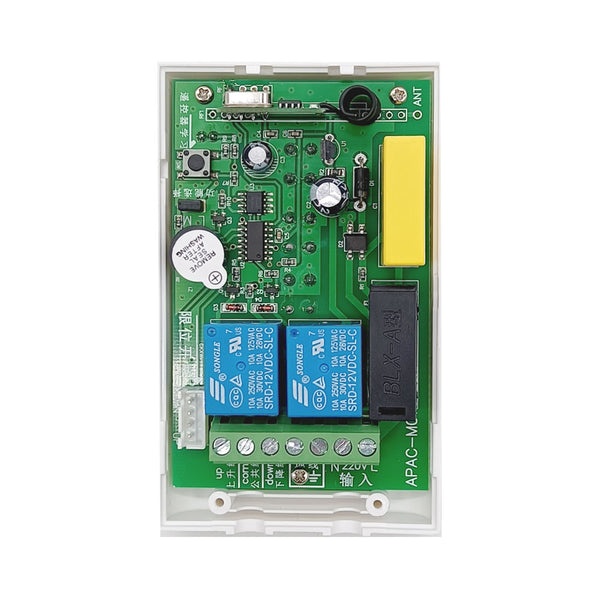

With three manual buttons: You can control the motor by manual buttons.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the motor.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

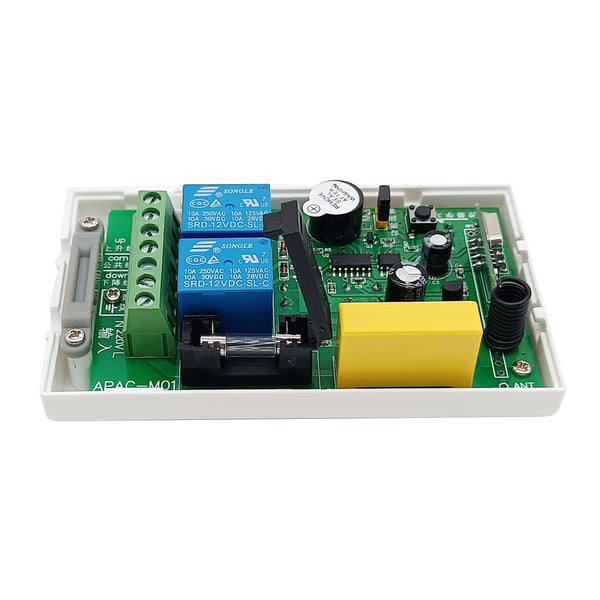

Receiver Parameters:
Model: S1FC-AC
Operating Voltage: 110~240VAC (110V/120V/220V/240V)
Output Voltage: 110~240VAC (110V/120V/220V/240V) , the output voltage is the same as input voltage.
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with an AC motor
Quiescent Current: ≤8mA
Rated Current: 5A, so motor's maximum starting current cannot exceed 5A.
Suitable Wires for Connecting Terminals: 22-14 AWG
2 Selectable Working Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C

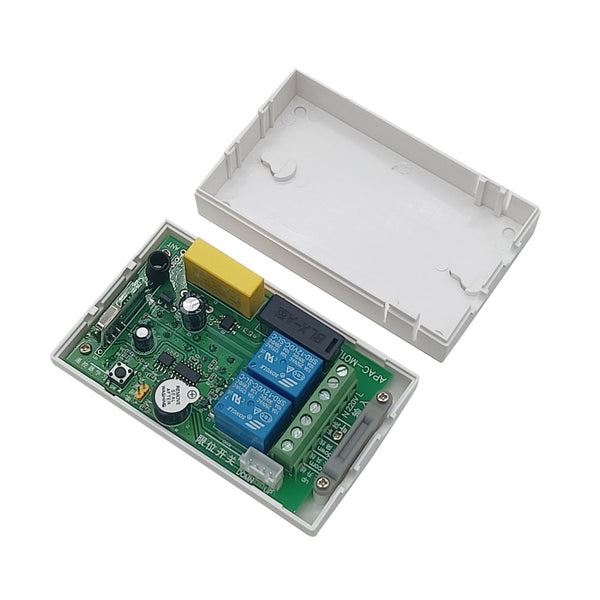

Case Size: 100 x 60 x 30 mm (4.0 x 2.4 x 1.2 inches)

Matching Transmitters:
This radio receiver can work with different RF transmitters.
When you set the receiver in momentary mode, it should work with two button transmitters, such as model C-2-2 (100 Meter)CV-2-2 (500 Meter), or CB-2 (1000 Meter) etc.
When you set the receiver in Interlocking mode, it should work with three/four button transmitters, such as model C-3-2 (100 Meter), CA-3 (200 meters), CV-4-2 (500 Meter), or CB-3-2 (1000 Meter) etc.

Working Range:
With a transmitter (such as CA-3) to form a complete set, the maximum working distance can reach 200M in an open ground.
The maximum working distance is a theoretical data; it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

Setting different control modes:
1) Setting Interlocking mode: Do not short two pins.
The operation by the transmitter, such as CA-3:
Press the button ▲ on the transmitter: Motor rotates in positive direction.
Press the button ▼ on the transmitter: Motor rotates in reversal direction.
Press the button ■ on the transmitter: Motor stops.

The operation by the receiver:
Press the button ▲ on the receiver: Motor rotates in positive direction.
Press the button ▼ on the receiver: Motor rotates in reversal direction.
Press the button ■ on the receiver: Motor stops.

2) Setting Momentary mode: Short two pins with a shouted cap.
The operation by the transmitter, such as CA-3:
Press and hold the button ▲ on the transmitter: Motor rotates in positive direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal direction.
Release the button ▼: Motor stops.

The operation by the receiver:
Press and hold the button ▲ on the receiver: Motor rotates in positive direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the receiver: Motor rotates in reversal direction.
Release the button ▼: Motor stops.

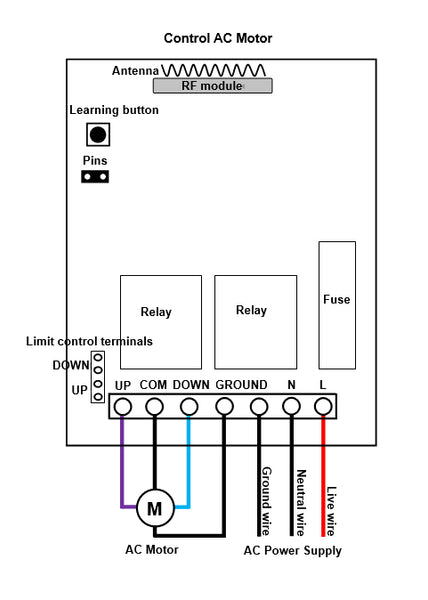

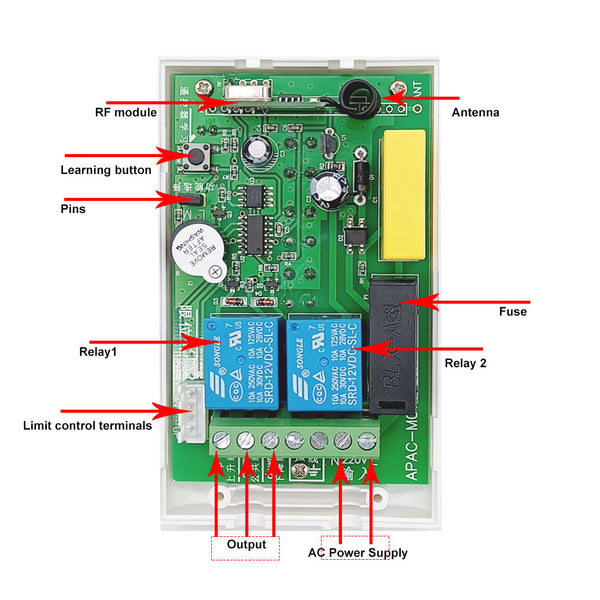

Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally open contact), such as sensors, limit switches to limit terminals, then use them to stop the motor.
For example, you can connect a normally open limit switch to two terminals <UP>, and connect another normally open limit switch to two terminals <DOWN>.
When motor rotates in positive direction, if two terminals <UP> are connected, the motor will stop automatically.
When motor rotates in reversal direction, if two terminals <DOWN> are connected, the motor will stop automatically.
