Package Include:
1 X Receiver: S1FG-AC220
2 X Transmitter: XB-4L
1 X User manual
Features:
Application: It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and equipments with AC tubular motors, it can remote control AC tubular motor to rotate in the positive or reversal direction.
Wireless control, easy to install.
You can rotate a tubular motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
The RF wireless signal can pass through walls, floors and doors.
With reverse power protection and over current protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

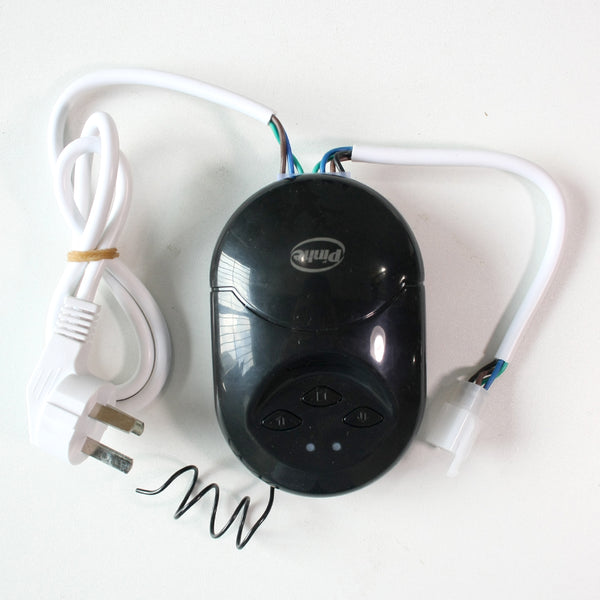

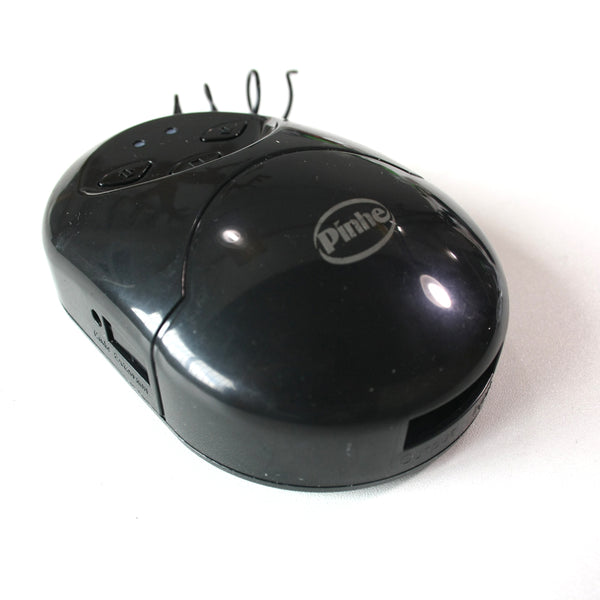

Receiver Parameters:
Model No.: S1FG-AC220
Power Supply (Operating Voltage): AC 220~240V
Output: AC 220V / 2A
Working Frequency: 433MHz
Automatic stop time: 120 seconds, motor will stop automatically after 120 seconds of rotation.
Channel: 1CH, can work with a AC tubular motor
Static Current: ≤6mA
Maximum Working Current: 2A
Case size: 130mm x 85mm x 40mm

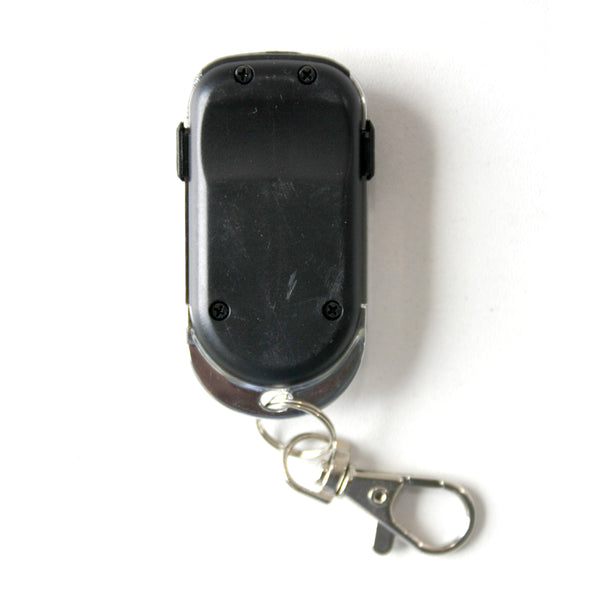

Transmitter:
Model No.: XB-4L

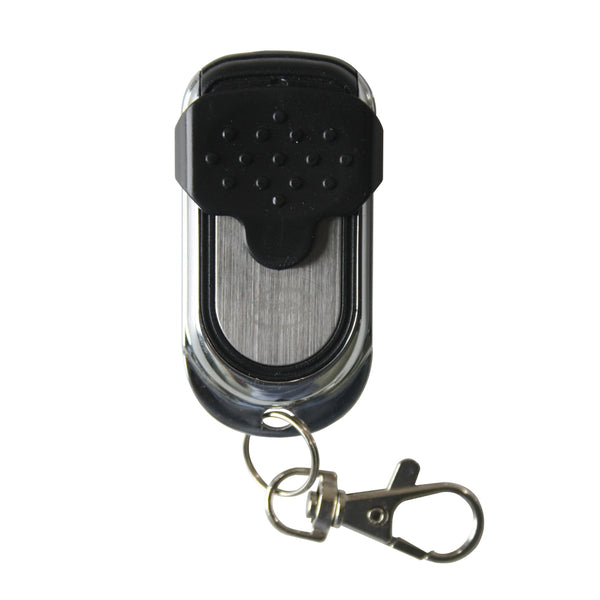

With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 4
Button Symbol: ▲, ▼, ■, ●
Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Frequency: 433Mhz
Transmitting Distance: 50m / 150ft (theoretically)
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 60mm x 32mm x 15mm
Working Range:
With a transmitter (such as XB-4L) to form a complete set, the maximum working distance can reach 50M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

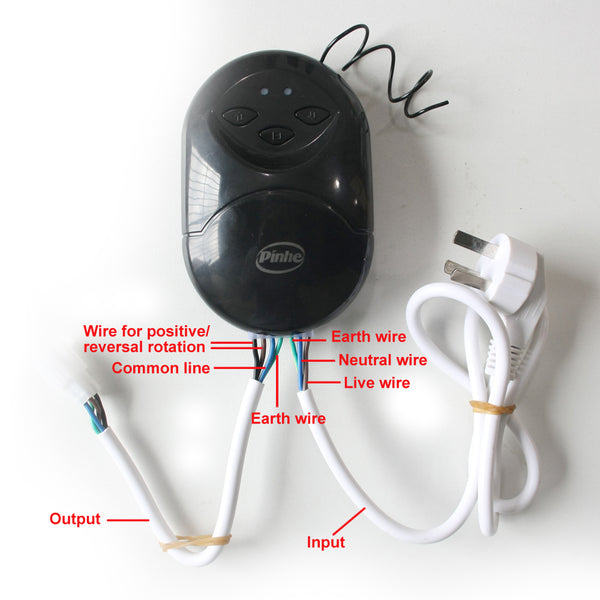

Wiring:
If you want to control a AC 220V tubular motor, do as following:
1) Connect the plug of tubular motor to the socket of receiver.
2) Connect the plug of tubular motor to AC power supply.

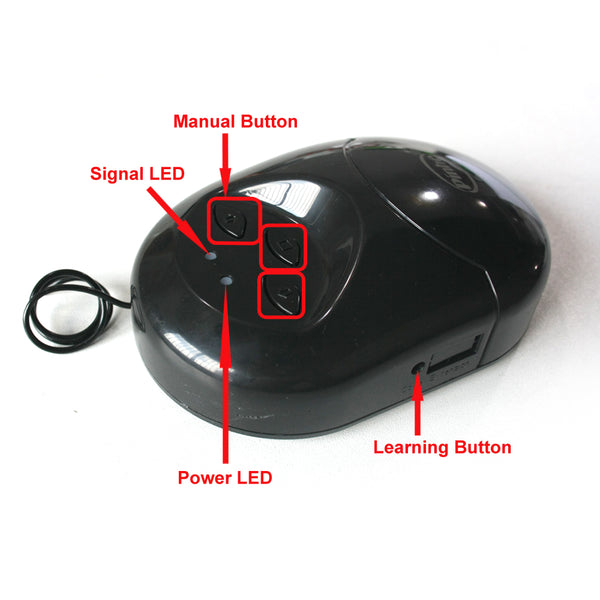

Button of receiver:
Press button ▲ of receiver: Motor rotates in positive direction.
Press button ▼ of receiver: Motor rotates in reversal direction.
Press button ■ of receiver: Motor stops & Unlock function.

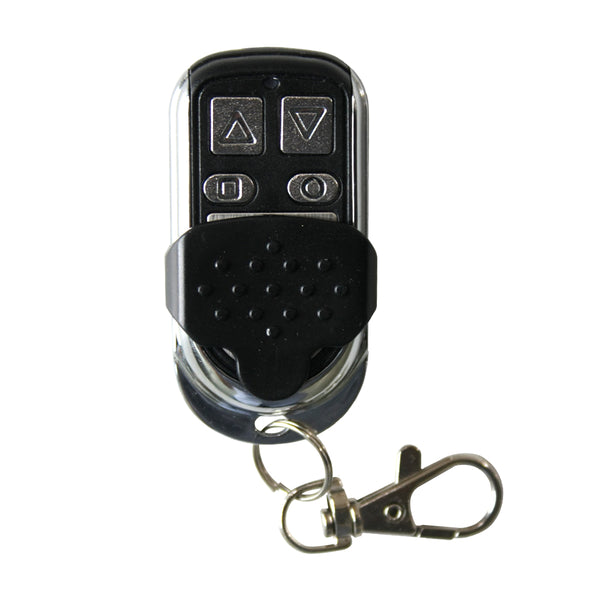

Button of transmitter (XB-4L):
Press button ▲ of transmitter: Motor rotates in positive direction.
Press button ▼ of transmitter: Motor rotates in reversal direction.
Press button ■ of transmitter: Motor stops & Unlock function.
Press button ● of transmitter: Lock the system.
Lock the system:
Press the buttons ● of transmitter to lock the system. At this time, buttons ▲ or ▼ can not operate the motor.
Press the button ■ of receiver or transmitter to unlock the system.
Chang motor rotation direction:
When the motor is stopping, press and hold button ● of transmitter for 8 seconds, red signal LED flashes 3 times then turns off, it means the setting is successful.
Automatic stop function:
Automatic stop time is 120 seconds. When you operate the motor to rotate, motor will stop automatically after 120 seconds of rotation.
