Note:
1. This product does not include a wireless switch/receiver, if you need it, please click the link of the wireless switch/receiver in the description below to select and buy.
2. This product (remote control/transmitter) must be used with our long range 5000 meters 1 channel receiver.
Package Include:
1 x Transmitter: CC-2N-2
1 x User manual
Working Principle:
Transmitter CC-2N-2 is a special remote control with normally open contact trigger. It has 3 input terminals (COM, Signal 1, Signal 2) for connecting two devices with normally open contact, such as warning host, detectors, sensors, limit switches, Programmable Logic Controllers and so on.
This transmitter can be combined with different types of long range 5000 meters receivers to form a wireless control system, and this system is used to wirelessly control the device A through the device B with normally open contact.
|
Only works with our 5000 meters wireless switch (receiver) with 1 way relay output |
||||
| Model | 0020684 S1UW-DC-ANT3 |
0020688 S1UW-AC-ANT3 |
0020090 S1PUW-DC-ANT3 |
0020091 S1PUW-AC-ANT3 |
| Operating Voltage | DC 6V 9V 12V 24V | AC 100V~240V | DC 10V~80V | AC 100V~240V |
| Output Type | Dry Relay Output (Normally Open and Normally Closed) | |||
| Maximum Load Current | 10A | 10A | 30A | 30A |
| Case size | 153 x 90 x 55 mm | |||
|
Only works with our 5000 meters wireless switch (receiver) with 1 way power output |
||||
| Model | 0020139 S1XW-DC-ANT3 |
0020145 S1XW-AC-ANT3 |
0020112 S1PXW-DC-ANT3 |
0020134 S1PXW-AC-ANT3 |
| Operating Voltage | DC 6V 9V 12V 24V | AC 100V~240V | DC 10V~80V | AC 100V~240V |
| Output Type | DC Power Output | AC Power Output | DC Power Output | AC Power Output |
| Maximum Load Current | 10A | 10A | 30A | 30A |
| Case size | 153 x 90 x 55 mm | |||
Application:

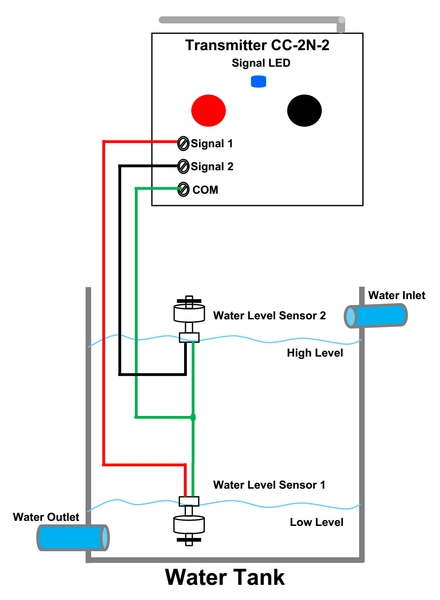

You can use this transmitter and the receiver to remotely control the AC or DC devices by the normally open contact of another device. Such as water pump automatic control system for tank (see attached diagram). You can connect two water level sensors to this transmitter, and connect the water pump to the receiver, then the pump will automatically work according to the water level.
When the water reaches the low water level, the water level sensor 1 is triggered, the transmitter automatically emits a wireless signal "ON". When the receiver receives this wireless signal, it will turn on the pump motor to pump water into the tank.
When the water reaches the high water level, the water level sensor 2 is triggered, the transmitter automatically emits a wireless signal "OFF". When the receiver receives this wireless signal, it will turn off the pump motor to stop pumping water.
Feature:
Wireless control, easy to install.
Triggered By Two Normally Open Dry Contacts.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The signal has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
Waterproof: The transmitter has waterproof case and waterproof connector, it can be installed outdoors.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Transmitter Parameters:
Model No.: CC-2N-2
With 3 trigger terminals (COM, Signal 1 and Signal 2)
Triggering method: When terminal “Signal 1” and terminal “COM” are connected, it will send wireless signal "ON". When terminal “Signal 2” and terminal “COM” are connected, it will send wireless signal "OFF".
With two buttons: red button and black button
Operating Voltage: 12V (12V Rechargeable Lithium Battery)
Static Current: 3mA
Operating Current: 50~80mA
Operating Frequency: 433.92MHz
Transmitting Distance: 5000m / 15000ft (theoretically)
It has a power switch on the side.
Unit Size: 178mm x 120mm x 60mm
Working Range:
With a receiver (such as S1PUW-AC-ANT3 or S1PUW-DC-ANT3) to form a complete set, the maximum working distance can reach 5000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage:
If you want to control the device A by two normally open contacts of the device B, do as following:
1. Connect the device A to the receiver.
2. Connect the normally open contact 1 from the device B to the transmitter's terminal “Signal 1” and “COM”
3. Connect the normally open contact 2 from the device B to the transmitter's terminal “Signal 2” and “COM”
4. When the normally open contact 1 is connected, the transmitter's terminal “Signal 1” and “COM” is also connected; the transmitter automatically emits a wireless signal "ON", which is equivalent to the function of the red button on the transmitter. When the receiver receives this wireless signal, it will activate its relay to turn on the device A.
5. When the normally open contact 2 is connected, the transmitter's terminal “Signal 2” and “COM” is also connected; the transmitter automatically emits a wireless signal "OFF", which is equivalent to the function of the black button on the transmitter. When the receiver receives this wireless signal, it will deactivate its relay to turn off the device A.
6. You also can press red button or black button on the transmitter to turn on / off the device A.
