Package Include:
1 x Dual Pedal Momentary Foot Switch
1 x User Manual
Introduction:

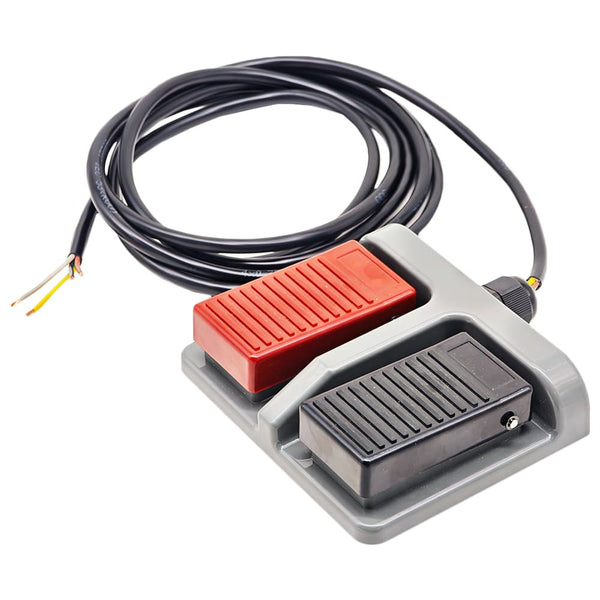

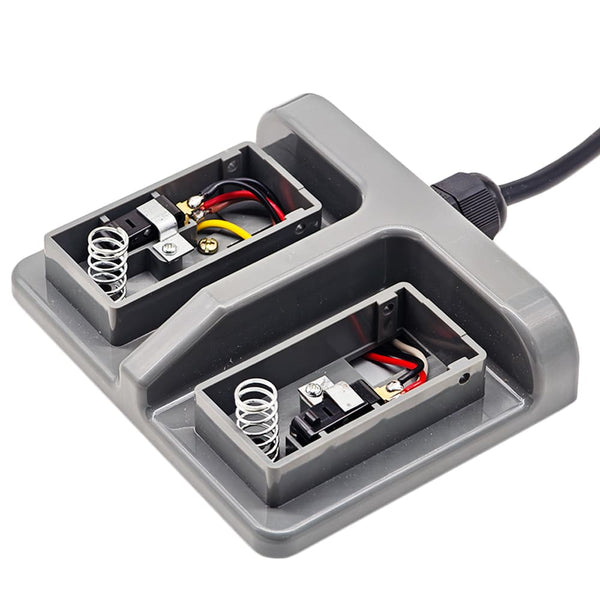

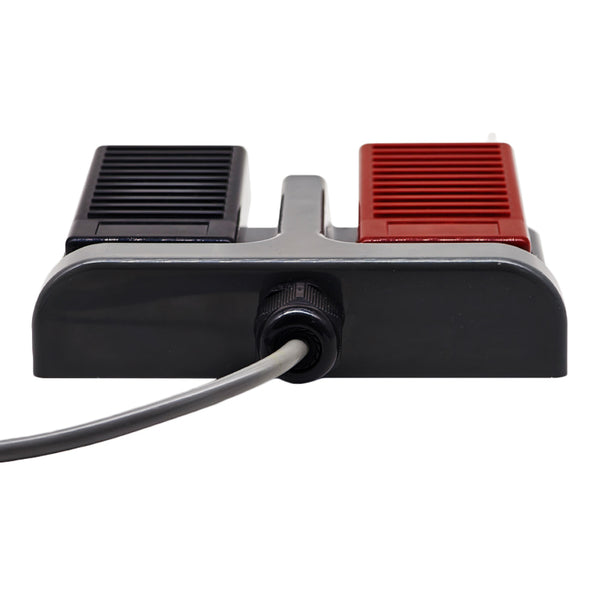

This is a dual-pedal momentary foot switch with normally open and normally closed contact output and 4-core cable.

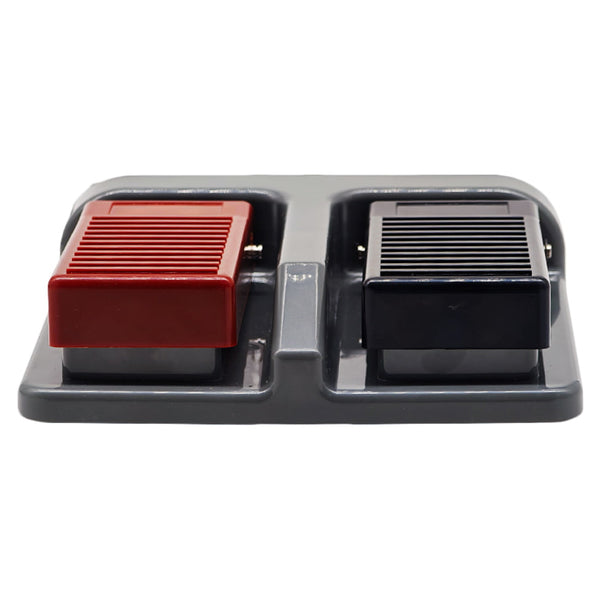

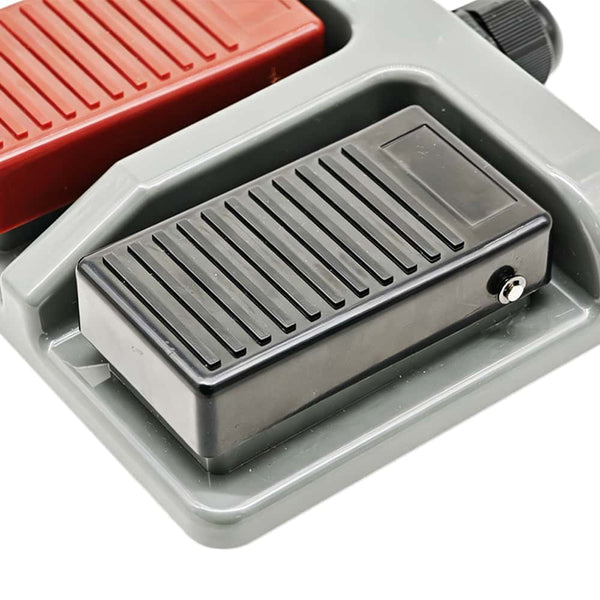

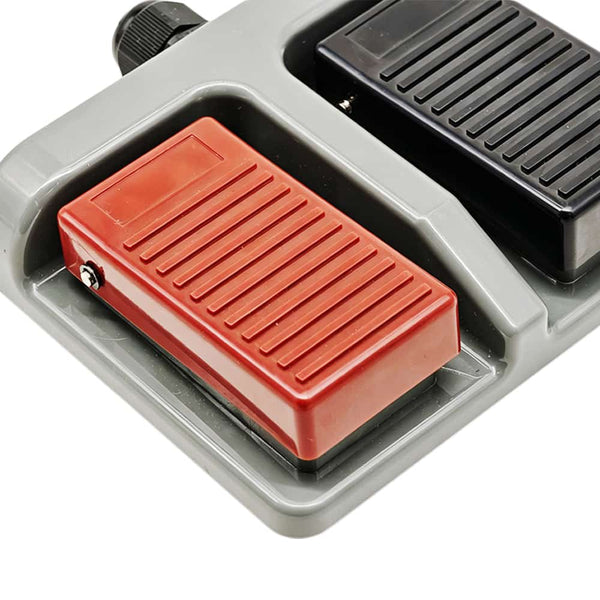

Features red and black pedals for different functions, such as "extend" and "retract" or "CW" and "CCW".

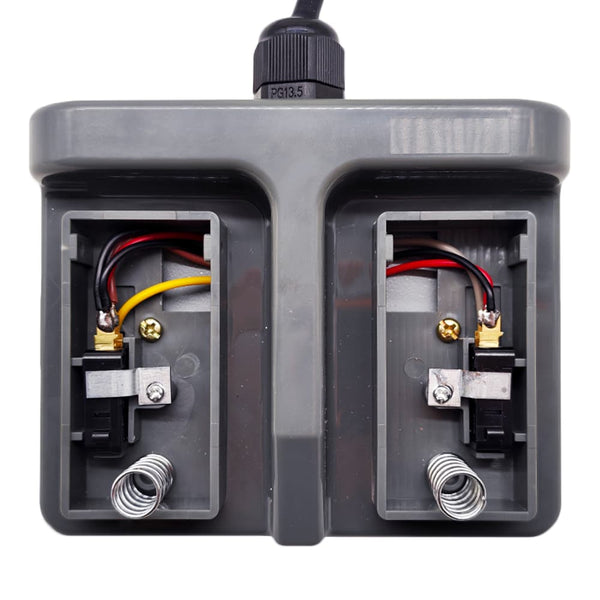

Each pedal is equipped with normally open and normally closed contacts. All contacts are connected to the cable. You can directly connect the two output cables of the dual-pedal momentary foot switch to the DC motor or electric linear actuator.
For control the clockwise (CW) and counter-clockwise (CCW) rotation of the DC motor, or the extension and retraction of the linear actuator.
Product Description:
Operating Voltage : DC 12V ~ 24V
Maximum Load Current: 6A (Note: The load's operating current must not exceed 6A)
Two Pedals: Red pedal, Black pedal
Work Mode: Momentary

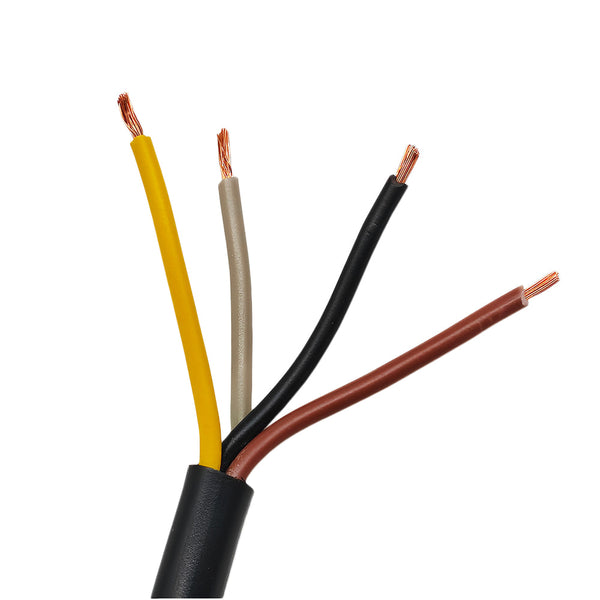

Equipped with a 300CM 0.75 square millimeter four-core cable
Contact Material: Silver Contacts
Operating Temperature: -20°C to +70°C
Internal cables are pre-wired
Size: 142 x 150 x 34 mm
Wiring:

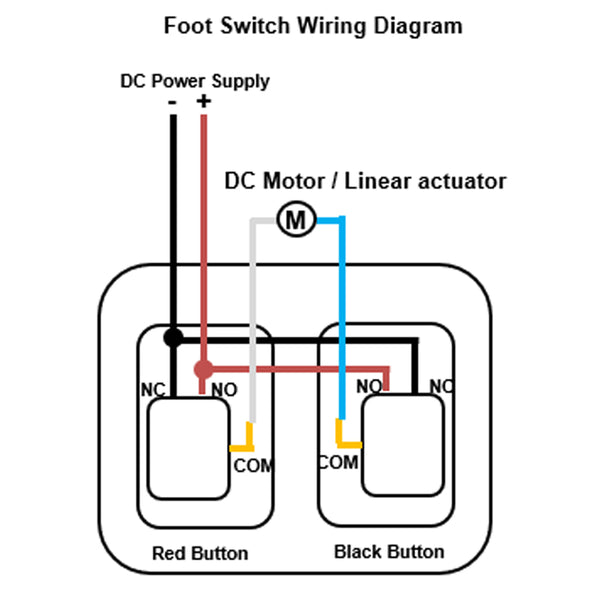

1) Connect the DC power supply to the brown and black wires of the foot switch.
2) Connect two wires of the motor or linear actuator to the remaining two wires of the foot switch. (You can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.)
Operation:
Step on and hold the red foot pedal, motor rotates in positive direction, or linear actuator extends outward; Release the pedal, motor or linear actuator stops.
Step on and hold the black foot pedal, motor rotates in reversal direction, or linear actuator inward retracts; Release the pedal, motor or linear actuator stops.
