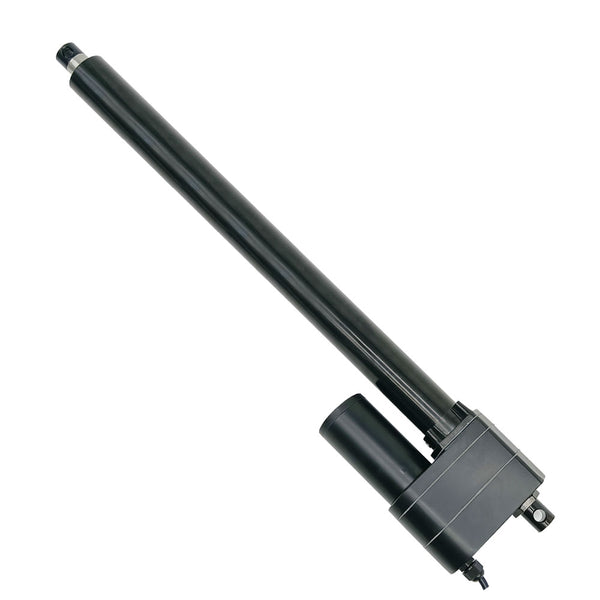

The Model 0041544 Heavy-Duty Electric Linear Actuator delivers reliable, high-thrust linear motion for demanding industrial, commercial, and DIY automation applications. Engineered with a robust all-metal gearbox, stainless steel construction, and an IP65 ingress rating, it produces up to 8000N (800 kg / 1800 lbs) of push/pull force with a 16-inch (400 mm) stroke.
Compatible Accessories
Important Note: This actuator does not include any accessories; if needed, please click the link below to select and purchase them.
- DC Power Supplies (12V / 24V)
- External Limit Switches
- Manual Control Switches
- Wireless Remote Control Switch Kits (1-Channel DC 40A)
Key Features

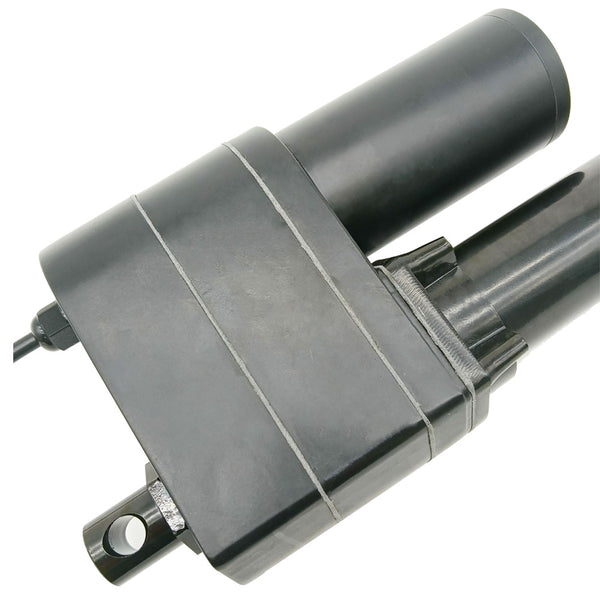

- Heavy-Duty All-Metal Drive: High-power brushed DC motor with high-strength wear-resistant steel alloy gears and robust metal housing for harsh operating environments.

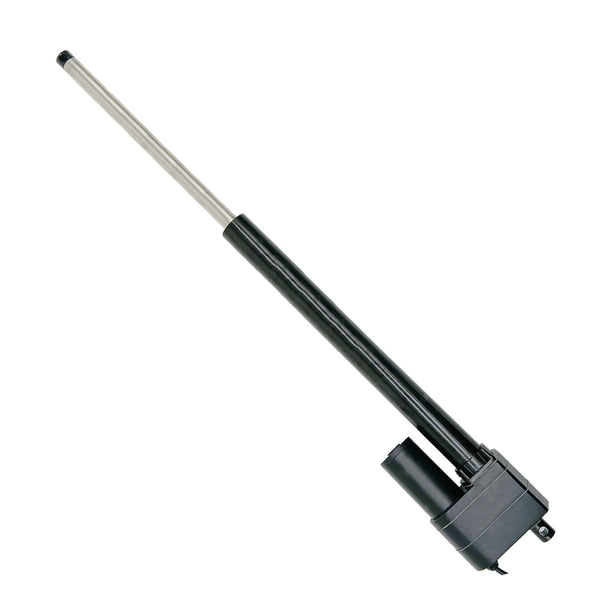

- Corrosion-Resistant Construction: Stainless steel extension rod and outer housing provide superior longevity.
- Built-In Safety Protection: Integrated mechanical clutch protects gears and motor from jams; built-in overload and thermal protection prevent overheating.
- Dual Internal Limit Switches: Automatically shuts off power when the rod reaches fully extended or fully retracted positions.
- Self-Locking Security: Securely holds load position after power is disconnected without consuming standby power.
- Weatherproof & Low Noise: IP65 waterproof and dustproof rating, quiet operation (56–66 dB), and completely maintenance-free.
- Eco-Friendly Power: An energy-efficient, clean alternative to pneumatic and hydraulic systems.
Technical Specifications
- Model: 0041544
- Stroke Length: 16 inches (400 mm)
- Operating Voltage Options: DC 12V, 24V, 36V, or 48V

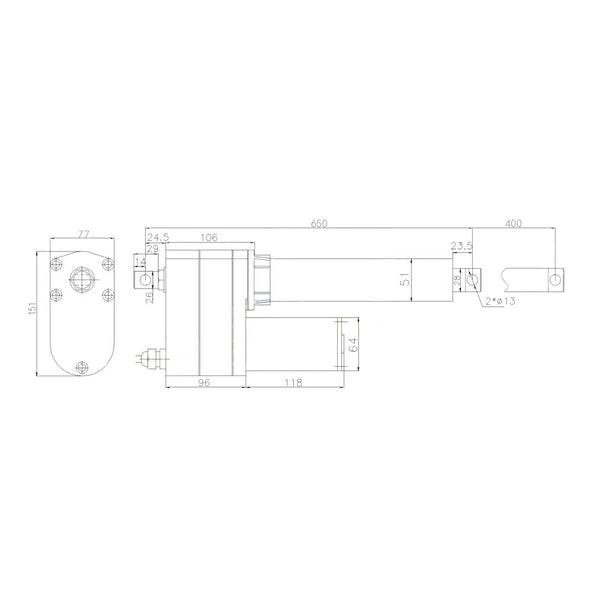

- Retracted Hole-to-Hole Center Distance: 650 mm
- Extended Hole-to-Hole Center Distance: 1050 mm

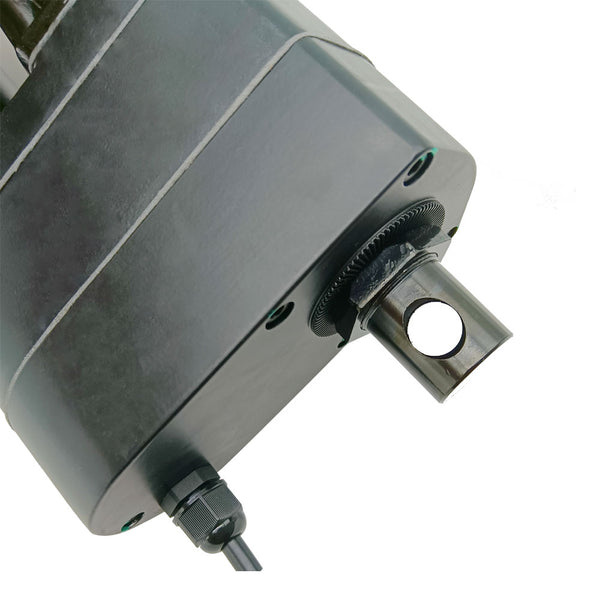

- Mounting Hole Diameter: 13 mm (0.512 in) front & rear
- Shaft Diameter: 28 mm
- No-Load Current: 2–3A (12V) / 1–1.5A (24V)
- Full-Load Current: 12–20A (12V) / 6–10A (24V)
-
Power Supply Recommendations:
- 1 Actuator: 12V 20A or 24V 10A
- 2 Actuators: 12V 50A or 24V 25A
- 3–4 Actuators: 12V 84A or 24V 42A
- Duty Cycle: 10% (max 5 minutes continuous operation within 50 minutes)
- Service Life: Approx. 35,000 cycles
- Operating Temperature: -26°C to +85°C (-15°F to 185°F)
- Noise Level: 56 dB – 66 dB
- Ingress Protection: IP65
- Cable Length: 600 ± 10% mm (24 in)
- Certifications: CE
Speed, Thrust & Self-Locking Performance
Note: Thrust ratings are measured in vertical push mode; actual speed decreases gradually under load.
| No-Load Speed | Full-Load Speed | Max Thrust (Push) | Self-Locking Force |
|---|---|---|---|
| 5 mm/s | 3.5 mm/s | 8000N / 800 kg / 1800 lbs | 8500N / 850 kg / 1900 lbs |
| 8 mm/s | 6.0 mm/s | 7000N / 700 kg / 1600 lbs | 7500N / 750 kg / 1700 lbs |
| 10 mm/s | 7.0 mm/s | 6000N / 600 kg / 1300 lbs | 6500N / 650 kg / 1500 lbs |
| 12 mm/s | 9.0 mm/s | 5000N / 500 kg / 1100 lbs | 5500N / 550 kg / 1200 lbs |
| 16 mm/s | 12.0 mm/s | 4000N / 400 kg / 880 lbs | 4500N / 450 kg / 1000 lbs |
| 20 mm/s | 15.0 mm/s | 3000N / 300 kg / 670 lbs | 3500N / 350 kg / 790 lbs |
| 28 mm/s | 20.0 mm/s | 2000N / 200 kg / 450 lbs | 2500N / 250 kg / 560 lbs |
| 50 mm/s | 38.0 mm/s | 1000N / 100 kg / 200 lbs | 1500N / 150 kg / 340 lbs |
Common Applications
Widely used for pushing, pulling, raising, and lowering equipment across various sectors:
- Architectural & Home Automation: Skylights, roof trapdoors, cellar doors, motorized windows, TV lifts, electric beds, and recliners.
- Solar Energy: Single-axis and dual-axis solar tracking arrays.
- Medical & Healthcare: Electric medical beds, treatment chairs, patient lifts, and diagnostic equipment.
- Commercial & Industrial: Lift tables, conveyor deflectors, agricultural machinery, utility vehicles, marine hatches, and robotics.
Custom Production & Order Policy:
Each linear actuator is custom-built to your exact voltage, speed, and thrust requirements. Standard production time is 3 to 7 business days prior to dispatch. As these are customized units, orders cannot be canceled, returned, or exchanged due to customer specification errors. Please verify all dimensions, stroke length, voltage, and load requirements before placing your order.
