PWM DC Speed Controller with 1CH 30A Wireless Remote Switch For 12V 24V Electric Linear Actuator (Model: 0020153)

Regular price $85.00

Shipping calculated at checkout.

Application:
It is Linear actuator speed controller with Wireless Remote Control. This Linear Actuator Speed ​​Controller can control the extension and retraction of the 12V 24V linear actuator. and the speed of the telescopic movement of linear actuator.
It can be used for cars, lifting platforms, massage couches, electric beds, medical chairs, Kitchen appliance lifts,TV Lifts,electric lift desk, electric devices, micro-devices and so on. It can push, pull, lift and descend other devices.

Features:
Wireless remote control, easy to install.
Wide operating voltage range: 12~30VDC
You can remote control the extension and retraction of the linear actuator with the transmitter from any place within a reliable distance.
You can adjustable about the linear actuator telescopic speed by Knob on the receiver or button in transmitter.
You can connect two limit switches to receiver and use them to restrict linear actuator stroke.
You can also connect Optoelectronic switch, Proximity switches, Hall switch to receiver and use them to restrict linear actuator stroke.
You can connect a low level signal external device to receiver and use this device to control the extension and retraction of the linear actuator.
With reverse power protection and over current protection.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use a 6-bit code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:

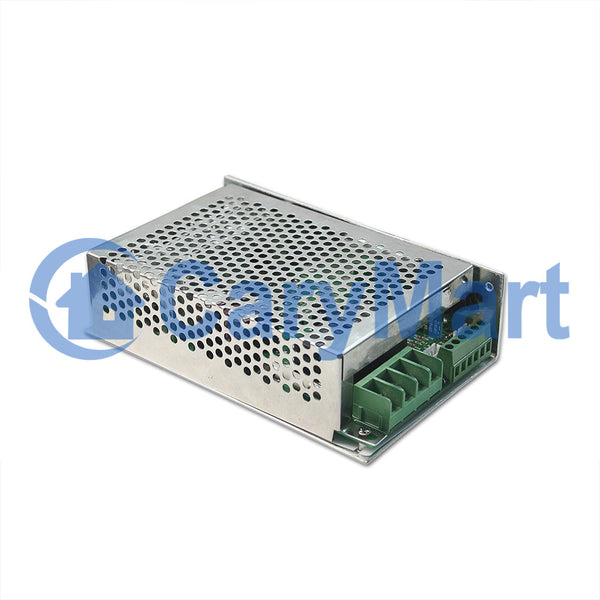

Model No: S1FB-DC
Operating Voltage: DC12V~30V
Working Frequency: 433.92 MHz
The Maximum Instantaneous Current of Starting Motor: 30A
Internal fuse: 30A
Wire range for the terminals: 22-12 AWG
Channel: 1 CH, can work with 1 DC electric linear actuator
Operating Temperature: -20 ° C to +70 ° C
Case size: 160mm x 100mm x 42mm
Only work transmitters with 6 bit fixed code

Transmitter Parameters:

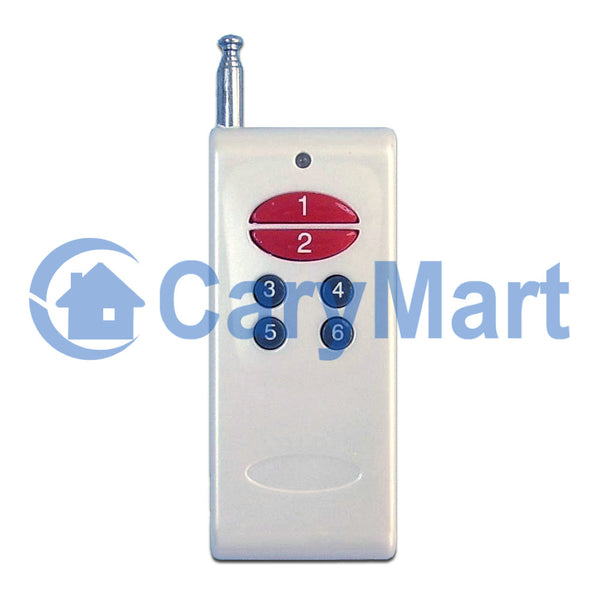

Model No.: CP-6

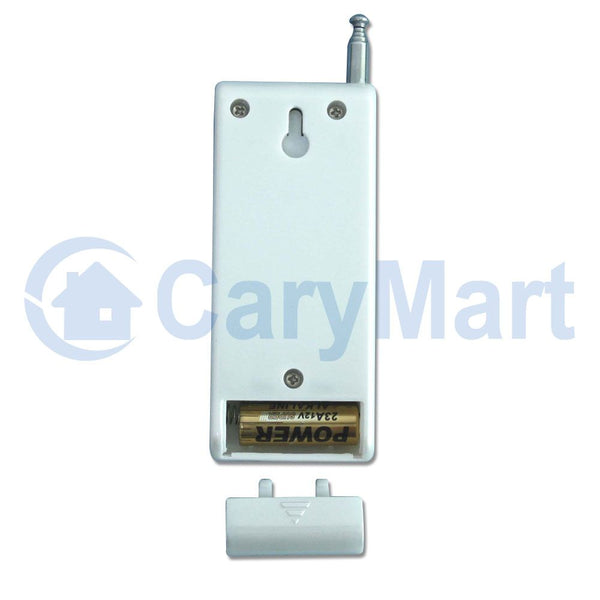

Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6
Operating Frequency: 433.92MHz
Modulation Mode: ASK
Encode: Fixed code by soldering
Remote Control Distance: 500m / 1500ft (theoretically)
Unit size: 85mm x 36mm x 16mm

Usage:
Operation (with transmitter CP-6):
Connect power supply, the two LED flashes slowly. When the motor stop rotating, LED (D3) flashes once per second.
Press button 1: LED (D3) will on, LED (D4) will off, linear actuator extends outward.
Press button 2: LED (D4) will on, LED (D3) will off, linear actuator retracts inward.
Press button 3: Linear actuator stop telescoping, LED (D4) will off, LED (D3) flashes slowly.
Press button 4: Linear actuator telescopic speed will speed up.
Button 5 is useless.
Press button 6: Linear actuator telescopic speed will slow down.

Speed adjustment:
You can twist “Adjustable potentiometer” to adjust the speed of linear actuator telescopic. Twist clockwise, linear actuator telescopic speed will speed up; Twist anti-clockwise, linear actuator telescopic speed will slow down.

Signal input:
Connect one external device with low voltage output signal to terminal “Signal -“, “Signal input 1” and terminal “Signal -“ ,“Signal input 2”, the external device’s output signal can control the extension and retraction of the linear actuator.
When the low voltage external device output signal to terminal “Signal -“, “Signal input 1”, linear actuator extends outward.
When the low voltage external device output signal to terminal “Signal -“ ,“Signal input 2”, linear actuator retracts inward.

Restrictive function:
1) You can connect two limit switches (Normally open type) to terminals “Sensor 1-“, “Limit input 1”, and terminals “Sensor 2-“, “Limit input 2”to restrict linear actuator stroke.
When linear actuator extends outward, if you activate limit switch “S1“, linear actuator will stop extension automatically.
when linear actuator retracts inward, if you activate limit switch “S2“, linear actuator will stop retraction automatically.

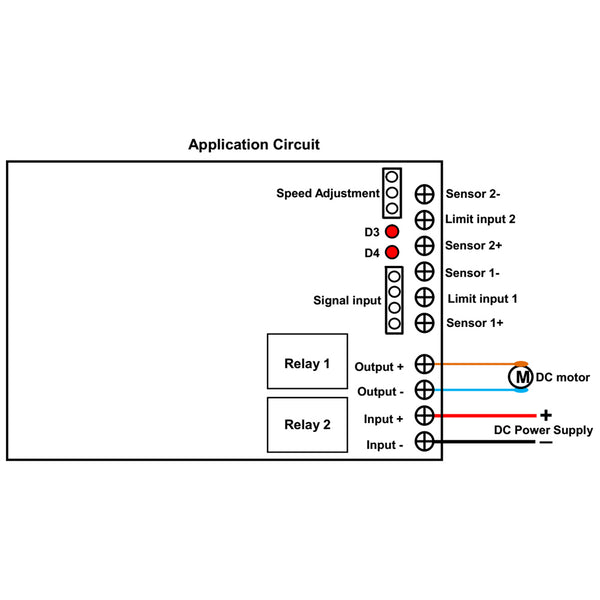

You can connect according to below picture:

2) You can also connect optoelectronic switch, proximity switch, hall switch to terminals “Sensor 1-“, “Limit input 1”, “Sensor 1+”, and terminals “Sensor 2-“, “Limit input 2”, “Sensor 2+”to restrict linear actuator stroke.
When linear actuator extends outward, if you activate switch “S1“, linear actuator will stop extension automatically.
when linear actuator retracts inward, if you activate switch “S2“, linear actuator will stop retraction automatically.
You can connect optoelectronic switch, proximity switch, hall switch according to below picture:
Package Include:
1 x Receiver: S1FB-DC
1 x transmitter: CP-6
1 x User manual
