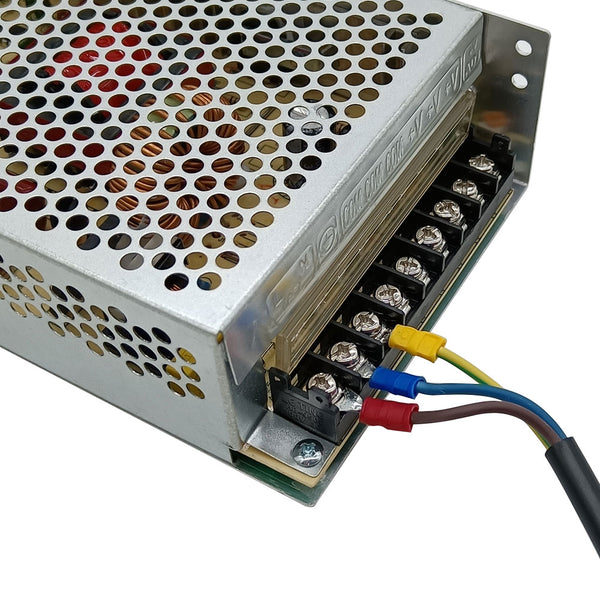

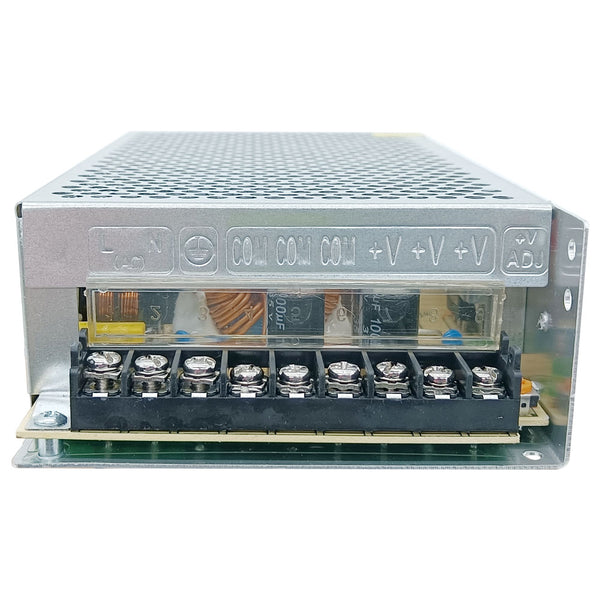

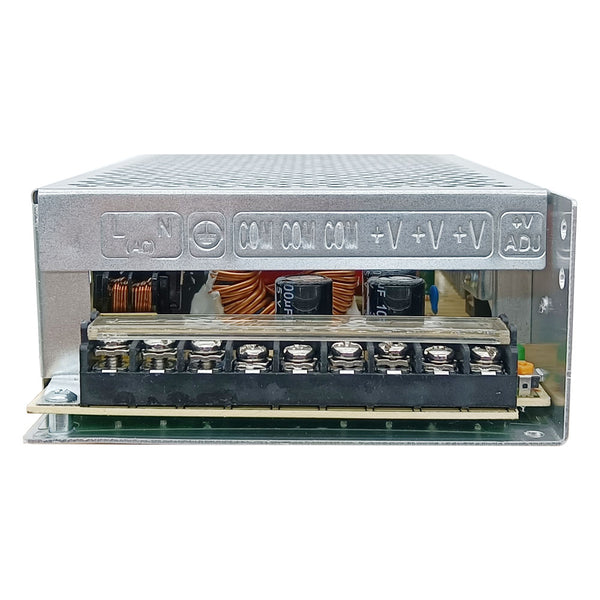

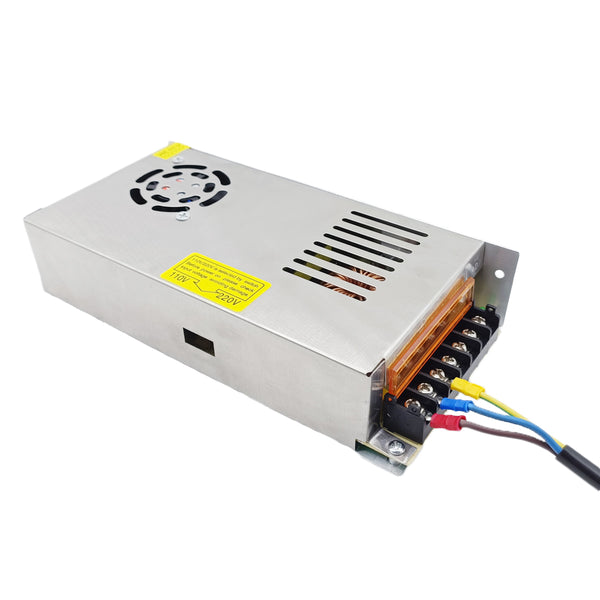

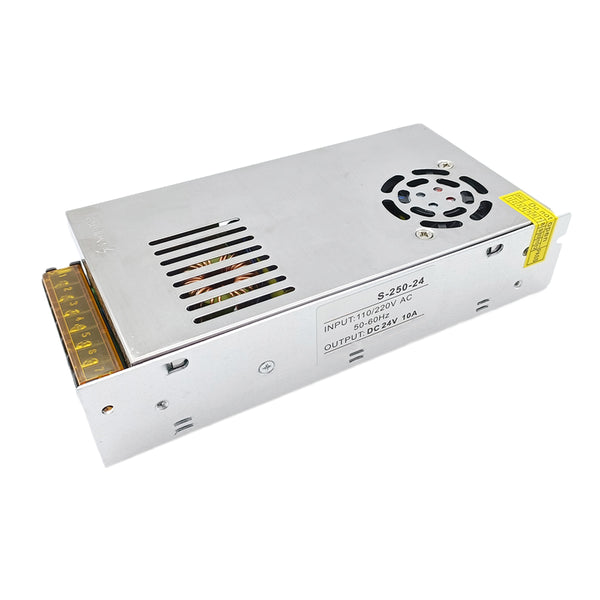

The Model 0010140 is an industrial-grade DC 24V 10A 240W regulated switching power supply engineered for high efficiency, durability, and stable DC power delivery. Featuring a selectable 110V/220V AC universal input and PWM regulation, it provides reliable voltage output for electric linear actuators, motorized window openers, LED lighting systems, DC motors, and automation equipment.
Key Features

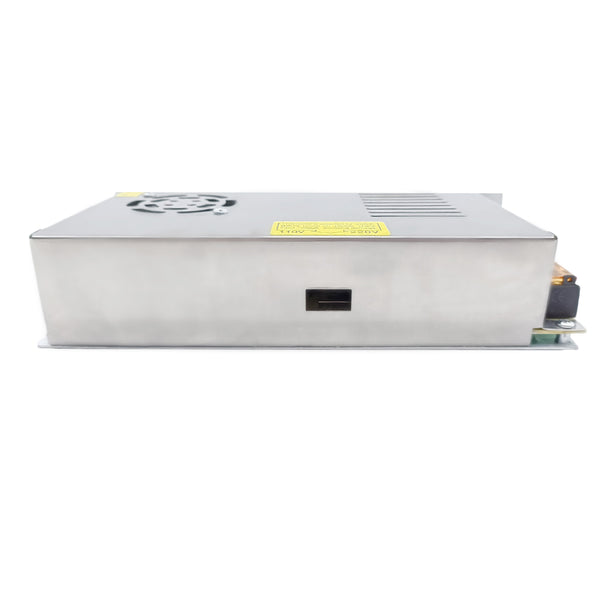

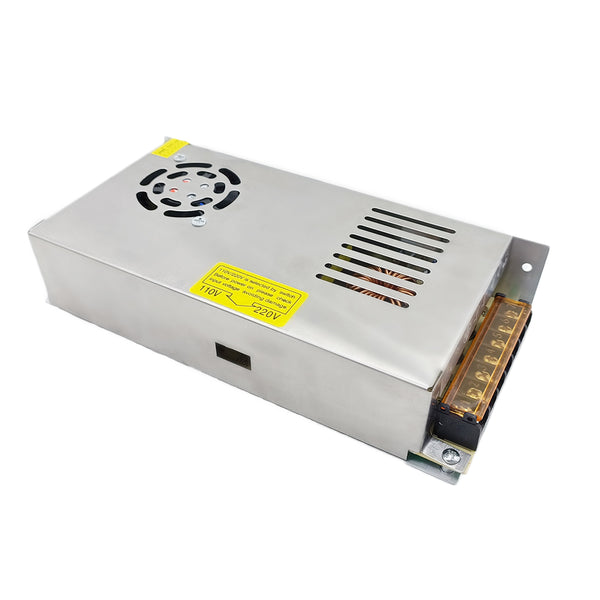

- Selectable AC Input: Universal 110V/220V AC input selectable via onboard slide switch (100–120V AC / 200–240V AC).

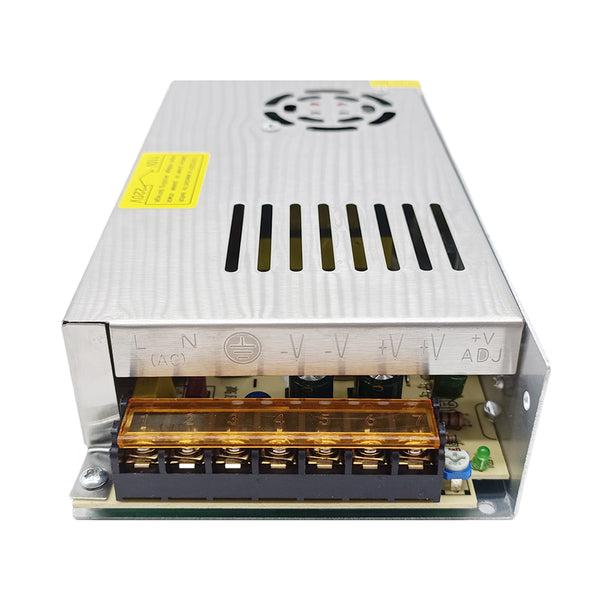

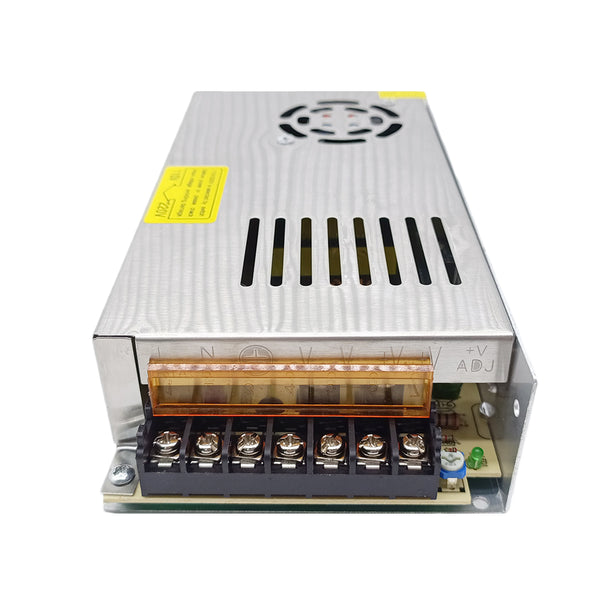

- Adjustable DC Output: Provides stable DC 24V output with a ±10% fine-tuning voltage adjustment potentiometer.
- Comprehensive Safety Protection: Built-in protection against short circuit, overload (110%–150%), and over-voltage (27.6V–32.4V) with automatic recovery.
- Low Noise & EMI Suppression: Integrated EMI filter ensures minimal ripple noise, low operating temperature, and high reliability.
- 100% Full-Load Burn-in Tested: Rigorously tested under full load conditions to guarantee lasting industrial performance.
- LED Status Indicator: Front-panel LED clearly indicates power-on status.
Technical Specifications

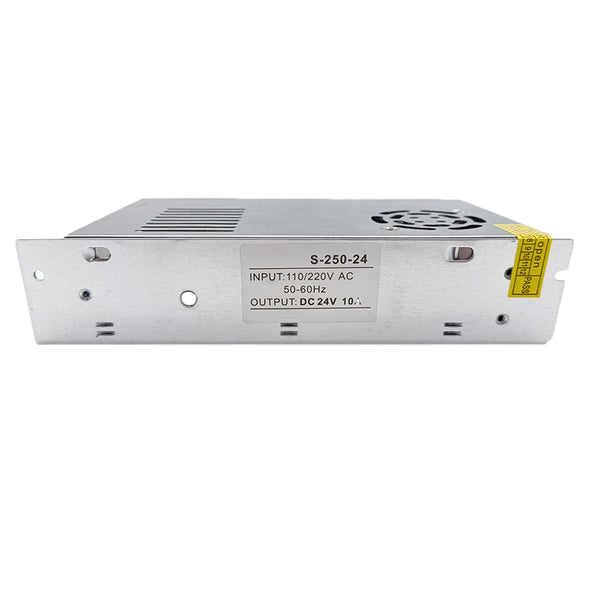

- Model: 0010140
- Input Voltage: 100–120V AC / 200–240V AC (Selectable by switch)
- Input Frequency: 50/60 Hz
- Output Voltage: DC 24V
- Voltage Adjustment Range: ±10% (approx. 21.6V–26.4V DC)
- Rated Output Current: 10A
- Rated Output Power: 240W
- Overload Protection: 110%–150% rated output power (auto-recovery)
- Over-Voltage Protection: 27.6V–32.4V
- Operating Temperature: -10°C to +60°C (14°F to 140°F)

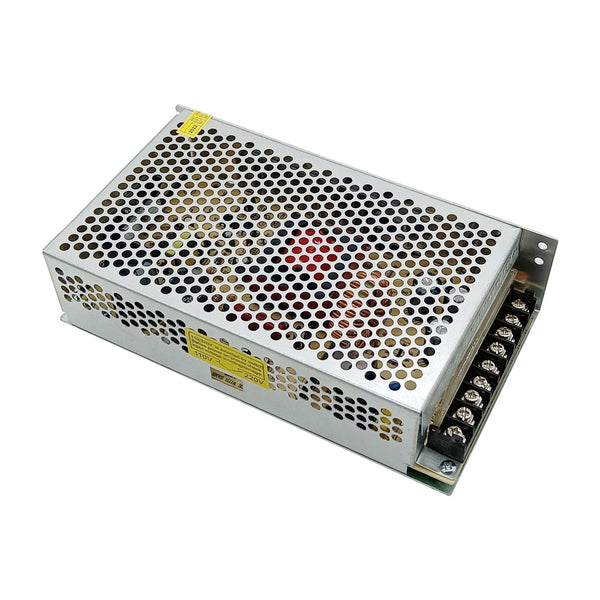

- Cooling: Free air convection with ventilated metal mesh enclosure
- Dimensions: 200 x 110 x 50 mm (7.9 x 4.3 x 2.0 inches)
Applications
- DC 24V electric linear actuators and single-chain motorized window openers
- Industrial automation controls, PLCs, and 24V relays/contactors
- 24V DC brush and brushless motors, pumps, and solenoid valves
- Commercial LED strip lighting and architectural display fixtures
- Security monitoring, access control, and wireless RF receiver setups
