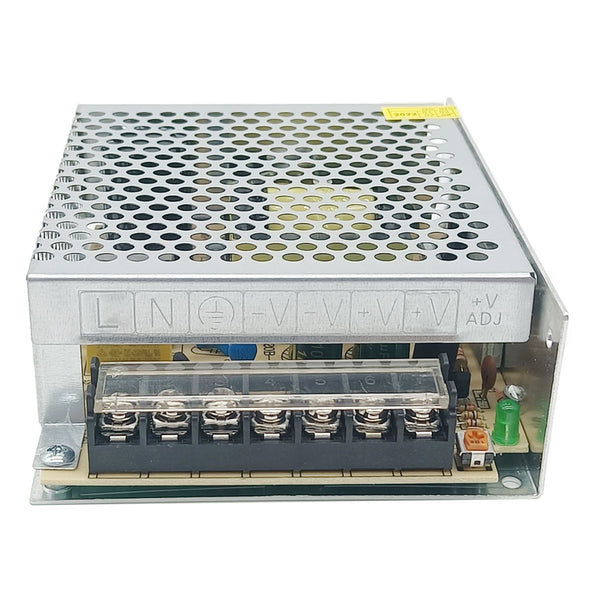

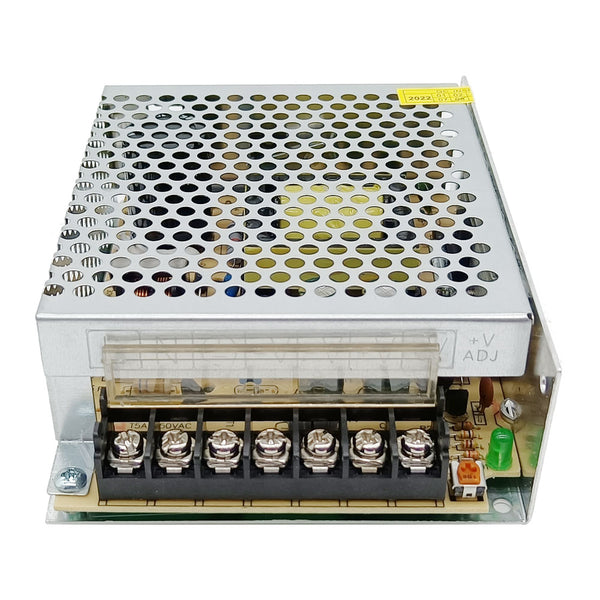

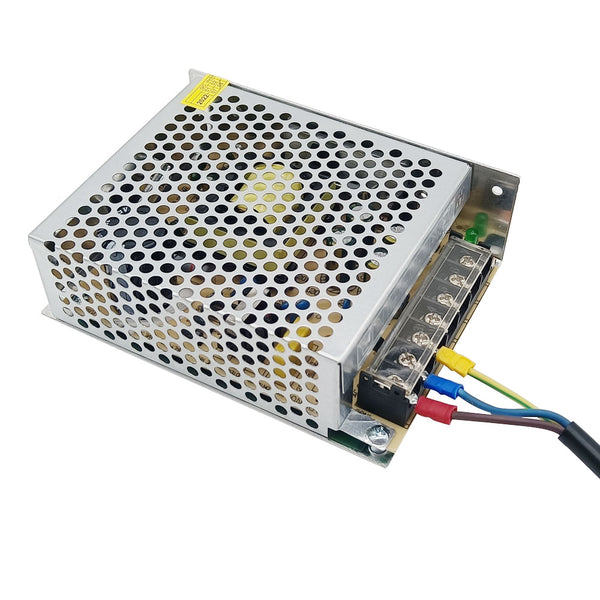

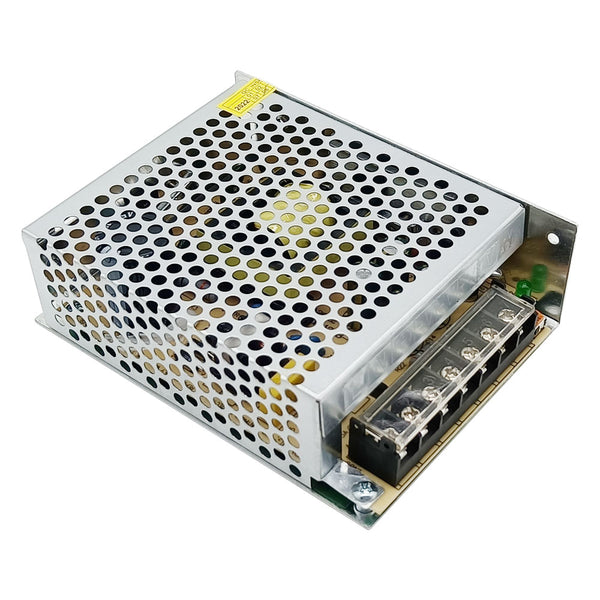

The Model 0010131 is a high-efficiency DC 12V 10A 120W regulated switching power supply engineered for industrial, commercial, and automation applications. Featuring universal AC 110V–240V input, built-in EMI filtering, and multi-protection circuitry, it delivers clean, stable, and reliable DC power to wireless controllers, RF receivers, LED lighting, DC motors, and automation equipment.
Key Features
- Universal AC Input: Operates reliably across AC 110V~240V (50/60Hz) worldwide mains voltages.
- Precision Regulation: Advanced PWM control with ±10% voltage trim adjustment for exact output tuning.
- Comprehensive Protection: Built-in short-circuit, overload (110%~150%), and over-voltage (13.8V~16.2V) protection with auto-recovery.
- Industrial Reliability: 100% full-load burn-in tested with built-in EMI filter for low noise and minimal ripple.
- Visual Power Status: Integrated LED indicator provides instant power-on confirmation.

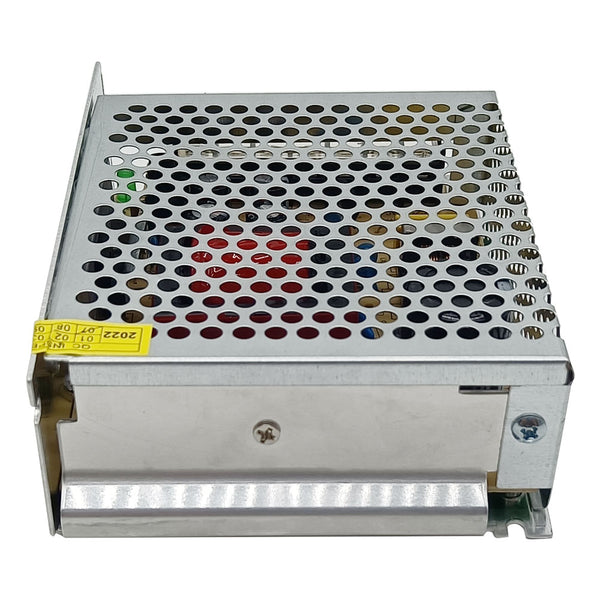

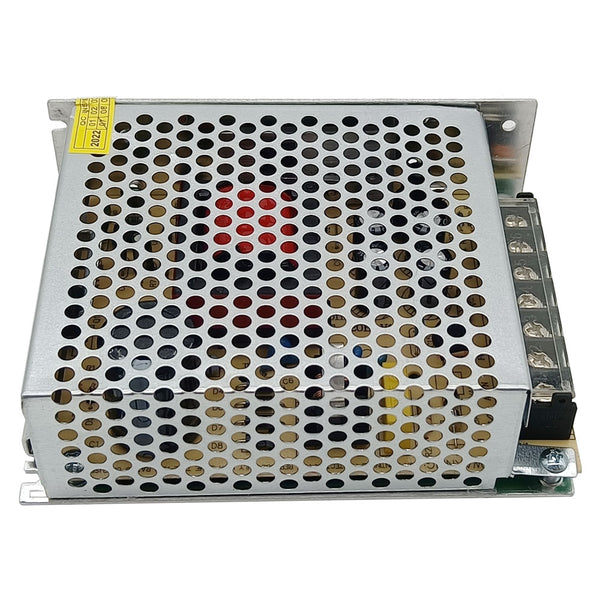

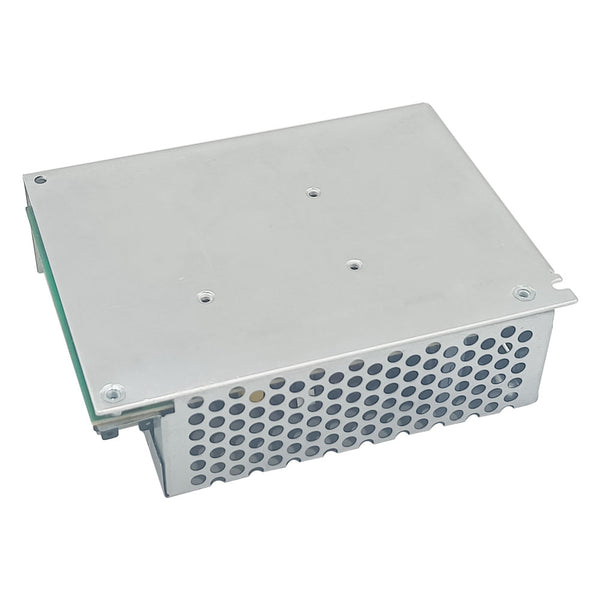

- Efficient Heat Dissipation: Perforated metal mesh enclosure ensures low running temperatures and extended service life.
Technical Specifications

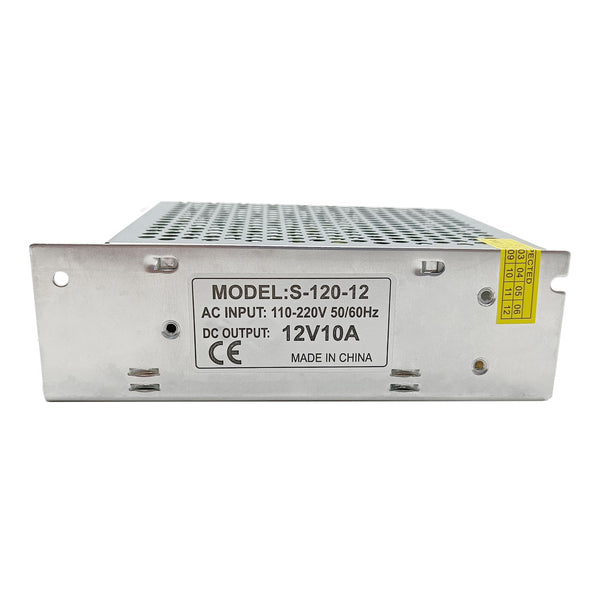

- Model: 0010131
- Input Voltage: AC 110V~240V, 50/60 Hz
- Output Voltage: DC 12V (adjustable ±10%)
- Rated Current: 10A
- Rated Power: 120W
- Overload Protection: 110%~150% rated output power
- Over-Voltage Protection: 13.8V~16.2V
- Operating Temperature: -10°C to +60°C
- Dimensions: 130 x 98 x 40 mm
Applications
- Industrial wireless RF remote control switches and relay receivers
- DC 12V linear actuators, electric window openers, and automated gates
- LED strip lighting, architectural illumination, and display boards
- CCTV security cameras, access control, and electronic locks
- Industrial automation systems, DC motors, and electronic benches
