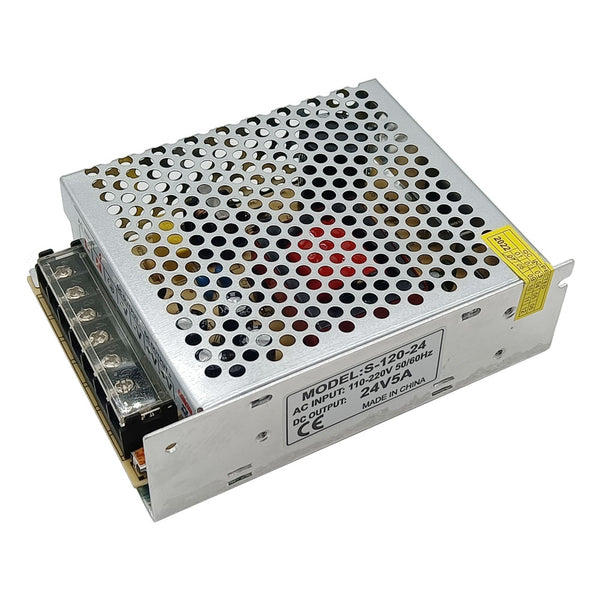

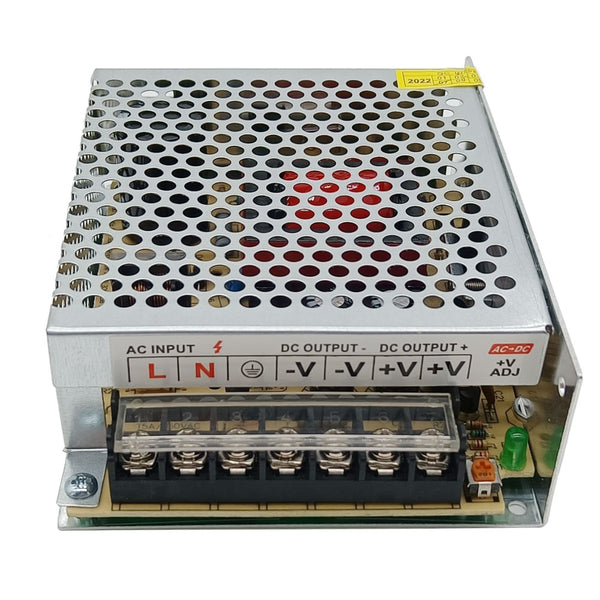

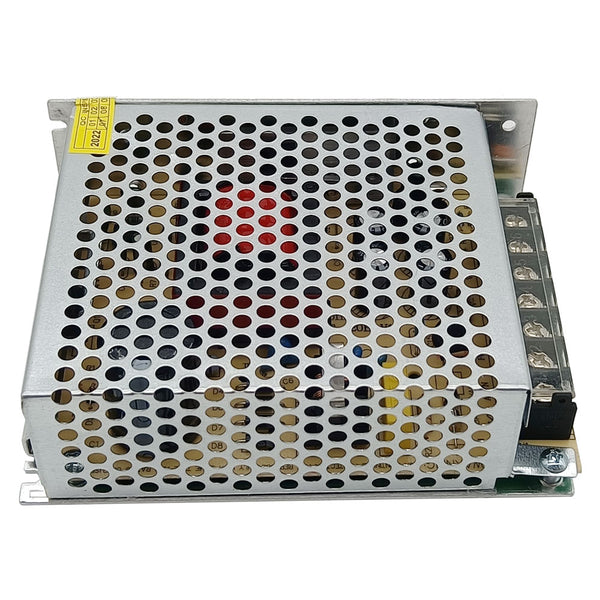

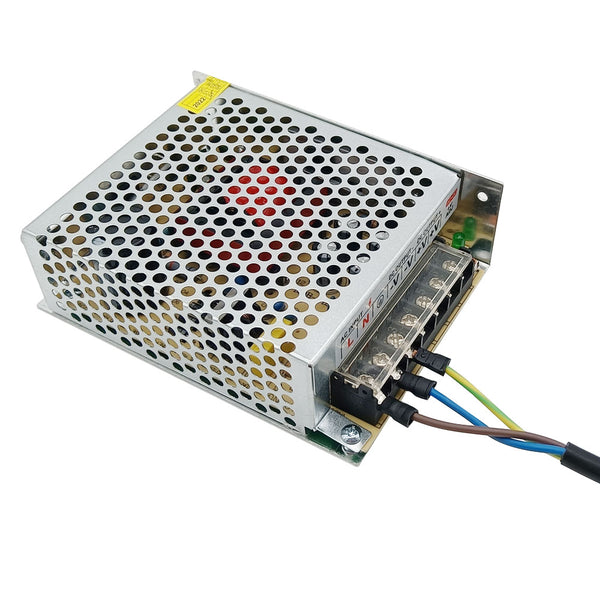

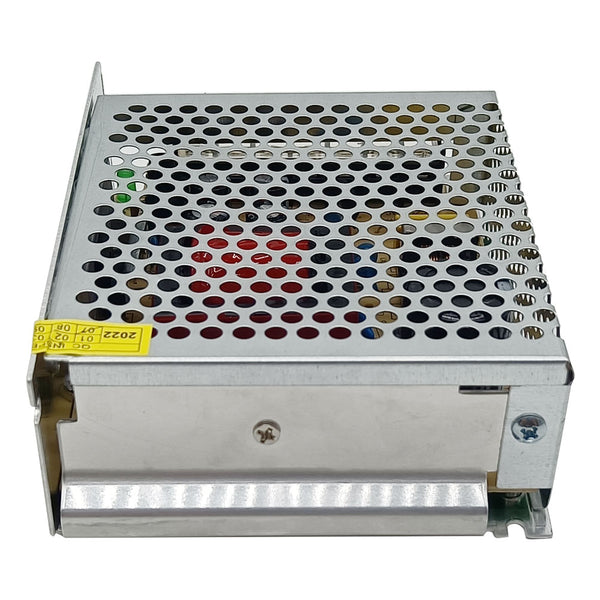

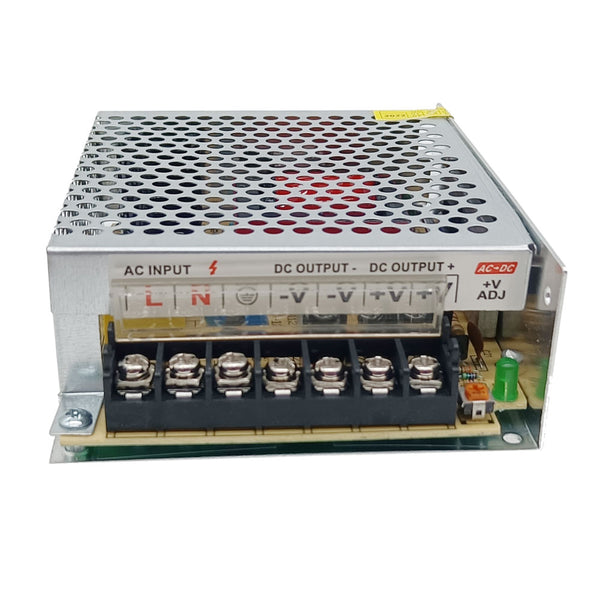

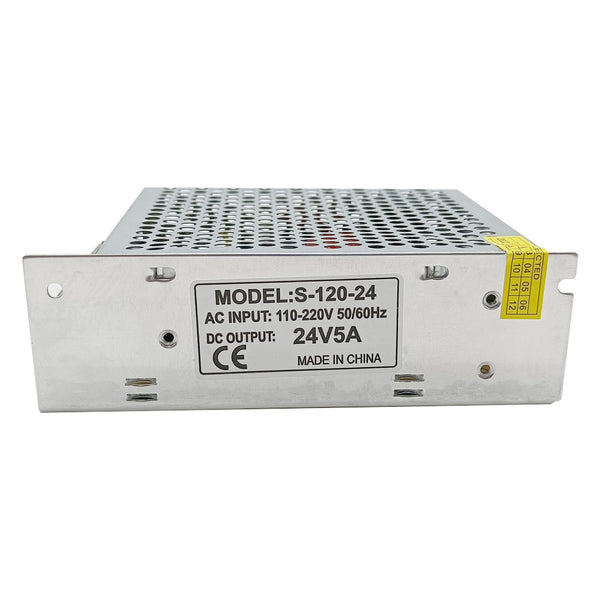

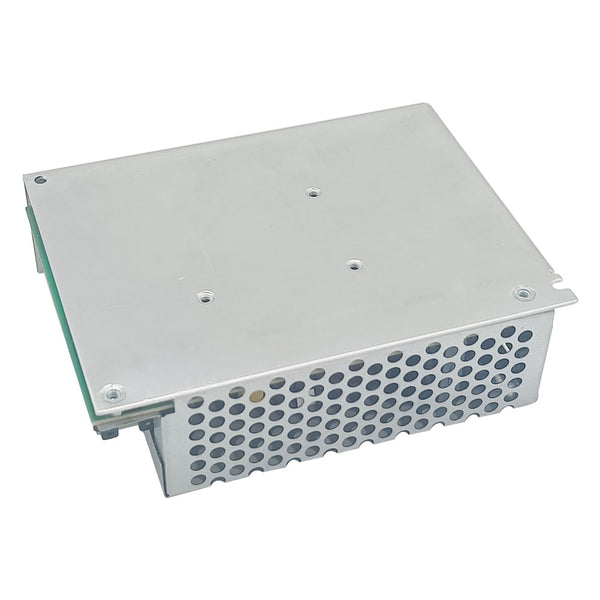

This DC 24V 5A 120W regulated switching power supply delivers stable, high-efficiency direct current power for industrial automation, motorized window actuators, LED lighting, DC motors, and electronic control systems. Engineered with a wide 110V–240V AC universal input, pulse-width modulation (PWM) regulation, and robust built-in circuit protection, it ensures reliable 24V DC power output in demanding environments.
Key Features
- Universal AC Input: Accepts 110V–240V AC (50/60Hz) universal input for flexible deployment across standard electrical grids.
- Precise Voltage Regulation: Features ±10% output voltage fine-tuning potentiometer to match specific equipment requirements.
- Comprehensive Safety Protection: Built-in short circuit, overload (110%–150%), and over-voltage (27.6V–32.4V) protection with automatic recovery.
- High Reliability: Integrated EMI filter reduces electrical noise; 100% full-load burn-in tested for durable, continuous operation.
- Efficient Heat Dissipation: Compact ventilated aluminum casing keeps operating temperatures low with low standby power consumption.
- LED Power Indicator: Visual green LED confirms operational status at a glance.
Technical Specifications
- Model: 0010143
- Input Voltage: 110V–240V AC, 50/60Hz
- Output Voltage: DC 24V (Adjustable ±10%)
- Rated Output Current: 5A
- Rated Output Power: 120W
- Overload Protection: 110%–150% rated output power (auto-recovery)
- Over-Voltage Protection: 27.6V–32.4V
- Operating Temperature: -10°C to +60°C
- Dimensions: 130 x 98 x 40 mm (5.1 x 3.9 x 1.6 inches)
Applications
- DC 24V electric chain window openers and linear actuators
- Industrial automation controllers, sensors, and relays
- 24V LED strip lighting and architectural illumination
- DC motors, solenoid valves, and access control hardware
- Communication equipment and security surveillance systems
