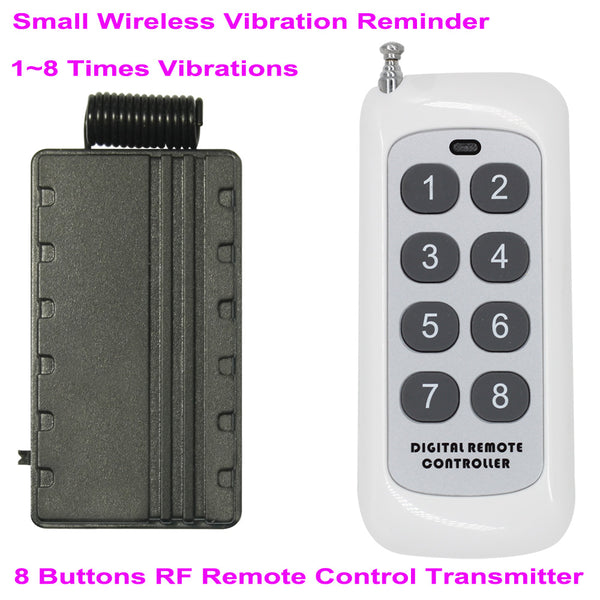

Package Include:
1 x Receiver: Z-02 (Vibrate 1~8 times)
1 x Transmitter: CP-8
1 x User manual
Application:
This is a DC 1.5V small wireless vibration reminder with RF remote control or transmitter, which can long range reminding person with hearing impairment, or pet training.
Feature:
Wireless control.
You can use the transmitter (remote control) from anywhere within a reliable distance to control the receiver (wireless vibrator) to vibrate.
The wireless signal can pass through walls, floors and doors.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Receiver (Wireless Vibrator):
Model: Z-02
Power Supply: 1 x AAA 1.5V Battery (included)
Working Mode: Multiple Vibrations
With power switch on the side.
Operating Temperature: -20°C to +70°C
Size: 51 x 30 x 14 mm

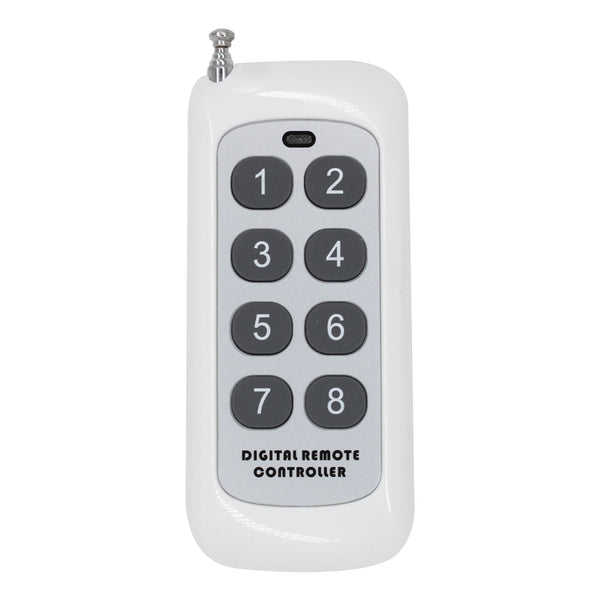

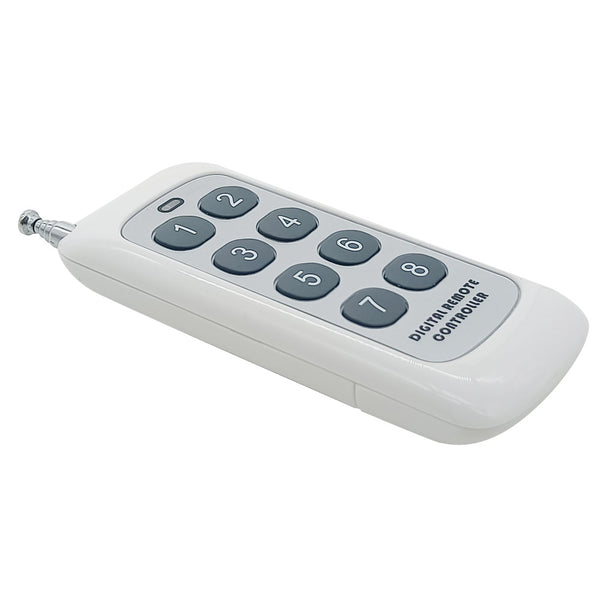

Transmitter (Remote Control):
Model No.: CP-8
Channel/Button: 8
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8

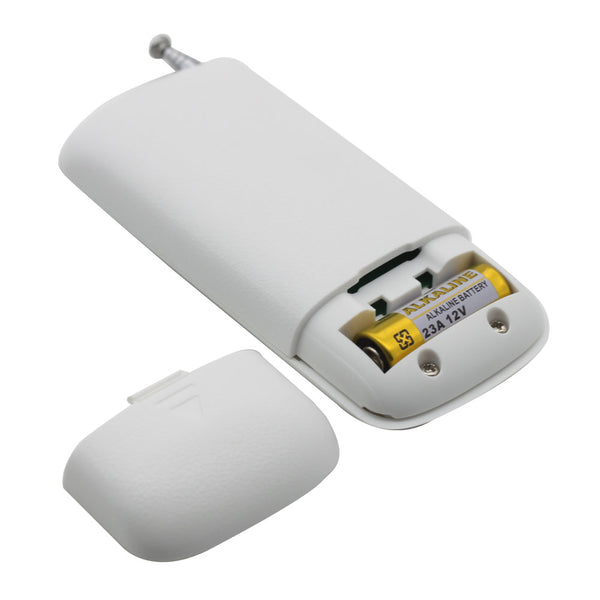

Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85 x 36 x 16 mm
Working Range:
With a transmitter (such as CP-8) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage:
Press the button 1 of the transmitter, the vibrator vibrates once.
Press the button 2 of the transmitter, the vibrator vibrates twice.
...
Press the button 7 of the transmitter, the vibrator vibrates seven times.
Press the button 8 of the transmitter, the vibrator vibrates eight times.
Note: You can set any button of the transmitter to trigger the vibrator to vibrate any number of times.
