Package Include:

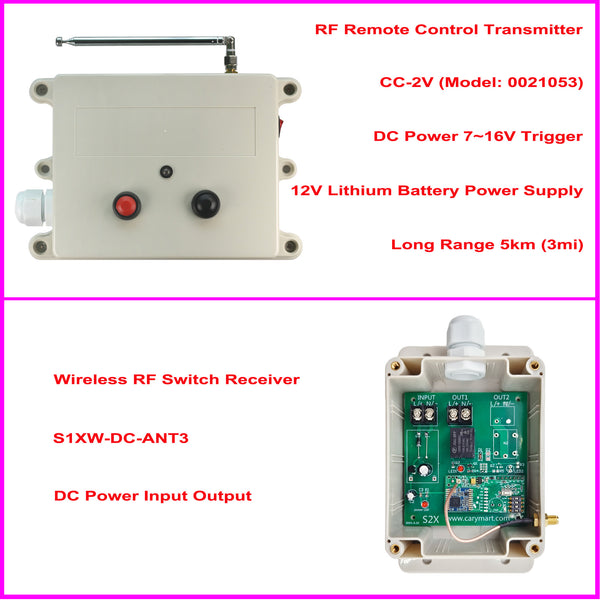

1 x Receiver: S1XW-DC-ANT3
1 x Transmitter: CC-2V
1 x User manual
Working Principle:
Transmitter CC-2V is a special remote control with DC 7~16V voltage signal trigger. It has 2 input wires for connecting an DC voltage signal from an equipment, such as warning host, detector, sensor, Programmable Logic Controller (PLC), DC siren, DC light or other DC equipments.
When the two input lines of the CC-2V transmitter input a 7~16V DC voltage signal, the transmitter automatically emit an wireless RF signal "ON". When the receiver receives this signal, the output terminals outputs DC power, thereby turning on the device connected to the receiver.
When the two input lines of the CC-2V transmitter stop inputting a 7~16V DC voltage signal, the transmitter automatically emit an wireless RF signal "OFF". When the receiver receives this signal, the output terminals stops outputting DC power, thereby turning off the device connected to the receiver.
Application:
For long range turn ON and OFF DC electrical equipment, such as lamp, lights, LED lighting, motor, fan, pump, solenoid valves, door lock, etc.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Three operating voltage versions: DC 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 9V / 12V / 24V.
With external antenna, has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter. When the transmitter receives this signal, it will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Receiver Parameters:
Model: S1XW-DC-ANT3
Operating Voltage: 9±1VDC (model S1XW-DC09), or 12±1VDC (model S1XW-DC12), or 24±2VDC (model S1XW-DC24), the operating voltage must be specified when ordering.
Output Type: DC power output, same as the input voltage
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
Channel: 1 CH
Working Modes: Interlocking
Working Frequency: 433.92 MHz
Suitable Wires for Connecting Terminals: 22-12 AWG
Operating Temperature: -20 °C ~ +70 °C
PCB size: 88 x 80 x 18 mm
Case size: 153 x 90 x 55 mm
Transmitter Parameters:
Model No.: CC-2V
With 2 input wires
Triggered by 7~16V DC voltage signal
Triggering method: When input wires get DC voltage signal, it will send wireless signal "ON". When input wires lose DC voltage signal, it will send wireless signal "OFF".
With two buttons: red button and black button
Operating Voltage: 12V (12V Rechargeable Lithium Battery)
Static Current: 3mA
Operating Current: 50~80mA
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)
It has an power switch on the side.
Unit Size: 178 x 120 x 60 mm
Working Range:
The maximum working distance can reach 5000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Wiring:
1. Connect device with 7~16V DC voltage signal output to the input wires of the transmitter CC-2V.
2. Connect the positive and negative wires of the DC power supply to respectively the receiver's input terminals "L/+" and "N/-".
3. Connect the positive and negative wires of the controlled DC device to respectively the receiver's output terminals "L/+" and "N/-".
Operation:
1. By buttons of the transmitter CC-2V:
Press the red button of the transmitter CC-2V: The output terminals of the receiver outputs DC power, and the connected device is working.
Press the black button of the transmitter CC-2V: The output terminals of the receiver stops outputting DC power, and the connected device has stopped working.
2. By input trigger input wires of the transmitter CC-2V:
When the two input lines of the CC-2V transmitter input a 7~16V DC voltage signal, the transmitter automatically emit an wireless RF signal "ON". When the receiver receives this signal, the output terminals outputs DC power, thereby turning on the device connected to the receiver.
When the two input lines of the CC-2V transmitter stop inputting a 7~16V DC voltage signal, the transmitter automatically emit an wireless RF signal "OFF". When the receiver receives this signal, the output terminals stops outputting DC power, thereby turning off the device connected to the receiver.
