Package Include:
1 x Receiver: S1PU-DC-ANT3
1 x External trigger transmitter: CK-DR
1 x User manual
Application:
This long range wireless remote control switch kit consists of a external trigger transmitter (CK-DR) and a receiver (S1PU-DC).
The dry contact output signal of one device triggers the transmitter (CK-DR) to wirelessly control another AC or DC device connected to the receiver (S1PU-DC).
Feature:
Wireless control, easy to install.

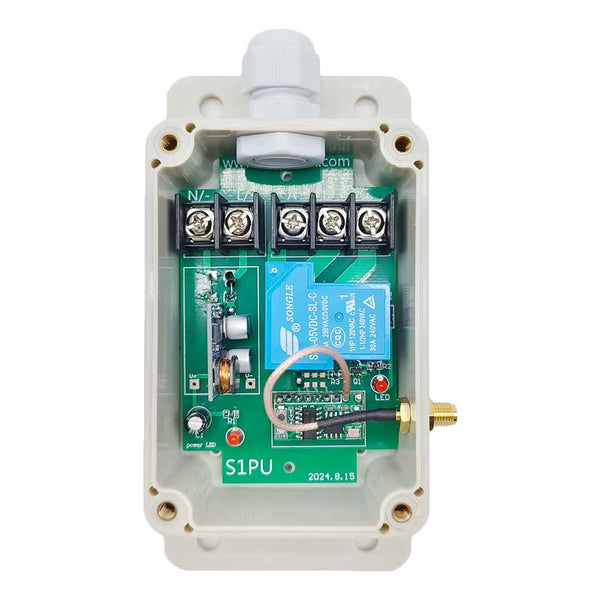

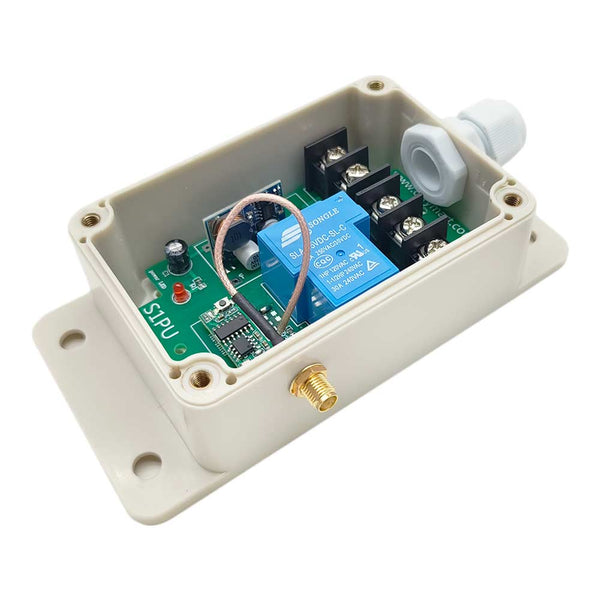

Waterproof: They have waterproof case and waterproof connector, it can be installed outdoors.
Wide voltage input: The receiver support DC 10V~80V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

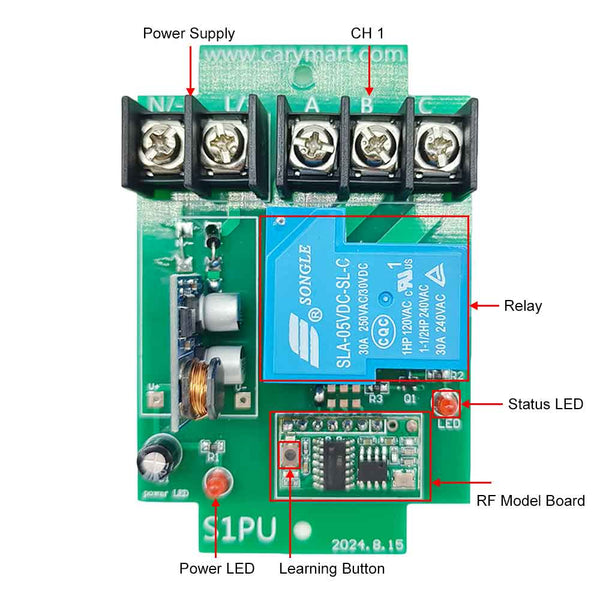

Receiver Parameters:
Model No.: S1PU-DC-ANT3
Operating Voltage: 10~80 VDC
Output Type: Dry Relays Output (Normally Open and Normally Closed)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Channel: 1 Way
Control Modes: Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A
Wire Range of Terminals: 22-12 AWG
Working Frequency: 433.92MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 90 x 59 x 18 mm
Case size: 138 x 68 x 50 mm
Transmitter Parameters:
Model: CK-DR
With two trigger lines
Operating Voltage: DC 9-12V (Built-in 6F22-9V battery or 12V power socket optional)
Triggered by connecting or disconnecting two trigger wires.
Triggering method: When two trigger wires are connected, the signal LED on the transmitter flashes immediately, and the transmitter sends a wireless signal "ON". After the transmission is completed, the signal LED goes out. When two trigger wires are disconnected, the signal LED flashes immediately, and the transmitter sends a wireless signal "OFF". After the transmission is completed, the signal LED goes out.
Operating Frequency: 433.92MHz
Encoding Chip: EV1527/SC2262
Transmission Distance: 500m / 1500ft (theoretically)
Case size: 83 x 58 x 34 mm
Transmitter Working Principle:
Transmitter CK-DR is a special remote control that is triggered by a dry contact signal. It has two trigger lines for connecting a dry contact output signal from an equipment, such as warning host, detector, sensor, limit switch, Programmable Logic Controllers and so on.
When two trigger lines are connected, it will transmit a wireless signal "ON". When two trigger lines are disconnected, it will transmit a wireless signal "OFF".

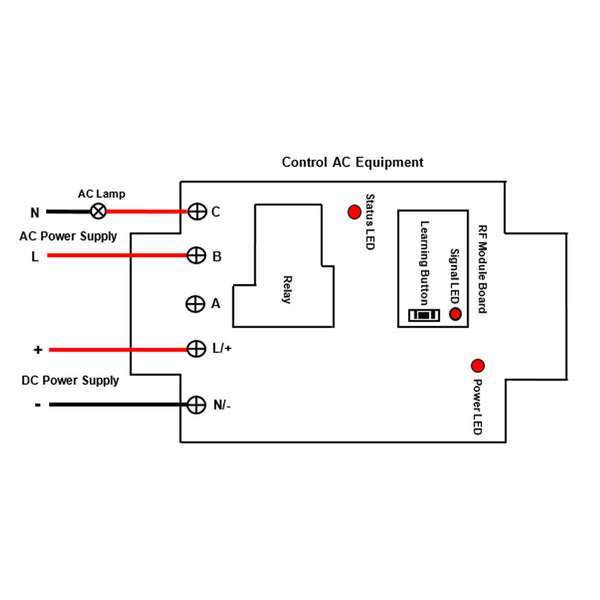

Usage:
If you want to control the second device by the first device with the dry contact, do as following:
1. Connect the second device to the receiver's output terminal.
2. Connect the dry contact of the first device to the transmitter’s two trigger wires.
3. When the first device is activated, and the dry contact is connected, the transmitter will emit a wireless signal "ON". When the receiver receives this wireless signal, it will activate its relay to turn on the second device.
4. When the first device is disactivated, and the dry contact is disconnected, the transmitter will emit a wireless signal "OFF". When the receiver receives this wireless signal, it will deactivate its relay to turn off the second device.
