Package Include:
1 x Control box
1 x Wired handle
1 x Remote control
1 x User manual
Introduction:
This is a remote control kit designed specifically for the remote operation of a single-phase asynchronous dual-capacitance (Starting Capacitor and Running Capacitor) AC motor.
Using this remote control kit, we can long range remote control the AC motor. We can use both the remote control and the wired handle to operate the forward and reverse rotation of the AC motor, which is more convenient to use.
Feature:
Wireless control, simple wiring, easy installation.
Universal power: Supports only single-phase (one live and one neutral) 220V AC power (220V~240V) used in DE, UK, FR, AU, AT, NL, NZ, ES, SG, etc.
Forward and reverse dual control.
Signal stability with anti-interference capabilities; strong signals can pass through the wall.
In open areas, it can realize 100 meters long-distance all-round remote control.
The remote uses waterproof rubber pads and IP65 grade shell, which greatly increases the waterproof, dust-proof and drop-proof performance.
High-quality imported chips, long service life.

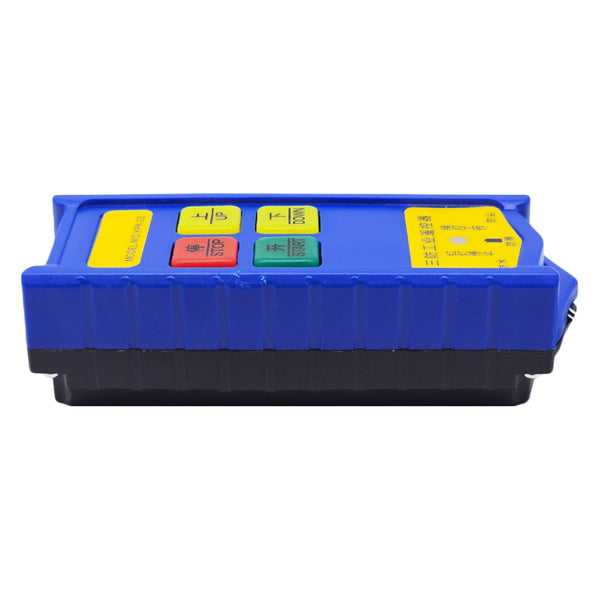

Remote control parameters:
Channel / Button: 4
Button Symbol: <START>, <STOP>, <UP>, <DOWN>
Operating Voltage: 3V (2 x AAA -1.5V battery)
Operating Current: 8mA
Operating Frequency: 433 MHz
RF Power: <10dBm
Modulation Mode: GFSK
Antenna Impedance: 50Ω
Command Response Time: 100ms
Transmitting Distance: 100 meters / 300 feet (theoretically)
Shell Material: Glass fiber reinforced nylon
Protection Rating: IP65
Operating Temperature: -20°C ~ +75°C
Unit Size: 128 x 51 x 36 mm

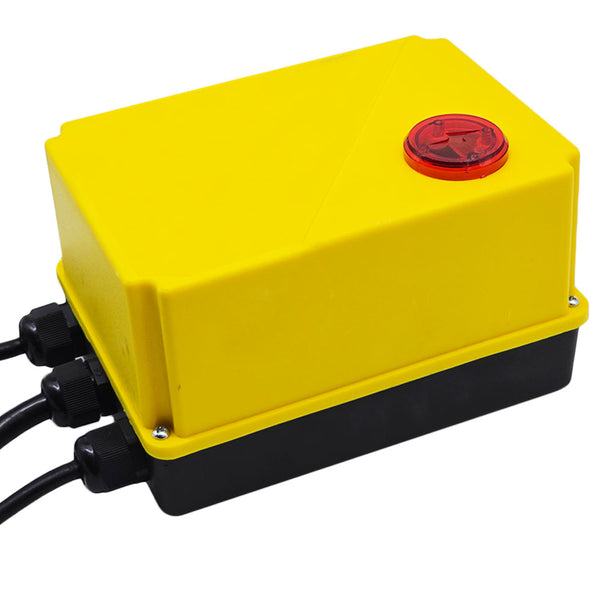

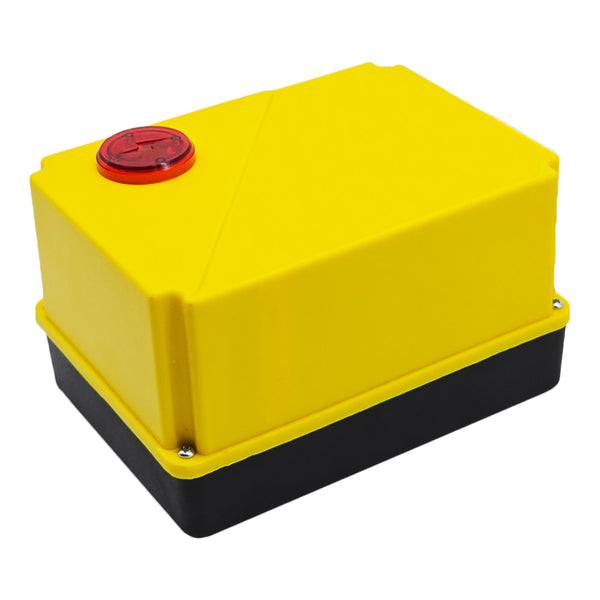

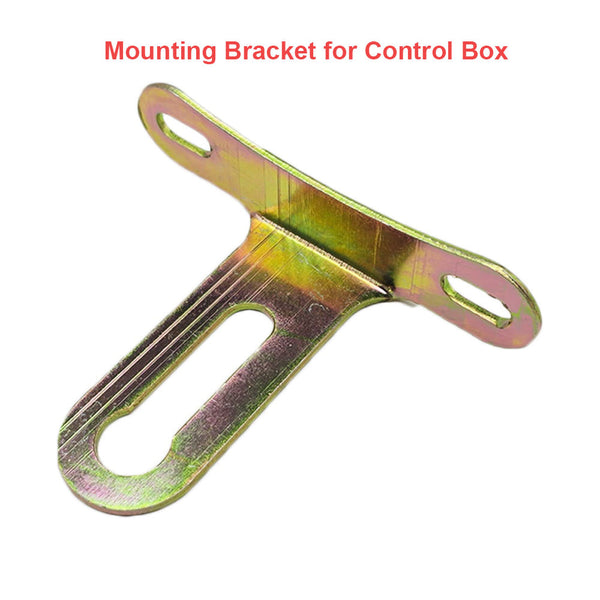

Control box parameters:
Operating Voltage: 220~240V AC
Operating Frequency: 433 MHz
Static Current: 15mA
Maximum Load Current: 15A
Control Mode: Momentary
Shell Material: Glass fiber reinforced nylon
Protection Rating: IP65
Operating Temperature: -20°C ~ +75°C
Unit Size: 180 x 130 x 113 mm
Wiring diagram for the original wired control of an AC motor:
How to connect the control box to the AC motor:
1) Remove the cover of the original junction box of the AC motor.
2) Remove two original power cables and two connecting tabs.

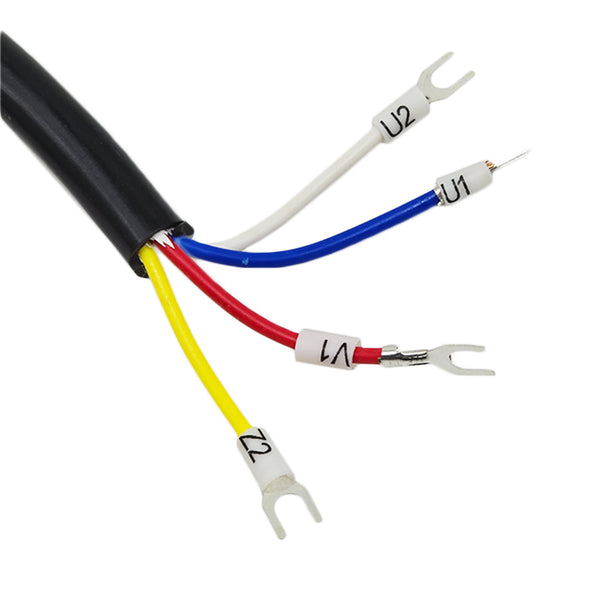

3) Connect the Z2, U2, U1, and V1 output wires of the control box to the Z2, U2, U1, and V1 terminals in the AC motor junction box.
4) Plug the control box's power plug into the AC power.
How to operate the AC motor with the control box:
The AC motor can be operated by the remote control and wired handle at the same time.

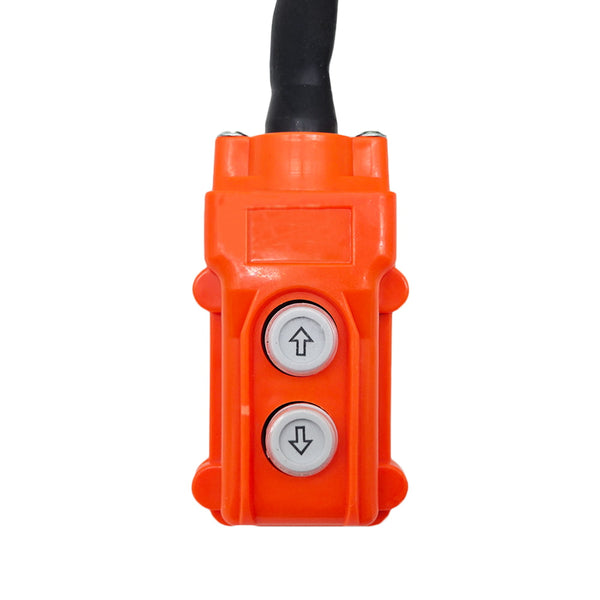

1) By wired handle:
The wired handle has two buttons.
Press and hold the button <UP> of the handle, the AC motor rotates in positive direction.
Release the button <UP>, the AC motor stops.
Press and hold the button <DOWN> of the handle, the AC motor rotates in reversal direction.
Release the button <DOWN>, the AC motor stops.

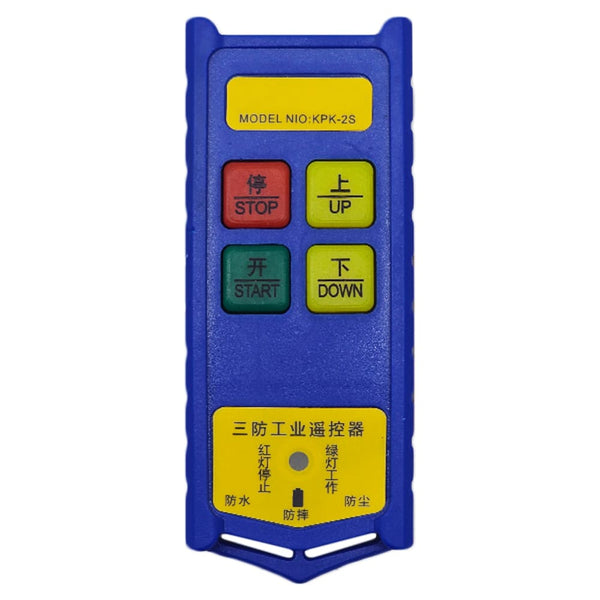

2) By remote control:
The remote control has four buttons: <START>, <STOP>, <UP>, <DOWN>.
First press the button <START>, then you can use the button <UP> or the button <DOWN> to operate the AC motor.
Press and hold the button <UP>, the AC motor rotates in positive direction.
Release the button <UP>, the AC motor stops.
Press and hold the button <DOWN>, the AC motor rotates in reversal direction.
Release the button <DOWN>, the AC motor stops.
Note: Once we have pressed the button <STOP>, we can no longer use the button <UP> or the button <DOWN> to operate the AC motor, thus preventing false triggering.
