The Model 0020706 is a heavy-duty industrial wireless remote control switch kit engineered for three-phase AC 380V electrical equipment. Featuring a high-power S1UA-AC380 receiver equipped with an internal AC contactor and integrated phase-loss (lack-phase) protection, it safeguards three-phase motors and pumps against burn-out caused by missing phases while enabling reliable long-range wireless ON/OFF control up to 500 meters.
Key Features
- Heavy-Duty Switching: Equipped with an industrial AC 380V contactor available in 18A (up to 4KW) or 32A (up to 8KW) ratings.
- Phase-Loss Protection: Built-in lack-phase monitoring automatically prevents equipment damage and motor burn-out.
- Long-Range Wireless Control: Telescopic antenna on receiver pairs with RF transmitter for dependable signal transmission up to 500 meters (1,500 ft) in open terrain.
- Strong Obstacle Penetration: 433.92 MHz RF signal reliably penetrates walls, floors, doors, and glass.

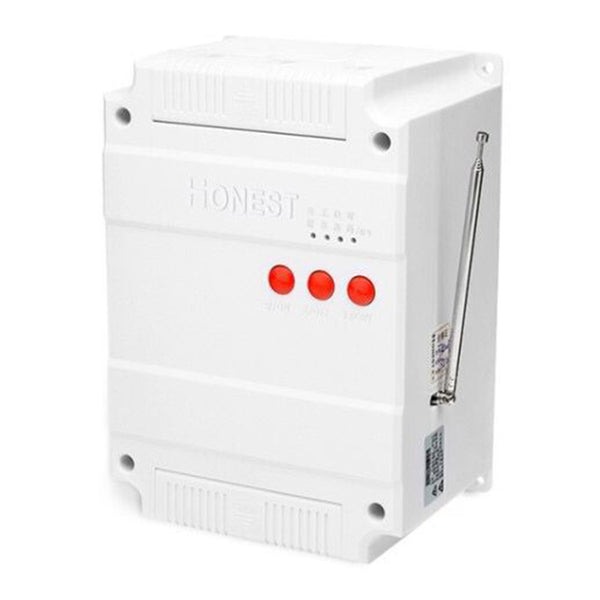

- Dual Operation Modes: Can be triggered remotely via handheld transmitter or directly via manual ON/OFF push buttons on the receiver unit.
- Interference-Free Coding: Advanced code matching with thousands of combinations ensures the receiver operates only with paired transmitters.
Technical Specifications
- Kit Model Number: 0020706
- Receiver Model: S1UA-AC380
- Operating & Output Voltage: Three-phase AC 380V
- Channel Count: 1 Channel (3-Phase)
- Control Mode: Interlocking (ON / OFF)
- Current & Power Ratings: 18A (380V / 4KW) or 32A (380V / 8KW)
- Static Current: ≤6mA

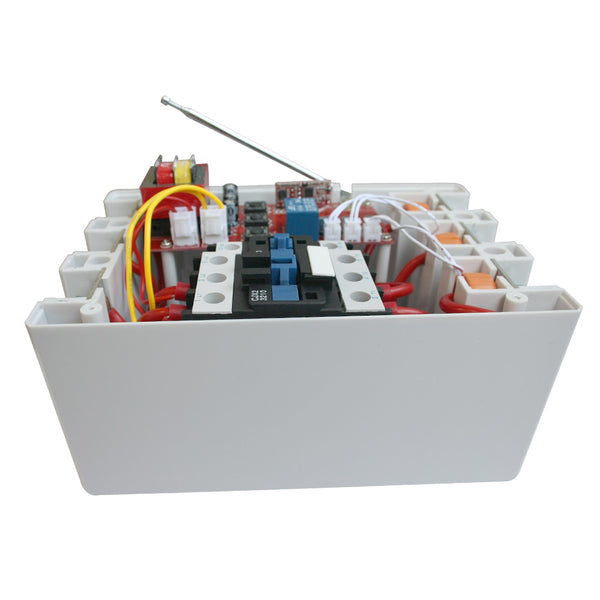

- Receiver Dimensions: 200 x 135 x 120 mm

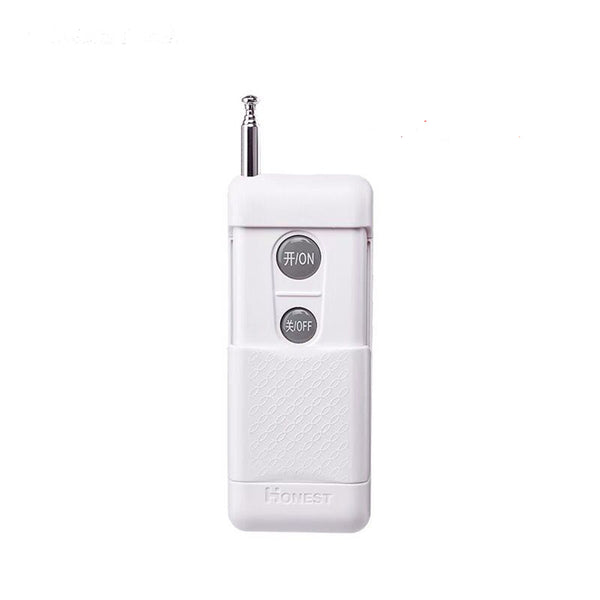

- Transmitter Model: CP-2-2 (2 buttons: ON / OFF)
- Transmitter Power Supply: 12V (1 x 23A battery included)
- Theoretical Transmission Distance: 500 meters (open field)
- Operating Temperature: -20°C to +70°C
Applications
- Three-phase AC 380V industrial motors and electric pumps
- Agricultural irrigation pumps and deep well water systems
- Industrial ventilation fans, exhaust blowers, and air compressors
- Factory machinery, conveyors, industrial heaters, and lighting towers

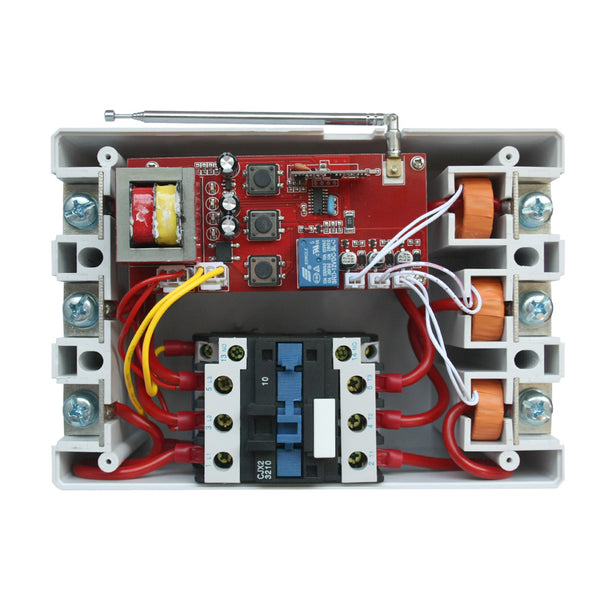

Wiring Instructions

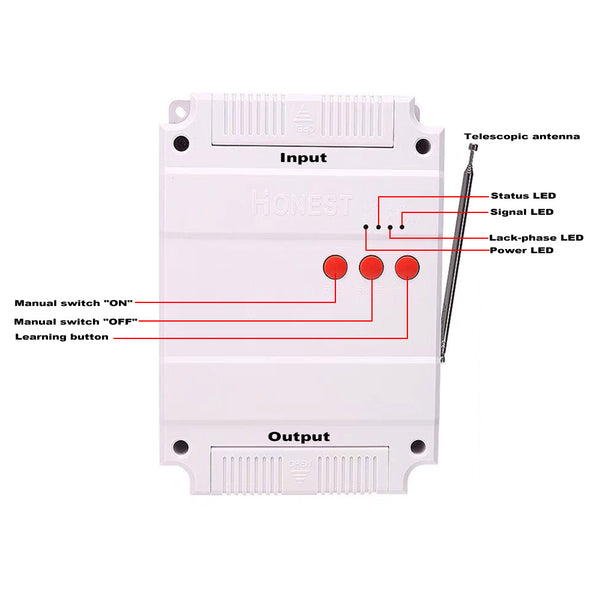

- Connect the three input lines of the AC 3-phase 380V power supply to terminals L1, L2, and L3 of the receiver.
- Connect the three load lines of the AC 3-phase 380V equipment to terminals T1, T2, and T3 of the receiver.
Operating Instructions
- Via Remote Transmitter (CP-2-2): Press ON to activate the 380V output and start connected equipment. Press OFF to shut off power and stop equipment.
- Via Receiver Manual Buttons: Press ON directly on the receiver casing to output 380V power; press OFF to stop power output.
Package Includes
- 1 x Three-Phase 380V Receiver Unit (S1UA-AC380)
- 1 x 2-Button RF Remote Transmitter (CP-2-2)
- 1 x User Manual
