Package Include:
1 x WIFI Smart Switch For DC Motor Electric Linear Actuator
1 x User manual
Application:
It is suitable for a variety of automation occasions, such as industrial, agricultural, commercial, and home intelligence. Through smartphones and the Internet to achieve remote control of various devices with small bi-directional DC motors (with two control wires), such as electric height-adjustable desks, electric massage chairs, electric beds, electric projection screens, linear actuators, electric curtains, etc.
Feature:
Connect to the Internet via the WIFI signal of the wireless router.
Via smartphone app to control, no distance limit.

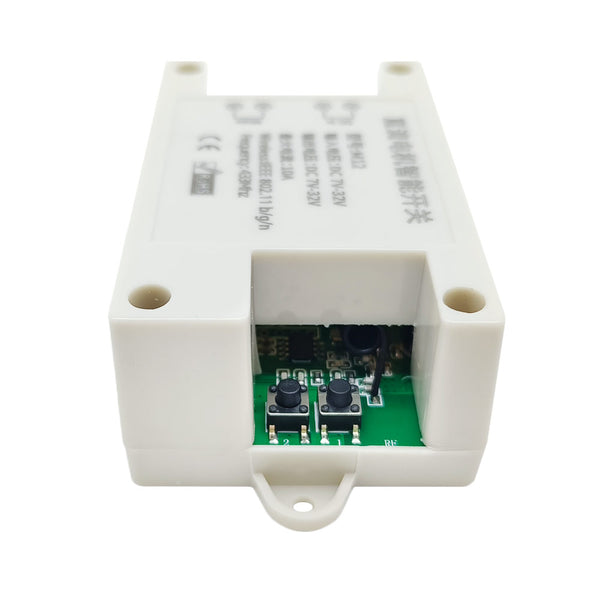

With two learning buttons.
With remote control function, you can use the remote to achieve control.
It can be operated by mobile phone and the remote at the same time.
It offers APP for Android or iOS, and APP (eWeLink) is free to use.
The Android version of the app supports a variety of Android phones or tablets.
The iOS version of the app supports a variety of iPhone, iPad and iPod Touch.
The APP supports English, French, German, Spanish, Russian and other languages.
Timing function: You can set the device to run automatically at different times of the day.
Support for custom scene settings, can get out of the phone to achieve automatic control.
With the sharing function, you can share this device with other mobile phones for common operation.
WIFI Switch Parameters:

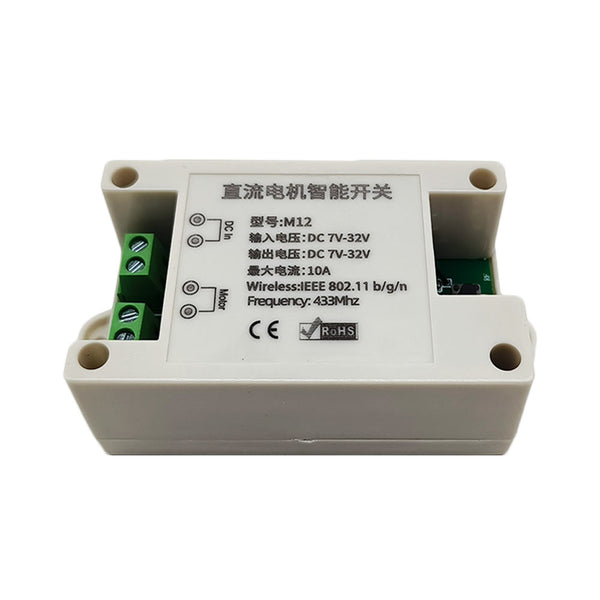

Operating Voltage: DC 7~32V
Output Voltage: DC 7~32V (The output voltage is the same as the input voltage)
Working Frequency: 433.92 MHz
Wireless Standard: IEEE 802.11 b/g/n
Static Current: ≤6mA
Maximum Working Current: 10A

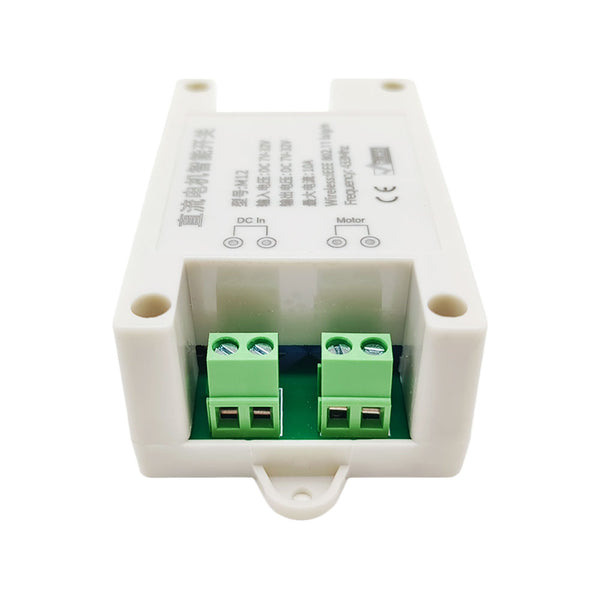

Suitable Wires for Connecting Terminals: 22-16 AWG
2 Working Mode: Normal Working Mode, Delay Working Mode
Material: flame retardant ABS
Operating Temperature: -20°C ~ +70°C

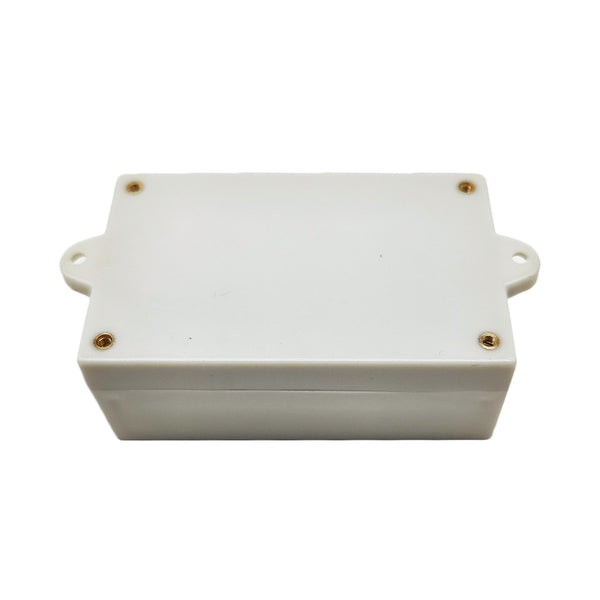

Case Size: 96 x 50 x 31 mm
Applicable Transmitters:
The WIFI switch can work with different transmitters, such as C-2-2 (100m), CP-2L(500m), and CB-2L (1000m).
Working Range:
This WIFI switch and different transmitters form a complete set, which can achieve different working distances. For example, when it and the transmitter C-2-2 form a complete set, the maximum working distance may reach 300 feet or 100 meters in an open area. When it and the transmitter CB-2L form a complete set, the maximum working distance may reach 3000 feet or 1000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Wiring:

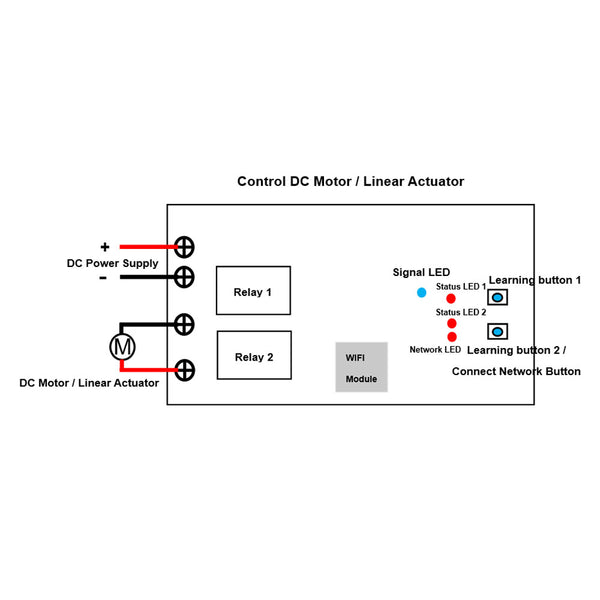

1. Connect the positive pole of DC power supply to terminal <+> of the WiFi switch, and connect the negative pole of DC power supply to terminal <-> of the WiFi switch.
2. Connect two wires of motor or linear actuator to terminals <Motor>, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
Operation in different working modes:
1. Normal working mode:
1) The operation via the APP (eWeLink):
Press the button of Channel 1 on the APP: DC motor rotates in positive direction, or linear actuator extends outward.
Press the button of Channel 1 again: DC motor or linear actuator stops.
Press the button of Channel 2 on the APP: DC motor rotates in reversal direction, or linear actuator inward retracts.
Press the button of Channel 2 again: DC motor or linear actuator stops.
2) The operation via the transmitter C-2-2:
Press the button ▲ on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward.
Press the button ▲ again: DC motor or linear actuator stops.
Press the button ▼ on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ▼ again: DC motor or linear actuator stops.
2. Delay working mode:
The working time of the channels can be set on the mobile phone APP. When the WIFI switch works to the set time, the WIFI switch stops output, and the DC motor or linear actuator automatically stops.
1) The operation via the APP (eWeLink):
Press the button of Channel 1 on the APP: DC motor rotates in positive direction, or linear actuator extends outward; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button Channel 1 to stop DC motor or linear actuator.
Press the button of Channel 2 on the APP: DC motor rotates in reversal direction, or linear actuator inward retracts; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button Channel 2 to stop DC motor or linear actuator.
2) The operation via the transmitter:
Press the button ▲ on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button ▲ to stop DC motor or linear actuator.
Press the button ▼ on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button ▼ to stop DC motor or linear actuator.
