Wireless RF Remote Switch Kit- 1 Transmitter Control 6 AC 30A Output Receivers (Model: 0020739)

Regular price $218.00

Shipping calculated at checkout.

Package Include:
6 x Receiver: S1PXB-AC
1 x Transmitter: CV-6
1 x User manual

Application:
This 120V 220V high power 30A wireless remote control switch kit, with 6 radio receivers with 1 channel AC input output, and a 6 buttons RF transmitter.
The kit can long range remote control AC electric devices, such as lamp, LED light, fan, motor, pump, solenoid valve, door lock, heater, gates, etc.

Feature:
Wireless remote control, easy to install.

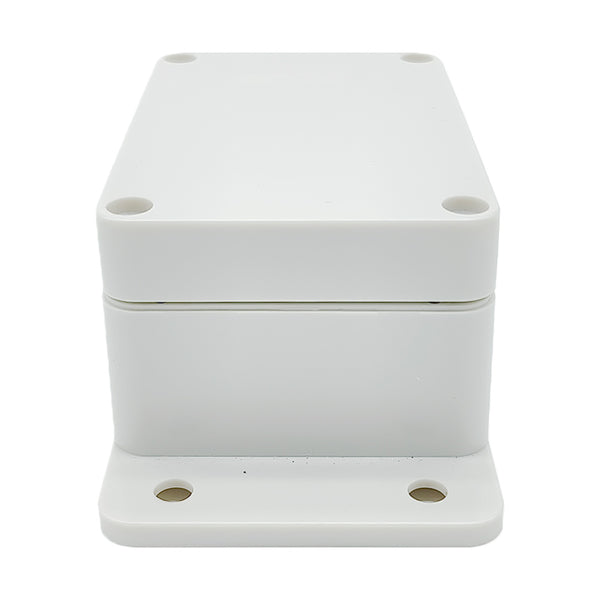

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum current 30A
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S1PXB-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 1 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A
Two control modes: Self-locking and Momentary
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 100 x 68 x 50 mm (4.0 x 2.7 x 2.0 inches)

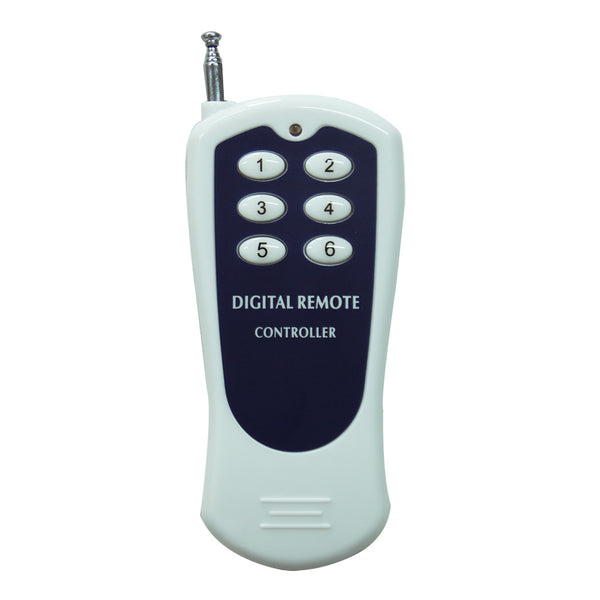

Transmitter Parameters:
Model No.: 0021019 (CV-6)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6

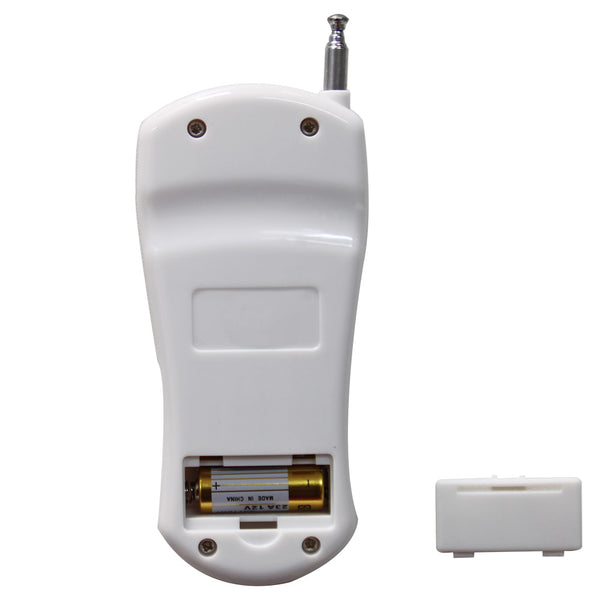

Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 15mA
Operating Frequency: 433.92MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Matching Transmitters:
The receiver can work with different transmitters, such as model CV-6 (100 Meter / 300 feet range) or CB-6 (1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as CV-6) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-6 transmitter.

Usage:
The receiver can be used to control AC 110~240V equipments.

Setting different control modes:
1) Setting Self-locking mode (with the transmitter CV-6): Connect to the two setting ports on the receiver until signal LED flashes 3 times, then disconnect.
Press button 1 of the transmitter: The lamp connected to the receiver 1 is turned on.
Press button 1 of the transmitter again: The lamp connected to the receiver 1 is turned off.
Press button 2 of the transmitter: The lamp connected to the receiver 2 is turned on.
Press button 2 of the transmitter again: The lamp connected to the receiver 2 is turned off.
...
Press button 6 of the transmitter: The lamp connected to the receiver 6 is turned on.
Press button 6 of the transmitter again: The lamp connected to the receiver 6 is turned off.

2) Setting Momentary mode (with the transmitter CV-6): Connect to the two setting ports on the receiver until signal LED flashes 2 times, then disconnect.
Press and hold button 1 of the transmitter: The lamp connected to the receiver 1 is turned on.
Release the button 1 of the transmitter: The lamp connected to the receiver 1 is turned off.
Press and hold button 2 of the transmitter: The lamp connected to the receiver 2 is turned on.
Release the button 2 of the transmitter: The lamp connected to the receiver 2 is turned off.
...
Press and hold button 6 of the transmitter: The lamp connected to the receiver 6 is turned on.
Release the button 6 of the transmitter: The lamp connected to the receiver 6 is turned off.
