Package Include:
1 x Receiver: S1X-AC380-ANT3
1 x Transmitter: CP-2
1 x User manual
Application:
For long range control ON and OFF of the AC 380V electric equipment, such as lamp, light, motor, pump, fan, heater, etc.
Feature:
Wireless control, easy to install.
Universal Power Supply: AC 75~400V, support AC 110V, AC 120V, AC 220V, AC 240V, AC 380V.
AC Power Output: It can directly control AC 110V or 220V equipments, or control 380V AC equipment by the contactor.
With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No.: S1X-AC380-ANT3
Power Supply (Operating Voltage): AC 75~400V (110V/120V/220V/240V/380V)
Output: AC 75~400V (110V/120V/220V/240V/380V)
Channel: 1 Way
Control Modes: Interlocking
Static Current: ≤6mA
Maximum Load Current: 10 A
Working Frequency: 433.92MHz
Wire range for the terminals: 22-12 AWG
Operating Temperature: -20 ° C to +70 ° C
Case size: 105 x 55 x 29 mm

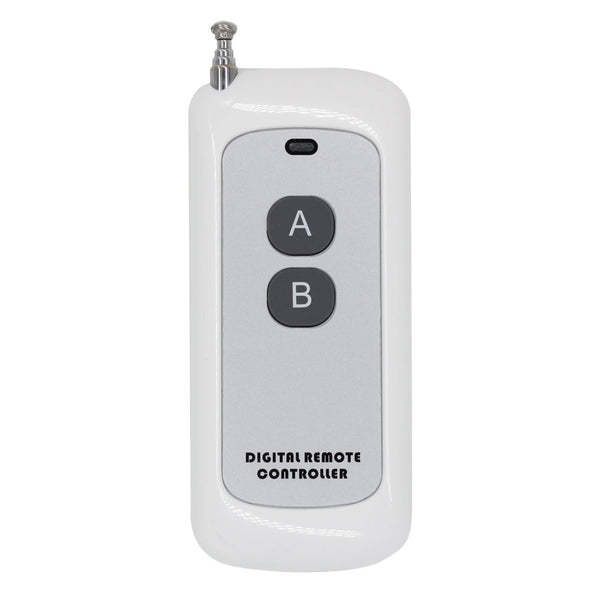

Transmitter Parameters:
Model No.: 0021011 (CP-2)
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433.92MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85 x 36 x 16 mm
Applicable Transmitters:
The receiver can work with different transmitters, such as model CP-2 (500 metres), CG-2 (500 meters, wall mounted) and CB-2 (1000 metres).
Working Range:
With a transmitter (such as CP-2) to form a complete set, the maximum working distance can reach 500 metres in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver, or use a high-power transmitter, such as CB-2 transmitter.
Usage:
The receiver can be used to control AC 110V or 220V pumps, motors and other equipments, or AC 380V equipments by the 380V contactors, and it can’t directly connected to the 380V equipments.
Wiring:
1) If you want to control the AC 110V or 220V equipment, you can connect the receiver, the equipment and the AC power according following circuit diagram 1, then you use the transmitter to control the equipment.
2) If you want to control the AC 380V equipment, you can connect the receiver, the 380V contactor, the 380V equipment and the 380V power according following circuit diagram 2, then you use the transmitter to control the AC 380V equipment.
Operation by remote control:
Press button A of the transmitter: The receiver outputs AC power (the digital tube displays "On"), and turns on the equipment.
Press button B of the transmitter: The receiver stops to output AC power (the digital tube displays "OFF"), and turns off the equipment.
Operation by manual buttons on the receiver:
Press the button on the receiver: The receiver outputs AC power (the digital tube displays "On"), and turns on the equipment.
Press the button again: The receiver stops to output AC power (the digital tube displays "OFF"), and turns off the equipment.
