1.5V Wireless Vibration Reminder with RF Remote Control (Model: 0020175)

Regular price $22.00

Shipping calculated at checkout.
Package Include:
1 x Receiver: Z-04
1 x Transmitter: C-1 or CP-1 or CB-1
1 x User manual

This is a DC 1.5V small wireless vibration reminder with RF remote control or transmitter, which can long range reminding person with hearing impairment, or pet training.

Wireless control.
You can use the transmitter (remote control) from anywhere within a reliable distance to control the receiver (wireless vibrator) to vibrate.
The wireless signal can pass through walls, floors and doors.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.

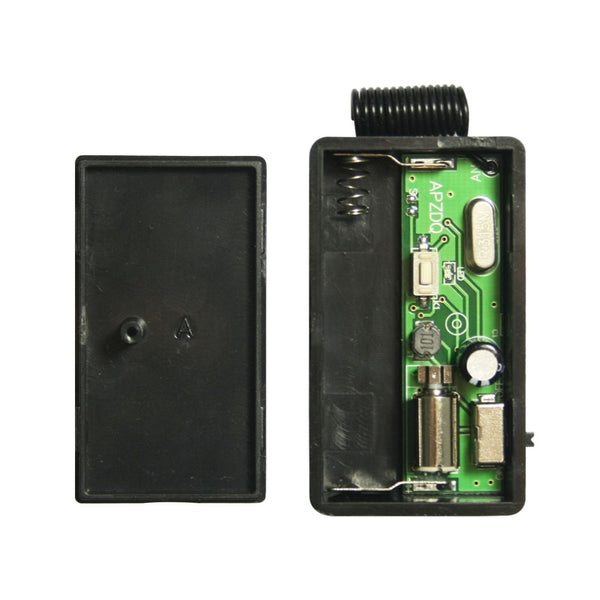

Receiver (Wireless Vibrator):
Model: Z-04
Power Supply: 1 x AAA 1.5V Battery (included)
Working Mode: Momentary Vibration
With power switch on the side.
Operating Temperature: -20°C to +70°C
Size: 51mm x 30mm x 14mm

Transmitter (Remote Control):
Model No.: 0021000 (C-1)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 1
Button Symbol: no symbol
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 6mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 39mm x 16mm

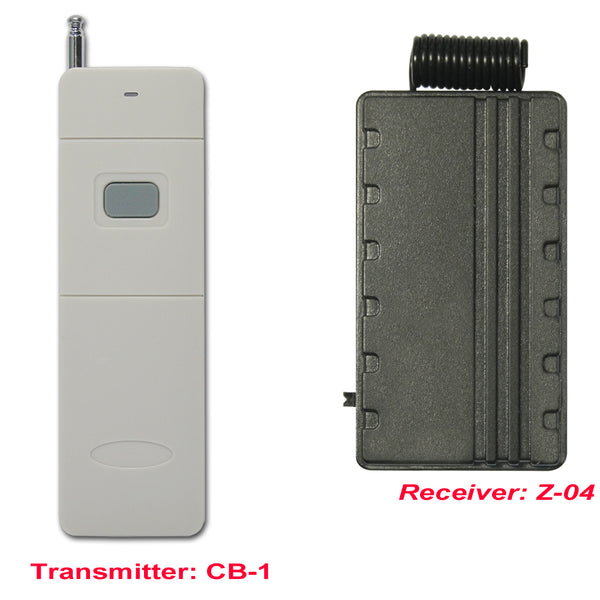

Applicable Transmitters:
The receiver (wireless vibrator and beeper) can work with different transmitters. Such as model C-1 (100 Meter / 300 feet range), CP-1 (500 Meter / 1500 feet range), or CB-1 (1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as C-1) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you use a powerful transmitter, such as a CP-1 or CB-1transmitter.

Press and hold the button of the transmitter, the vibrator vibrates.
Release the button, the vibrator stops vibration.
