1 Channel 30A Wireless Remote Control Switch Kit for Single Phase Motor (Model: 0020131)

Regular price $82.00

Shipping calculated at checkout.

Application:
This 110V 220V wireless remote control switch kit, with 1 channel high power 30A radio receiver and a 500 meters RF transmitter. For long range remote control single phase motor positive rotation, reverse rotation or stop rotation.
Widely used in equipments with AC single phase motor, such as rolling blinds, rolling doors, projection screens, awnings, winches, conveyors.

Features:
Wireless remote control, easy to install.
Universal input: support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
High Power: Each channel can work at maximum current 30A.
With limit control terminals: You can connect limit switches or sensors to stop the motor.
With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the motor.
You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

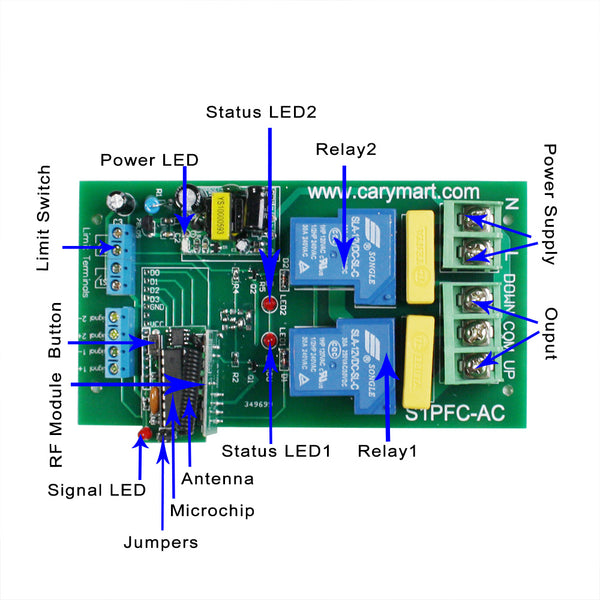

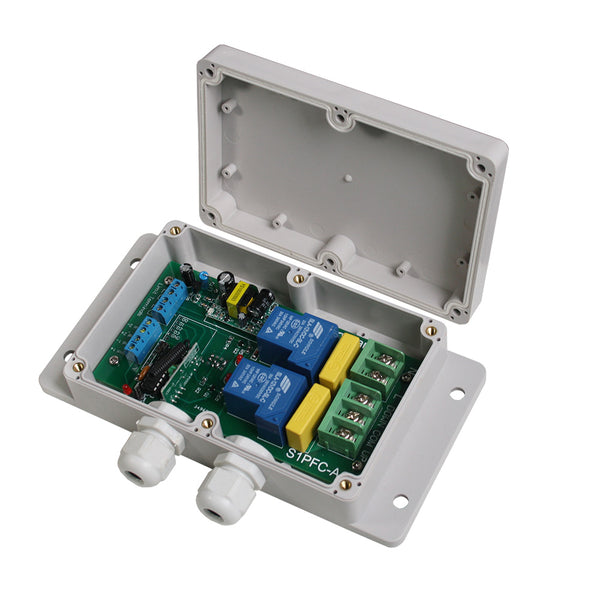

Receiver Parameters:
Model No.: S1PFC-AC220
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Channel: 1Way
Control Mode: Momentary and Interlocking
Static Current: ≤6mA
Maximum Working Current: 30A, so motor's maximum starting current can’t exceed 30A.
Working Frequency: 433MHz
PCB Size: 140mm x 73mm x 18mm
Case Size: 192mm x 100mm x 45mm

Transmitter Parameters:

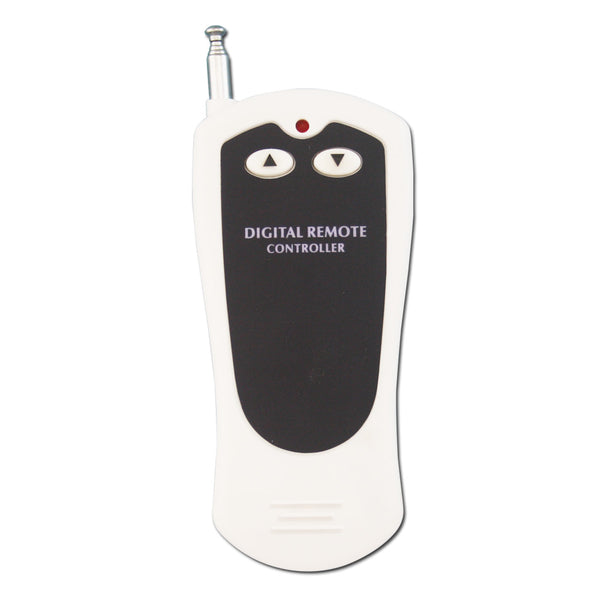

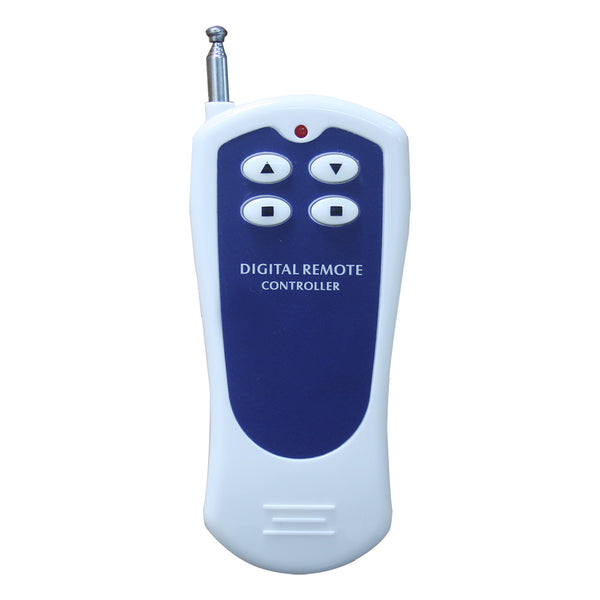

Model No.: 0021050 (CV-2-2) / 0021051 (CV-4-2)
Channel/Button: 2 (CV-2-2) / 4 (CV-4-2)
Button Symbol: ▲, ▼ (CV-2-2)/▲, ▼, Two■ (CV-4-2)
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433.92MHz
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Matching Transmitters:
This radio receiver can work with different RF transmitters.
When you set the receiver in momentary mode, it should work with two button transmitters, such as model C-2-2 (100 Meter)CV-2-2 (500 Meter), or CB-2 (1000 Meter) etc.
When you set the receiver in Interlocking mode, it should work with three/four button transmitters, such as model C-3-2 (100 Meter)CV-4-2 (500 Meter), or CB-3-2 (1000 Meter) etc.

Working Range:
With a transmitter (such as CV-4-2) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data; it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

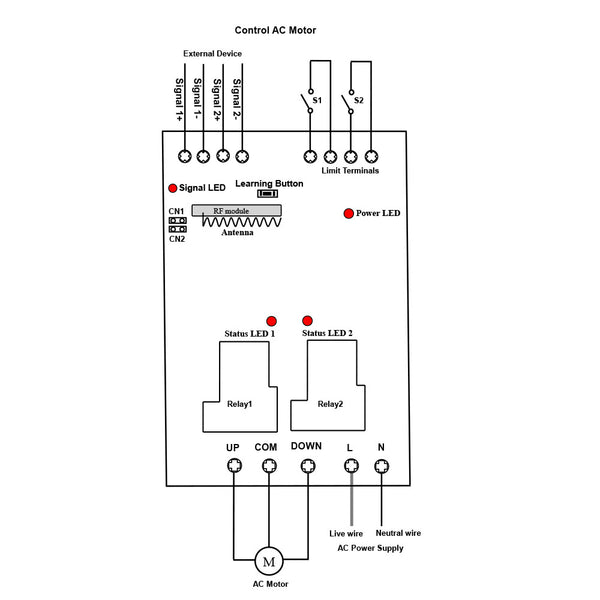

Setting different control modes:
1) Setting control mode Interlocking (with transmitter CV-4-2):Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)
Press button ▲ of transmitter: Motor rotates in positive direction.
Press button ▼ of transmitter: Motor rotates in reversal direction.
Press button ■ of transmitter: Motor stops.

2) Setting control mode Momentary (with transmitter CV-2-2): Only connect Jumper-1 (CN1)
Press and hold button ▲ of transmitter: Motor rotates in positive direction. Release button ▲ of transmitter: Motor stops.
Press and hold button ▼ of transmitter: Motor rotates in reversal direction. Release button ▼ of transmitter: Motor stops.

Package Include:
1 x Receiver: S1PFC-AC220
1 x Transmitter: CV-2-2 or CV-4-2
1 x User manual
