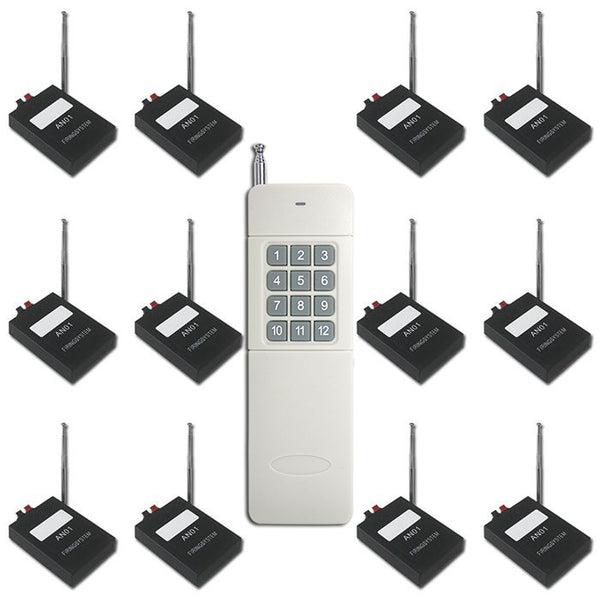

12 x Ignition controller: S1PS1-DC06-ANT1
1 x Remote control: CV-12L or CB-12L
1 x User manual
Wireless control, easy to install.
It can ignite various kinds of electronic fireworks directly, or ordinary fireworks through an electric ignition head, which reduces accidents like skin burn and accidental explosions.
Each channel of ignition controller can ignite several fireworks at the same time.
One transmitter can control many ignition controllers simultaneously.
The ignition controller can be operated by remote control from any place within a reliable distance; wireless signal can pass through walls, floors, doors or windows, but the operating range will be shortened.

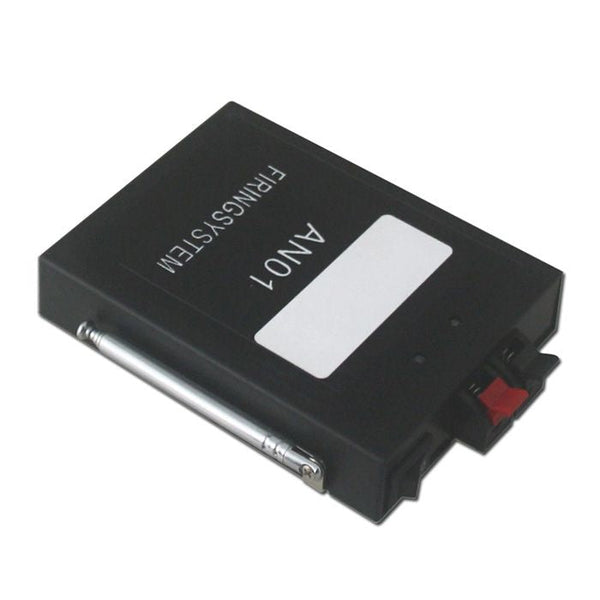

With external telescopic antenna, the ignition controller has a farther working range.

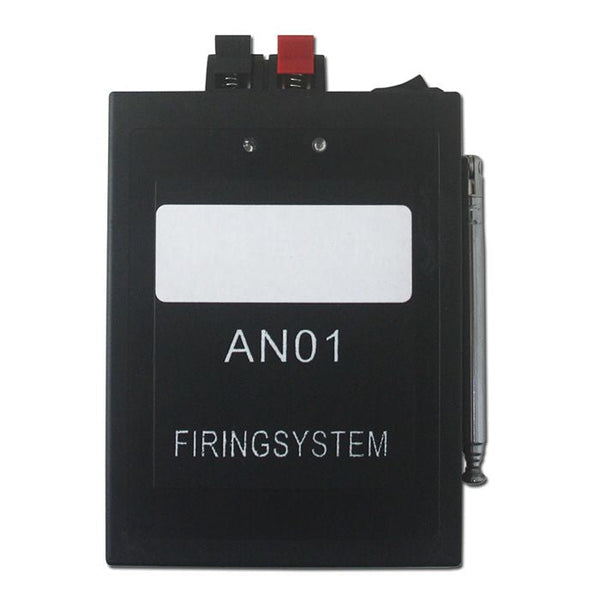

Model No.: S1PS1-DC06-ANT1

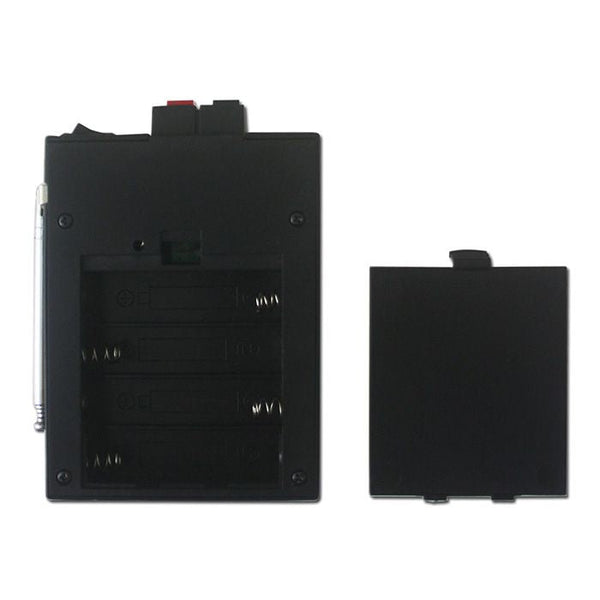

Power Supply (Operating Voltage): 4 x 1.5V AA batteries (excluded)
Power Output: DC6V
Channel: 1 Way
Static Current: ≤5mA
Working Frequency: 433.92MHz
Operating Temperature: -20℃ to +70℃
Case size: 105mm x 75mm x 20mm
Remote Control (Transmitter):
Model No.: CV-12L
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433.92MHz
Transmitting Distance: 500 meters / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
The receiver can work with different transmitters. Such as model CV-12L (500 Meter / 1500 feet range), or CB-12L (1000 Meter / 3000 feet range).
With a transmitter (such as CV-12L) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can use an RF signal repeater, or use a powerful transmitter, such as a CB-12L transmitter.
1. Test the firework ignitor system:
Turn on the power switch on the receiver (igniters), and press the button on the remote control that corresponds to the receiver (igniters), if the signal LED on the corresponding receiver (igniters) flash, it means that firework ignitor system is in good condition.
2. Connect fireworks:

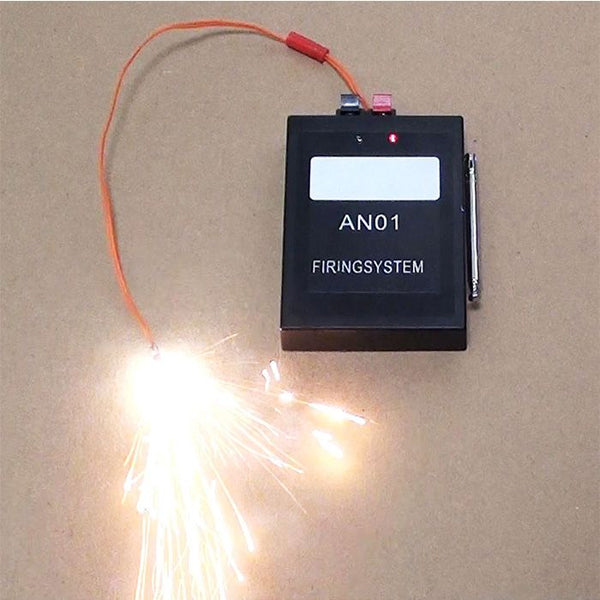

Turn off the power switch on the receiver (igniters) and connect two wires of electronic firework to red and black terminals, or connect ordinary firework fuse to the electric ignition head, and connect electric ignition head to red and black terminals.
3. Ignite fireworks:
Turn on the power switch on the receiver (igniters)
Press the button 1 on the remote control, The firework connected to receiver (Igniters) 1 will be ignited.
Press the button 2 on the remote control, The firework connected to receiver (Igniters) 2 will be ignited.
Press the button 12 on the remote control, The firework connected to receiver (Igniters) 12 will be ignited.
Caution: Please make sure that the power switch of receiver (igniters) is off when you connect electronic fireworks or electric ignition head to controller.
