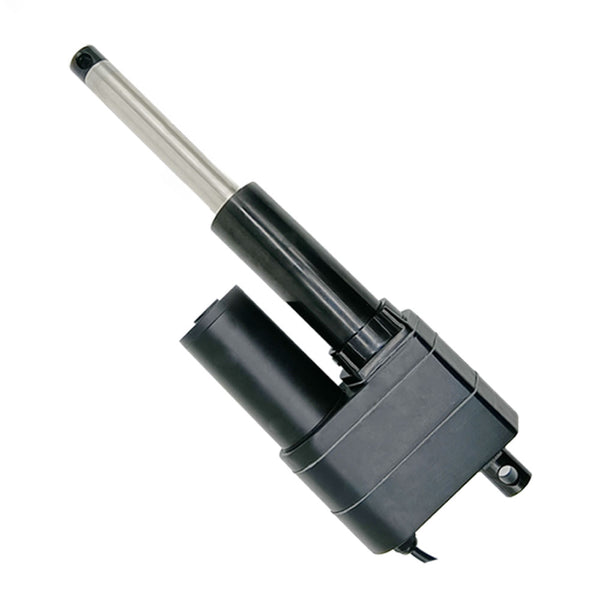

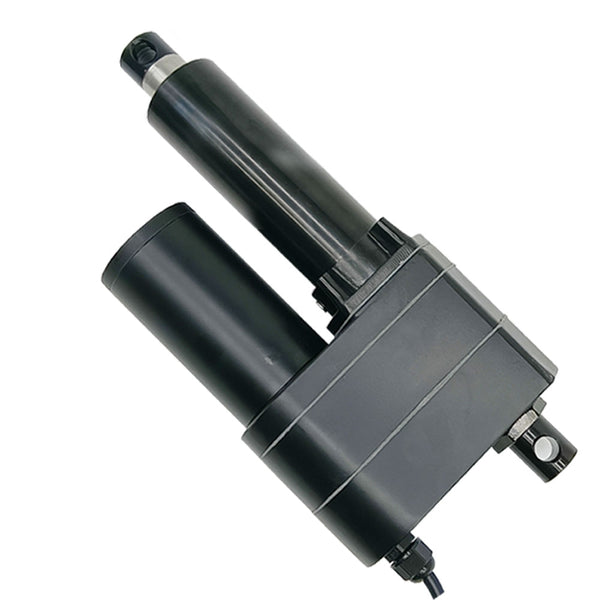

12V 24V Heavy Duty Electric Linear Actuator 8000N 1800 lbs Stroke 2 inch/50mm (Model: 0041551)

Regular price $320.00

Shipping calculated at checkout.

1) This product does not contain a mounting brackets; It compatible Bracket B and Bracket D, if you need it, please click here.
2) If you need DC power supply for linear actuator, please click here.
3) If you need external limit switch for linear actuator, please click here.
4) If you need manual switch or controller for linear actuator, please click here.
5) If you need wireless remote control switch for linear actuator, please click here.

Application:
The DC 12V or 24V 800Kg 8000N 1800lbs heavy duty electric linear actuator can open, close, push, pull, lift and descend other devices. Such as doors, windows, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, etc.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 8000N / 800 Kgs / 1800 lbs
Multiple speed options, from 5 mm/second to 60 mm/second
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in clutch to protect gears and motors
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V
Stroke range: 2 inches or 50 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±6mm/s, 40±8mm/s, 60±12mm/s
When the load increases, the speed of linear actuator will slow down.
Max Load capacity: 8000N / 800 Kgs / 1800 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: about 4A at 12V or 2A at 24V
Max load current: about 20A at 12V or 10A at 24V
Please use a 12V/20A or 24V/10A power supply to power a linear actuator or use a 12V/50A or 24V/20A power supply to power two linear actuators.

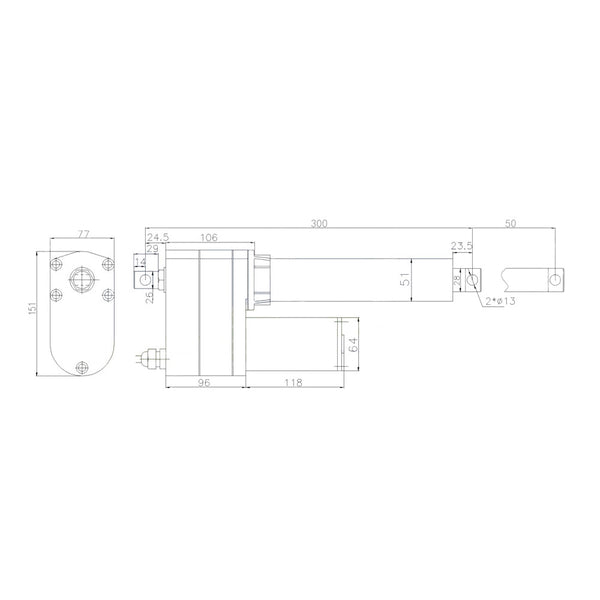

Shaft diameter: 28mm
Mounting holes diameter: 13mm
Housing Material: Stainless steel
Stroke Rod Material: Stainless steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 10%, max 2mins continuous use
Plug Standard: Ordinary Two-core Wire (Standard Four-pin Plug is optional)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 56dB~66dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

Operation:
When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.



Thrust and speed sheet

Speed Thrust
5mm/s 8000N  /  800 kg  /  1800 lbs
10mm/s 5000N  /  500 kg  /  1100 lbs
15mm/s 4000N  /  400 kg  /  880 lbs
20mm/s 3000N  /  300 kg  /  660 lbs
30mm/s 2000N  /  200 kg  /  440 lbs
40mm/s 1500N  /  150 kg  /  330 lbs
60mm/s 500N  /  50 kg  /  110 lbs
