Applications:

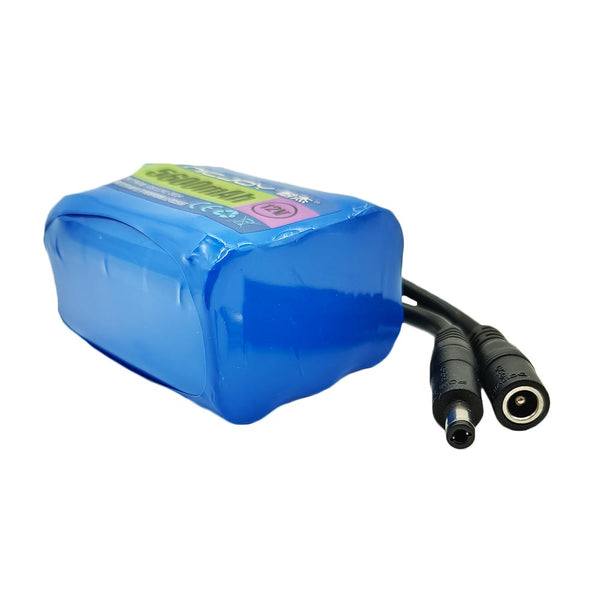

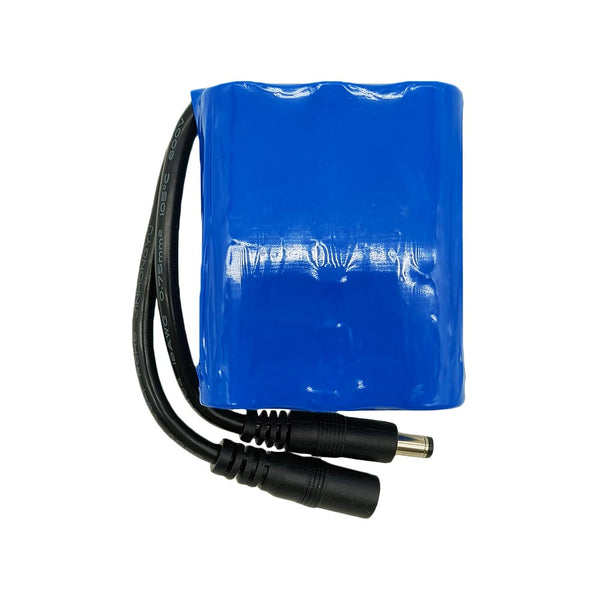

12V 5600mAh Rechargeable Lithium Battery Pack for DC equipments, such as wireless switch (radio receiver), RF remote control, pumps, motors, toys, baby carriages, etc.
Product parameters:
Model: 0010203
Rated Voltage: 12V DC
Rated Capacity: 5600mAh
Cell Type: 18650
Cell Number: 6
Discharge Cut-off Voltage: 9V
Charge Cut-off Voltage: 12.6V
Maximum continuous discharge current: 9A
Maximum instantaneous discharge current: 18A
Suitable for electrical appliances not exceeding 110W.
Cycle Life: More than 1000 times
48 hours aging test.
Connector: DC 5.5*2.1mm Male Plug and Female Plug
With over current, overcharge, over discharge, and short circuit protection

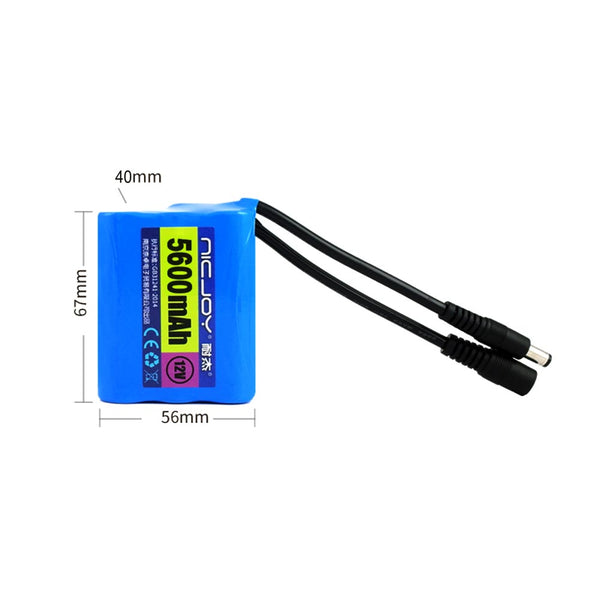

Size: 56 x 40 x 67 mm (2.2 x 1.6 x 2.6 inches)
Operating Temperature: -20°C ~ +60°C
