2 CH 12V 24V 30A Time Delay Wireless RF Remote Control Switch Kit (Model: 0020659)

Regular price $77.00

Shipping calculated at checkout.
Application:
This remote control switch or receiver is an time delay electric device with 2 channels dry relay output, it and wireless transmitter form a receiver transmitter system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can remote control equipment on land, water and air, such as remote control of lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, and business signs. The applications are endless.

Feature:
Wireless control, easy to install.

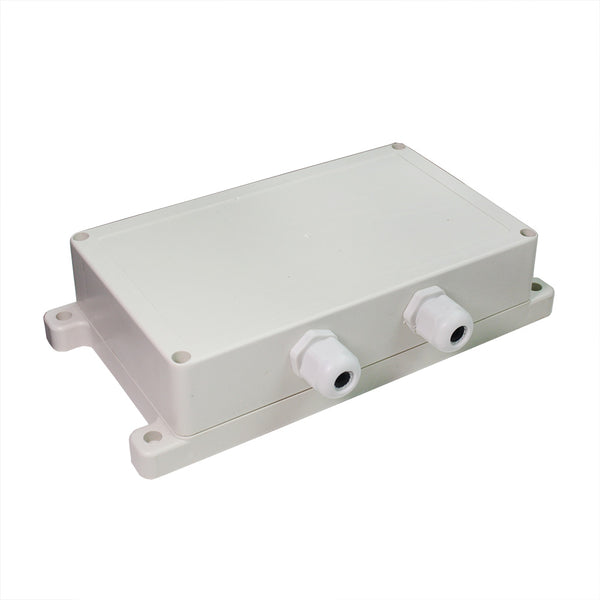

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
3 operating voltage versions: DC 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
High Power: Each channel can work at maximum load current 30A.
With adjustable 0 seconds to 99 hours time delay function.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:
Model No.: S2PDA-DC09 / S2PDA-DC12 / S2PDA-DC24
Power Supply (Operating Voltage): DC9V±1V (S2PDA-DC09), DC12V±1V (S2PDA-DC12), DC24V±1V (S2PDA-DC24)
Output Type: Dry Relays Output (Normally Open and Normally Closed)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 30A / each channel
Quiescent Current: ≤6mA
Channel: 2 CH
Working Frequency: 433.92 MHz
Control Mode: Delay (Press -> ON; Then OFF after the delay time)
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 170 x 100 x 18mm (6.7x 4.0 x 0.7 inches)
Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)

Transmitter Parameters:

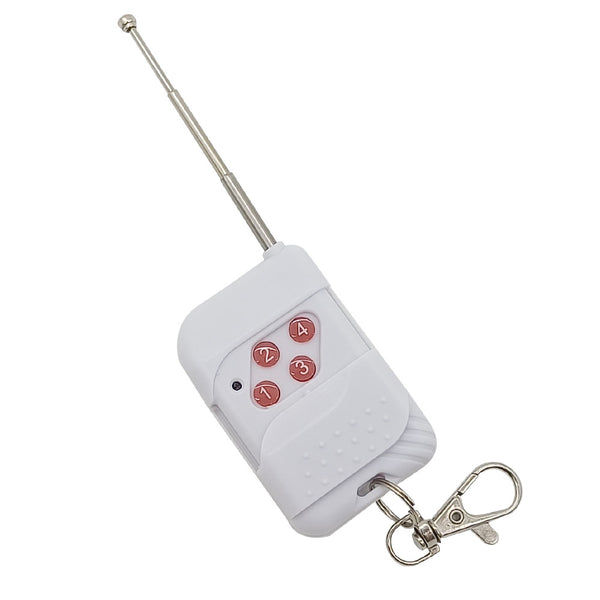

Model No.: 0021003 (C-4)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 4
Button Symbol: 1, 2, 3, 4
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 Meter / 300 feet range)CP-4 (500 Meter / 1500 feet range)  or CB -4 (1000 Meter / 3000 feet range).

Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-4 transmitter.

Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

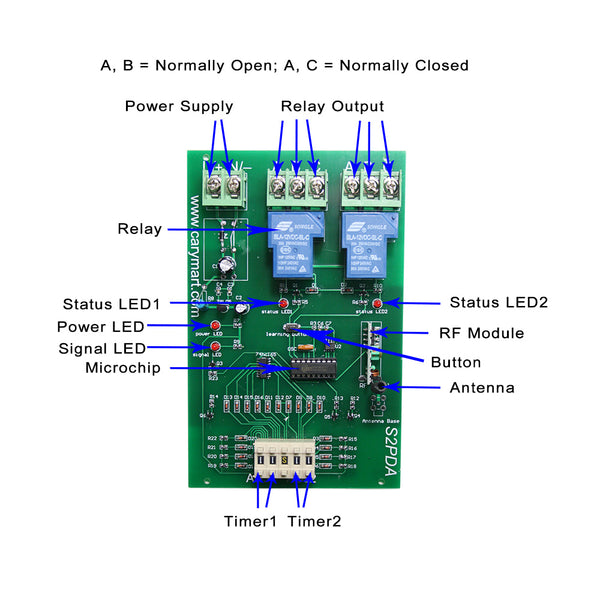

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals A and B are Normally Open; Terminals A and C are Normally Closed.

Operation:
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp is turned on.
After delay time of first channel (or press the button 2 on the transmitter): The relay 1 is deactivated, and the connected lamp is turned off.
Press the button 3 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp is turned on.
After delay time of second channel (or press the button 4 on the transmitter): The relay 2 is deactivated, and the connected lamp is turned off.

Setting the delay time:

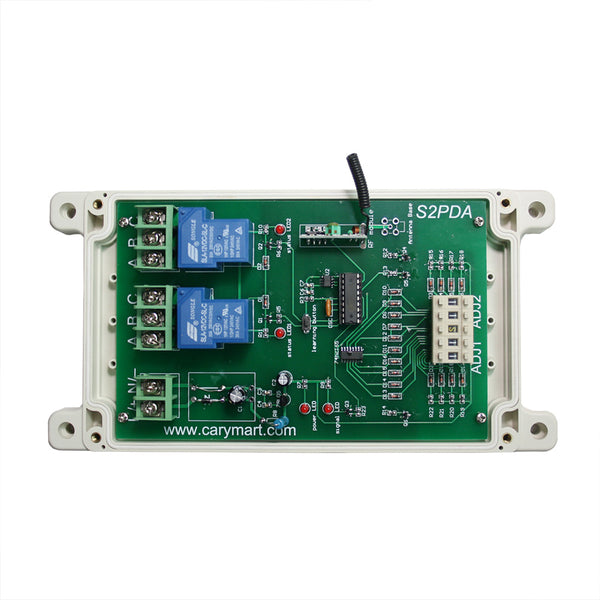

Press buttons of “+” and “-” on the timer of the receiver, adjust delay time from 0 second to 99 hours. Two buttons of Timer 1 adjust delay time of relay 1; two buttons of Timer 2 adjust delay time of relay 2. “H” is Hour, “M” is Minute, and “S” is Second.
For example, if you set “2 0 M 0 5” on Timer, it means the delay time on Timer 1 is 5 minutes; the delay time on Timer 2 is 20 minutes.

Package Include:
1 x Receiver: S2PDA-DC
2 x Transmitter: C-4
1 x User manual
