2CH 12V 24V 30A 433MHz Wireless Remote Control Receiver Kit for DC Electric Gear Motor (Model: 0020604)

Regular price $104.00

Shipping calculated at checkout.

Application:
This DC motor remote control switch kit includes one 6 buttons transmitter and two receivers. You can use one transmitter to remote control two DC motors (DC12V/24V) rotation in positive/ reversal direction. You also can connect two limit switches (normally closed type) to each receiver and use them to stop motor rotation.
It can be used in rolling blinds, rolling doors, projection screens, awnings, conveyors or other appliances and equipments with DC motors.

Features:
Wireless remote control, easy to install.
Two operating voltage versions: DC 12V, 24V optional.
You can remote control DC motor positive rotation, reverse rotation or stop rotation with the transmitter from any place within a reliable distance.
You also can control DC motor positive rotation, reverse rotation or stop rotation by button on the receiver.
With reverse power protection and over current protection.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

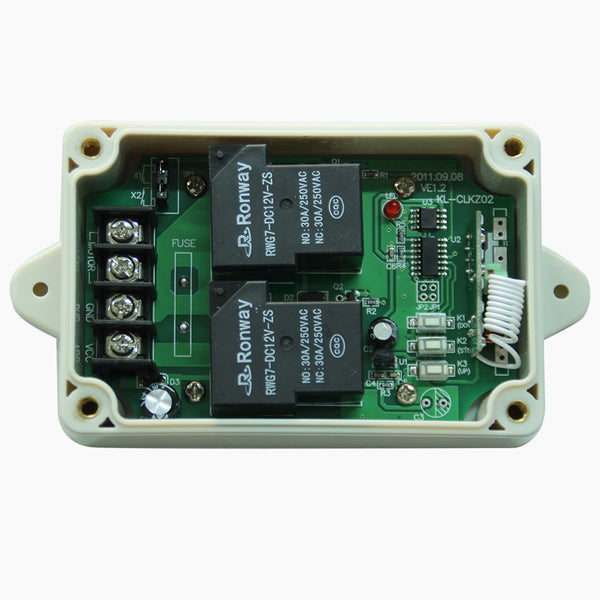

Receiver Parameters:
Model No: S1PF3-DC
Operating Voltage: 12±1VDC (model S1PF3-DC12), or 24±2VDC (model S1PF3-DC24), the operating voltage must be specified when ordering.
Channel: 1 CH, can work with 1 DC motor
Quiescent Current: ≤6mA
Rated Current: 15A
The Maximum Instantaneous Current of Starting Motor: 30A
Control Mode: Interlocking
Working Frequency: 433.92 MHz
Wire range for the terminals: 22-12 AWG
Operating Temperature: -20 ° C to +70 ° C
Case size: 100mm x 67mm x 39mm

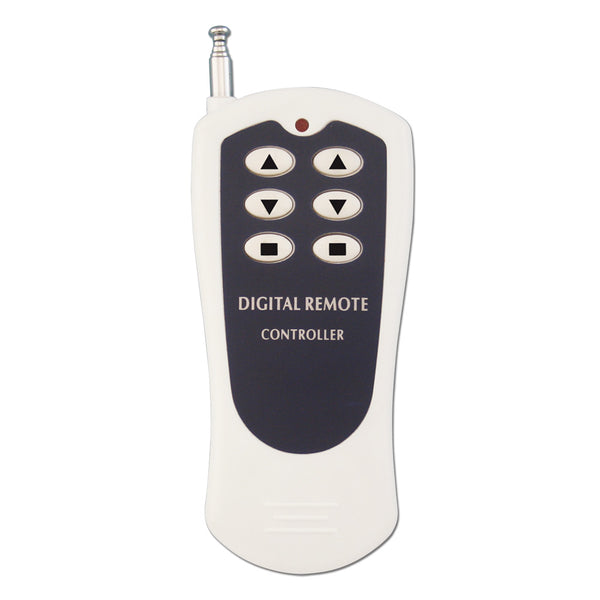

Transmitter Parameters:
Model No.: 0021052 (CV-6-2)
Channel/Button: 6
Button Symbol: Two▲, Two▼, Two■
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433 MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Matching Transmitters:
This receiver can work with different transmitters. Such as model CV-6-2 (500M), or CB-6 (1000M) etc.

Working Range:
With a transmitter (such as CV-6-2) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as transmitter CB-6.

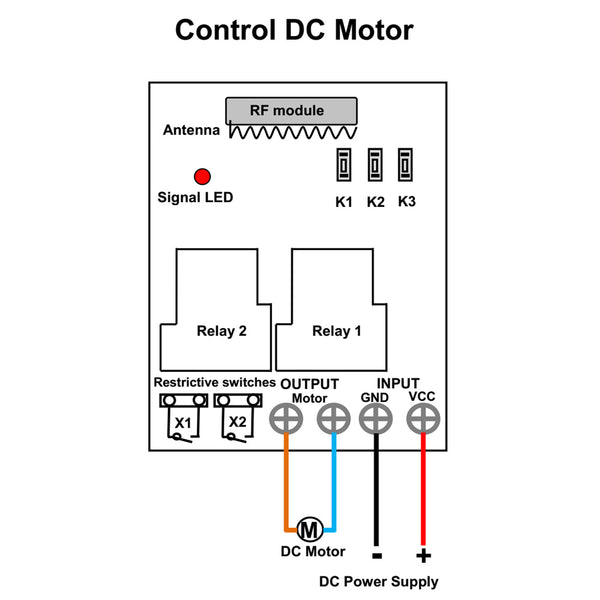

Setting different control modes:
1) Setting Interlocking mode: Connect JP1 or disconnect JP1&JP2
1-1) Function of transmitter CV-6-2:
Press button ▲ on the left: Terminal “Output” output DC power, the motor 1 rotates in positive direction.
Press button ▼ on the left: Terminal “Output” output DC power, the motor 1 rotates in reversal direction.
Press button on the left: The motor 1 stops.
Press button ▲ on the right: Terminal “Output” output DC power, the motor 2 rotates in positive direction.
Press button ▼ on the right: Terminal “Output” output DC power, the motor 2 rotates in reversal direction.
Press button on the right: The motor 2 stops.

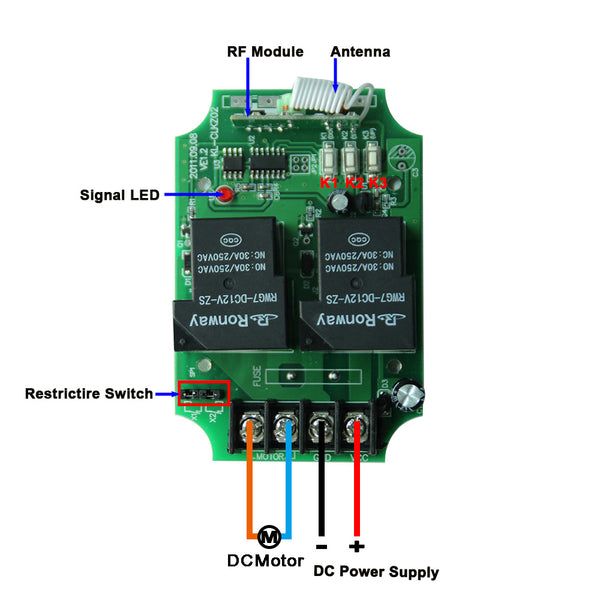

1-2) Function of manual buttons in receiver:
Press button K3 in receiver: terminal “Output” output DC power, the motor rotates in positive direction.
Press button K1 in receiver: terminal “Output” output DC power, the motor rotates in reversal direction.
Press button K2 in receiver: The motor stops.

2) Setting Momentary mode: Connect JP2
2-1) Function of transmitter CV-6-2:
Press and hold button ▲ on the left: Terminal “Output” output DC power, the motor 1 rotates in positive direction; Release button ▲ on the left: The motor 1 stops.
Press and hold button ▼ on the left: Terminal “Output” output DC power, the motor 1 rotates in reversal direction.; Release button ▼ on the left: The motor 1 stops.
Press and hold button▲ on the right: Terminal “Output” output DC power, the motor 2 rotates in positive direction; Release button ▼ on the right: The electric linear actuator 2 stops.
Press and hold button ▼ on the right: Terminal “Output” output DC power, the motor 2 rotates in reversal direction.; Release button ▼ on the right: The motor 2 stops.

2-2) Function of manual buttons in receiver:
Press and hold button K3 in receiver: terminal “Output” output DC power, the motor rotates in positive direction; Release button K3 in receiver: The motor stops.
Press and hold button K1 in receiver: terminal “Output” output DC power, the motor rotates in reversal direction. Release button K1 in receiver: The motor stops.

Restrictive function:

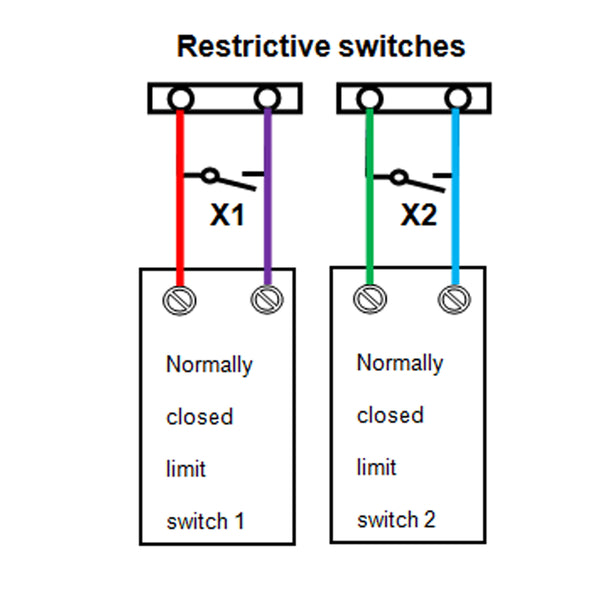

You can connect two restrictive switches to terminals “X1” and “X2”, if the restrictive switch X1 or X2 is connected, the motor will rotate; if the restrictive switch X1 or X2 is disconnected, the motor will stop automatically. That means when the restrictive switch “X1” is connected, the motor will rotate in positive direction; when the restrictive switch “X1” is disconnected, motor will stop automatically. When the restrictive switch “X2” is connected, the motor will rotate in reversal direction; when the restrictive switch “X2” is disconnected, motor will stop automatically.

Package Include:
2 x Receiver: S1PF3-DC12 / S1PF3-DC24
1 x Transmitter: CV-6-2
1 x User manual
