Include:
1 x Receiver Module (Model 0020241)
1 x User manual
Application:
It can be used for super far distance remote control operations in various industrial automation, agricultural automation, and home automation, such as home, factory, house, farm, pasture, vehicle, ship, offshore operations, aerial vehicle, field call, etc.
Features:
Wireless control, easy to install.
It adopts spread spectrum communication technology, which greatly improves the anti-jamming performance.
It can be used as a transmitter module or as a receiver module.
Ultra-high receiving sensitivity, super long working range.
The transmitter module can control the receiver module from any place within a reliable working distance.
The wireless RF signal can pass through walls, floors, doors or windows, but it will lose some operating distance.
Bidirectional Mode with Feedback Function:
The module has a feedback function, so the user can know the working status of receiver module by the buzzer of transmitter module.
When the receiver module is triggered by the signal from the transmitter module, it will immediately transmit a feedback signal to the transmitter module, then the transmitter module will send out a buzzing sound to inform you that the receiver module has been successfully triggered.

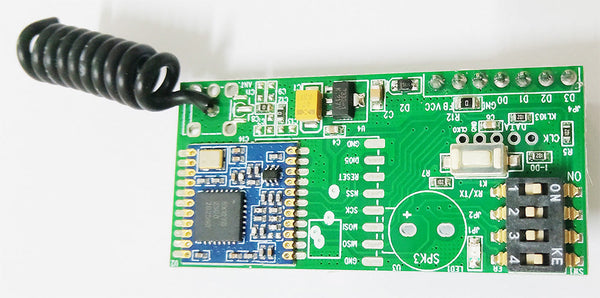

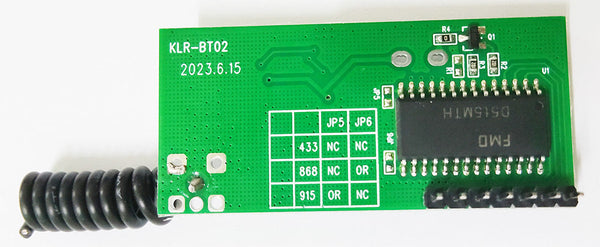

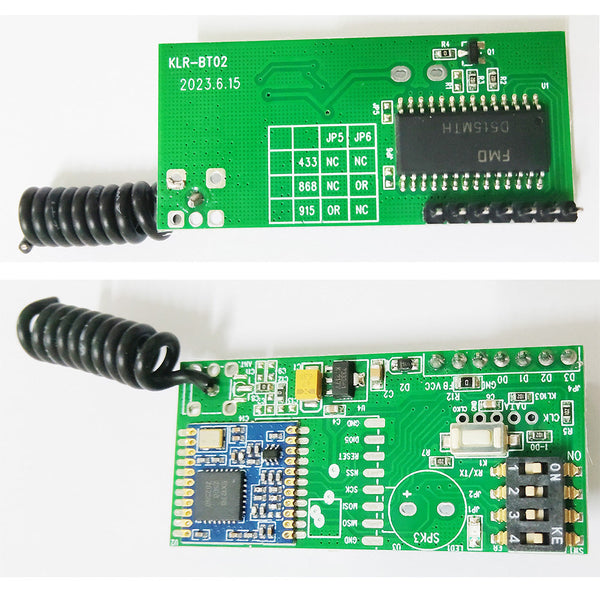

Receiver Module Parameters:
Model: 0020241
Working Voltage: DC 5V~12V (5V is recommended)
Working Current: 16mA
Static Current: 5.5uA
Transmitting Current: 65mA
Working Frequency: 433MHZ
Modulation Method: FSK + LORA
Receiving Sensitivity: -148dBm
Working Distance: 5000M
Working Temperature: -10℃~+70℃
Size: 52 x 28 x 14 mm
Applicable Transmitters:
This receiver module only works with 5000 meters transmitters, model 0021060 CC-1, 0021061 CC-2, 0021062 CC-4, and 0021063 CCW-1, 0021064 CCW-2, 0021066 CCW-4.
Working Range:
Super long range, with a transmitter (such as CC-4) to form a complete set, the maximum working distance can reach 5000M on an open ground.
The maximum working distance is a theoretical data; it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Setting Different Control Modes:
1) Setting Self-locking mode (work with the transmitter CC-4): Turn on the third bit of the dip switch.
Press the button A on the transmitter: The D0 data pin of the receiver module outputs DC power.
Press the button A on the transmitter again: The D0 data pin of the receiver module stops output.
Press the button B on the transmitter: The D1 data pin of the receiver module outputs DC power.
Press the button B on the transmitter again: The D1 data pin of the receiver module stops output.
Press the button C on the transmitter: The D2 data pin of the receiver module outputs DC power.
Press the button C on the transmitter again: The D2 data pin of the receiver module stops output.
Press the button D on the transmitter: The D3 data pin of the receiver module outputs DC power.
Press the button D on the transmitter again: The D3 data pin of the receiver module stops output.
2) Setting Momentary mode (work with the transmitter CC-4): Turn off the second bit and the third bit of the dip switch.
Press and hold the button A on the transmitter: The D0 data pin of the receiver module outputs DC power.
Release the button A on the transmitter: The D0 data pin of the receiver module stops output.
Press and hold the button B on the transmitter: The D1 data pin of the receiver module outputs DC power.
Release the button B on the transmitter: The D1 data pin of the receiver module stops output.
Press and hold the button C on the transmitter: The D2 data pin of the receiver module outputs DC power.
Release the button C on the transmitter: The D2 data pin of the receiver module stops output.
Press and hold the button D on the transmitter: The D3 data pin of the receiver module outputs DC power.
Release the button D on the transmitter: The D3 data pin of the receiver module stops output.
3) Setting Interlocking mode (work with the transmitter CC-4): Turn on the second bit of the dip switch.
Press the button A on the transmitter: The D0 data pin of the receiver module outputs DC power; The other three data pins of the receiver module stop outputting.
Press the button B on the transmitter: The D1 data pin of the receiver module outputs DC power; The other three data pins of the receiver module stop outputting.
Press the button C on the transmitter: The D2 data pin of the receiver module outputs DC power; The other three data pins of the receiver module stop outputting.
Press the button D on the transmitter: The D3 data pin of the receiver module outputs DC power; The other three data pins of the receiver module stop outputting.
