120V 220V Wireless Remote Control Switch Kit 4 Channels 10A (Model: 0020226)

Regular price $120.00

Shipping calculated at checkout.

Package Include:

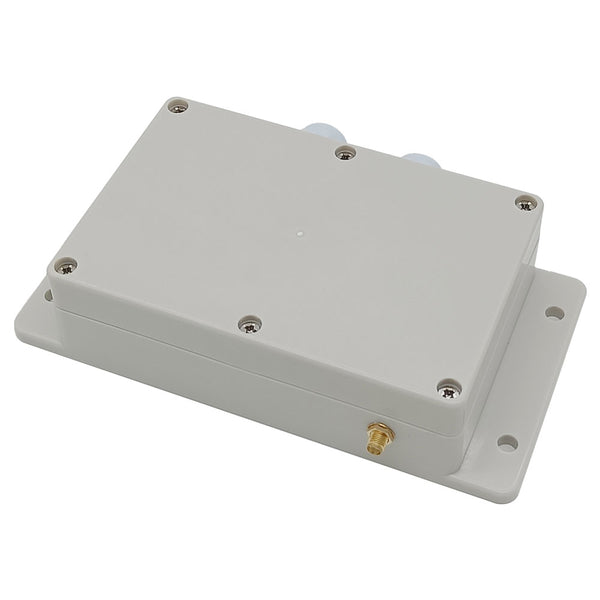

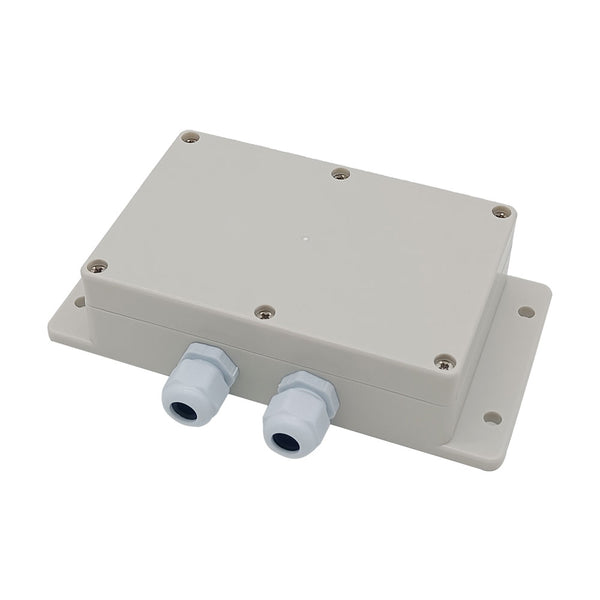

1 x Receiver: S4XW-AC-ANT3

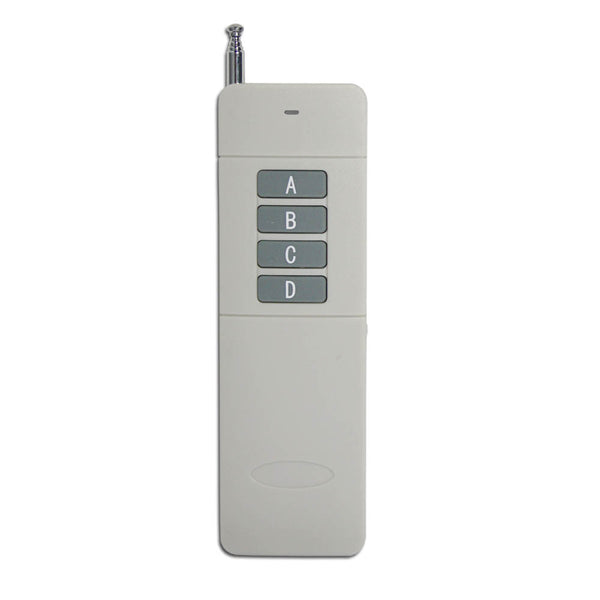

1 x Transmitter: CC-4
1 x User manual

Introduction:
This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It uses a transceiver chip to implement bidirectional communication. Its ideal working distance is up to 5 kilometers, which is an excellent device for remote control and long-distance communication.

Application:
This long distance 5000 meters wireless remote control switch kit with 4 Channels AC power 120V 220V 10A input output radio receiver and RF transmitter.
This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control AC electrical equipments, such as lamp, light, fan, motor, water pump, solenoid valve, door lock, gates, etc.

Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.
Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.

Receiver Parameters:
Model No.: S4XW-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 4 CH
Output Type: 100~240VAC (110V/120V/220V/240V)
Maximum Load Current: 10A / each channel
Wire Range of Terminals: 22-12AWG
3 Selectable Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20°C ~ +70°C
PCB size: 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches)
Case size: 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches)

Transmitter Parameters:
Model: 0021062 (CC-4)
Channel / Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22-9V battery)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)
With power switch on the side.
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)

Matching Transmitters:
This receiver only works with 5000 meters transmitters, model CC-4 (5000 meters / 15000 ft range) or CCW-4 (waterproof, 5000 meters / 15000 ft range).

Working Range:
With the transmitter (such as CC-4) forming a complete set, the maximum working distance may reach 5000 meters in an open area.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.

Usage:
The receiver can be used to control AC 110~240V equipments.

Setting different control modes:
1) Setting Self-locking mode (work with the transmitter CC-4): Turn on the third bit of the dip switch.
Press the button A on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on.
Press the button A again: The terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on.
Press the button B again: The terminals “OUT2” stops outputting, and the connected lamp 2 is turned off.
Press the button C on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on.
Press the button C again: The terminals “OUT3” stops outputting, and the connected lamp 3 is turned off.
Press the button D on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on.
Press the button D again: The terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.

2) Setting Momentary mode (work with the transmitter CC-4): Turn off the second bit and the third bit of the dip switch.
Press and hold the button A on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on.
Release the button A: The terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on.
Release the button B: The terminals “OUT2” stops outputting, and the connected lamp 2 is turned off.
Press and hold the button C on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on.
Release the button C: The terminals “OUT3” stops outputting, and the connected lamp 3 is turned off.
Press and hold the button D on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on.
Release the button D: The terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.

3) Setting Interlocking mode (work with the transmitter CC-4): Turn on the second bit of the dip switch.
Press the button A on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button B on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button C on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button D on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
