Remote Control Switch Kit with 12 Wireless Receivers And A RF Transmitter (Model: 0020364)

Regular price $458.00

Shipping calculated at checkout.

This remote control switch kit is a 12 buttons transmitter long range control 12 DC power wireless receivers.

Application:
This remote control receiver kit with 12 DC 6V 9V 12V 24V high power 30A of wireless switch and a 12 buttons RF transmitter.
This RF wireless switch (receiver) is an electric device with 1 channel dry relay output (Normally open and normally closed), it and the transmitter form a radio transmitter and receiver system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control lamp/light, fan, motor, pump, solenoid valve, door lock, lawn mower, heater, air conditioner, gates, curtains, etc.

Feature:
Wireless control, easy to install.
Power Supply: 4 working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

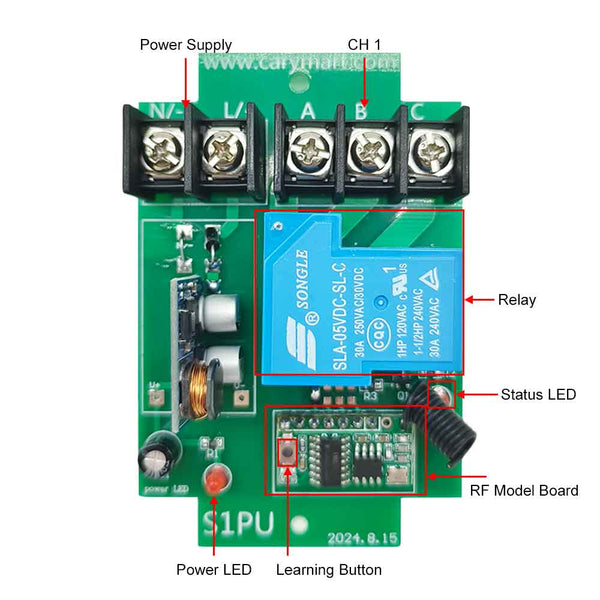

Receiver Parameters:
Model No. S1PUB-DC06 / S1PUB-DC09 / S1PUB-DC12 / S1PUB-DC24
Power Supply (Operating Voltage): DC6V (S1PUB-DC06), DC9V±1V (S1PUB-DC09), DC12V±1V (S1PUB-DC12), DC24V±1V (S1PUB-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 1 way
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 30A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 90mm x 59mm x 18mm
Case size: 100mm x 68mm x 50mm

Transmitter Parameters:
Model No.: 0021022 (CV-12)
Channel/Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Matching Transmitters:

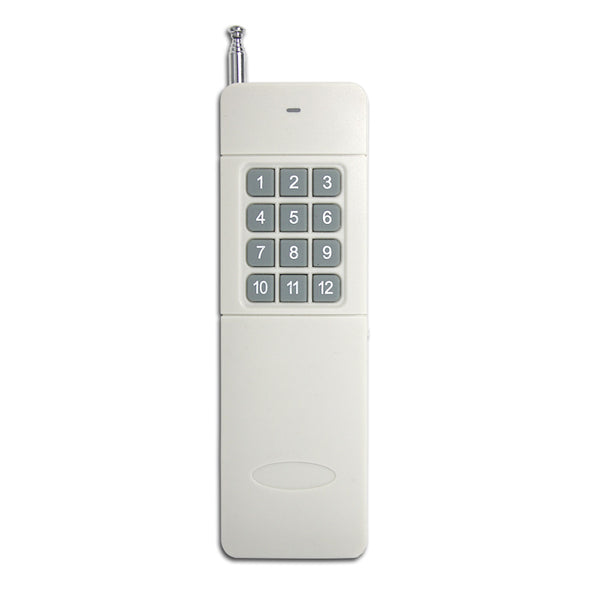

The receiver can work with different transmitters, such as model CV-12 (500 Meter / 1500 feet range) or CB-12 (1000 Meter / 3000 feet range).


Working Range:
With a transmitter (such as CV-12) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver or use a high-power transmitter, such as CB-12 transmitter.

Setting different control modes:

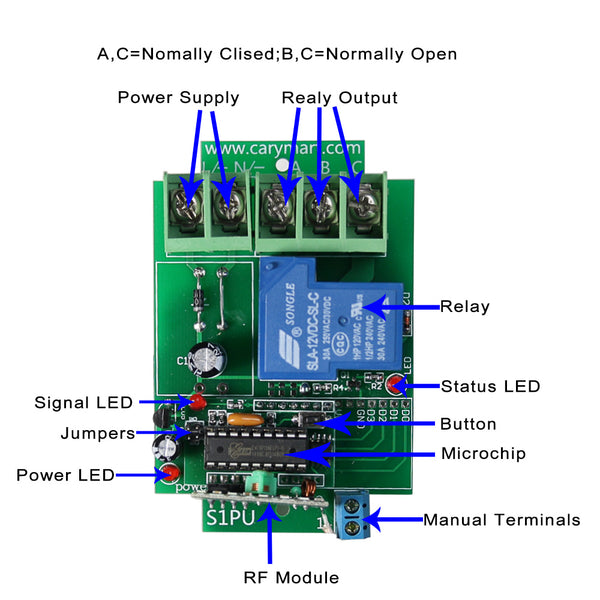

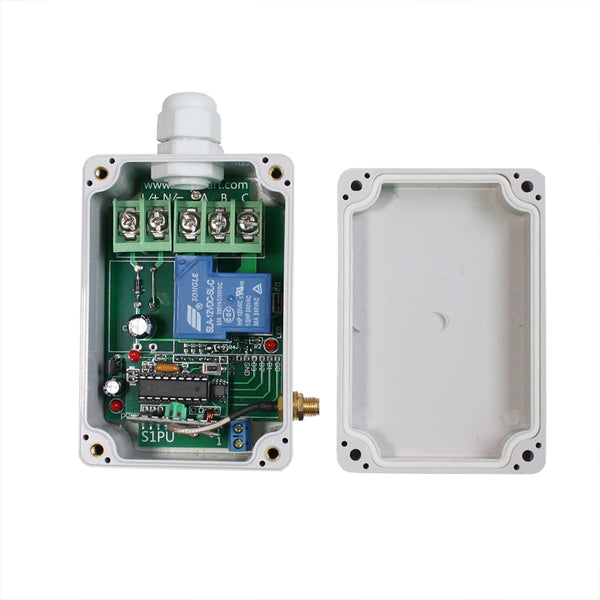

1) Setting control mode Self-locking: Only connect Jumper-2.
Control mode Self-locking (working with transmitter CV-12): Press -> On; Press again -> Off.
Press the button 1 on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on.
Press the button 1 again: The relay in the receiver 1 is deactivated, and the connected lamp is turned off.
Press the button 2 on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on.
Press the button 2 again: The relay in the receiver 2 is deactivated, and the connected lamp is turned off.
...
Press the button 12 on the transmitter: The relay in the receiver 12 is activated, and the connected lamp is turned on.
Press the button 12 again: The relay in the receiver 12 is deactivated, and the connected lamp is turned off.

2) Setting control mode Momentary: Only connect Jumper-1.
Control mode Momentary (working with transmitter CV-12): Press and hold -> On; Release -> Off.
Press and hold the button 1 on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on.
Release the button 1: The relay in the receiver 1 is deactivated, and the connected lamp is turned off.
Press and hold the button 2 on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on.
Release the button 2: The relay in the receiver 2 is deactivated, and the connected lamp is turned off.
...
Press and hold the button 12 on the transmitter: The relay in the receiver 12 is activated, and the connected lamp is turned on.
Release the button 12: The relay in the receiver 12 is deactivated, and the connected lamp is turned off.

3) Setting control mode Interlocking: Disconnect Jumper-1 and Jumper-2.
Control mode Interlocking (working with transmitter CV-12): Press -> On, Press another button -> Off.
Press the button 1 on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on; Relays in 11 other receivers are deactivated, and connected lamps are turned off.
Press the button 2 on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on; Relays in 11 other receivers are deactivated, and connected lamps are turned off.
...
Press the button 12 on the transmitter: The relay in the receiver 12 is activated, and the connected lamp is turned on; Relays in 11 other receivers are deactivated, and connected lamps are turned off.

Package Include:

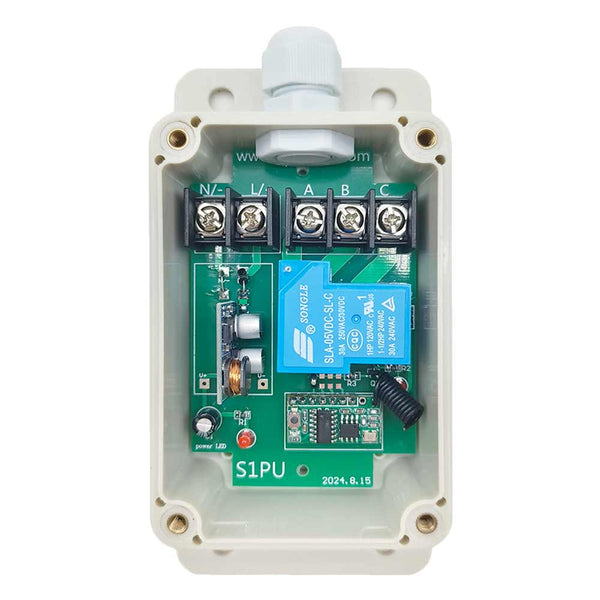

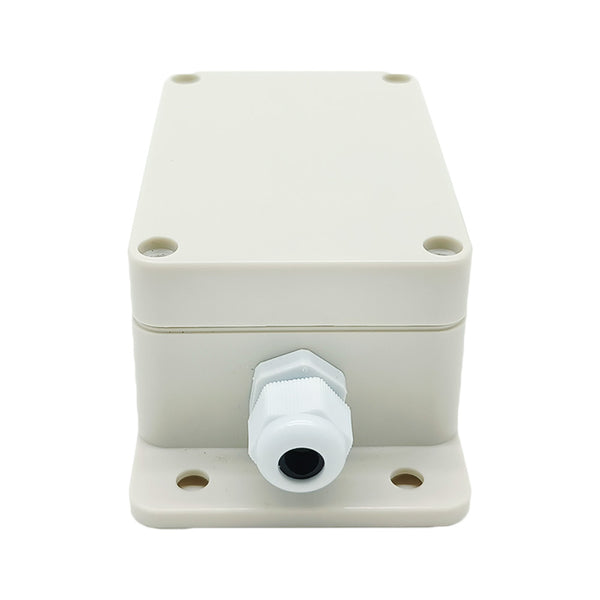

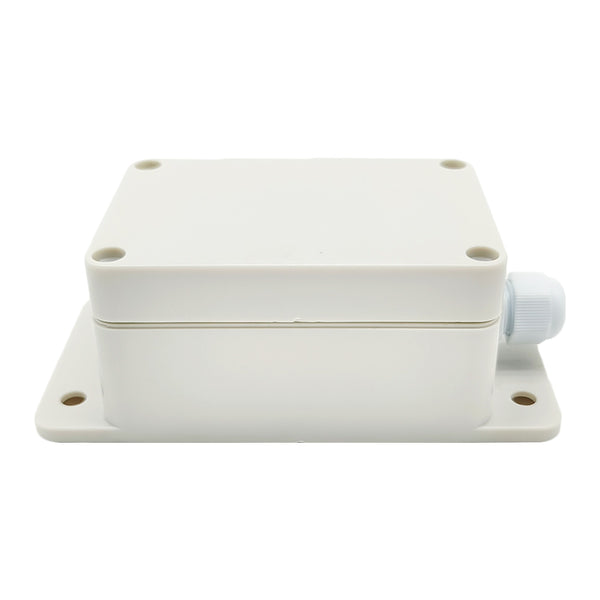

12 x Receiver: S1PUB-DC-ANT3

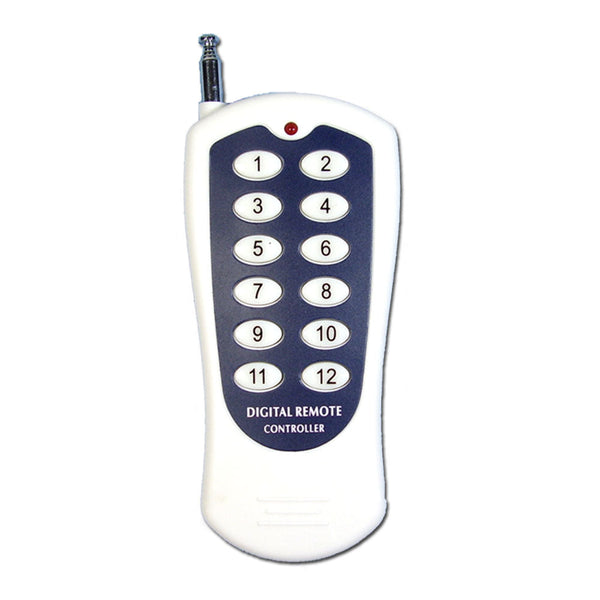

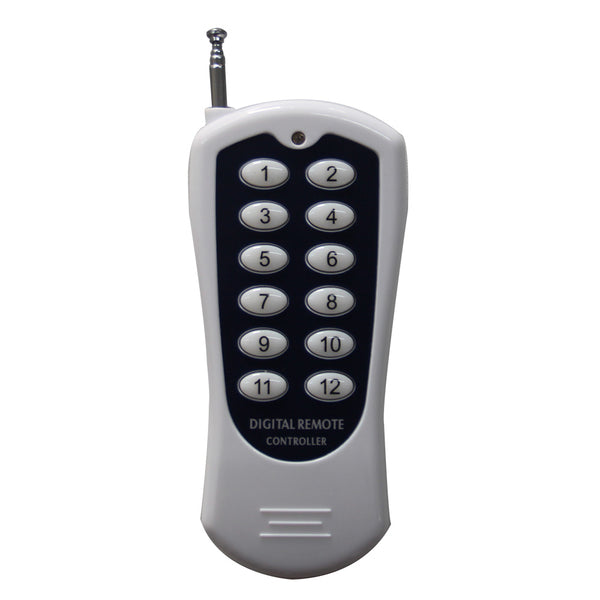

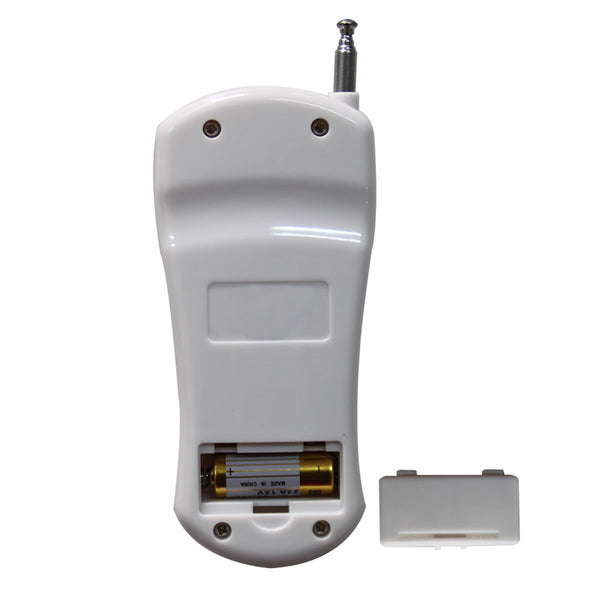

1 x Transmitter: CV-12
1 x User manual
