Note:

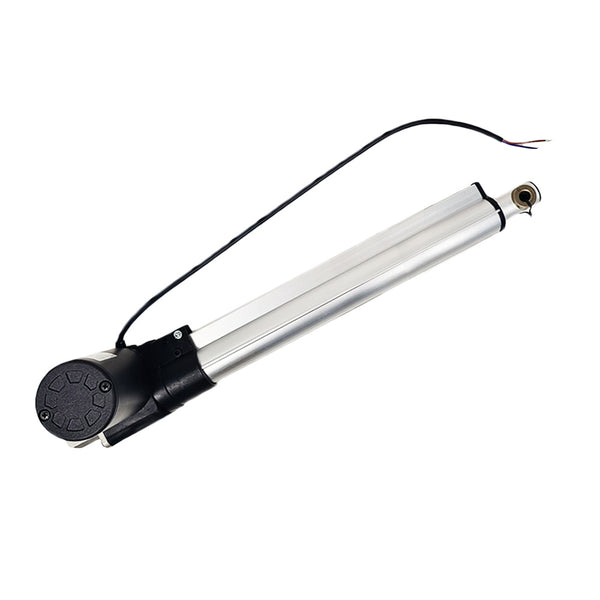

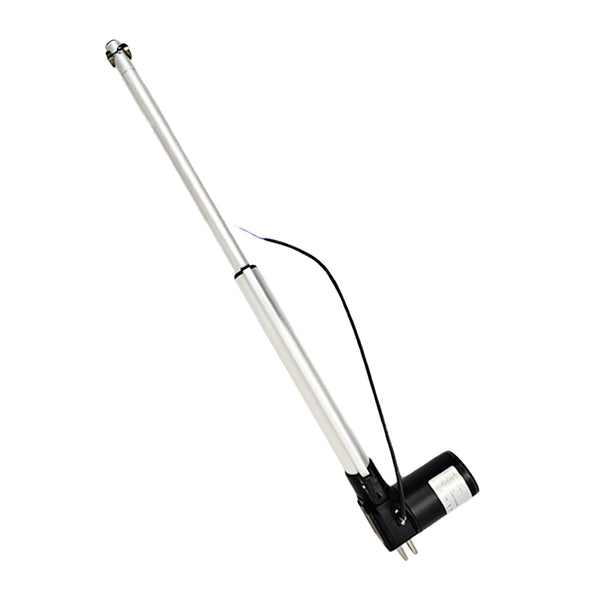

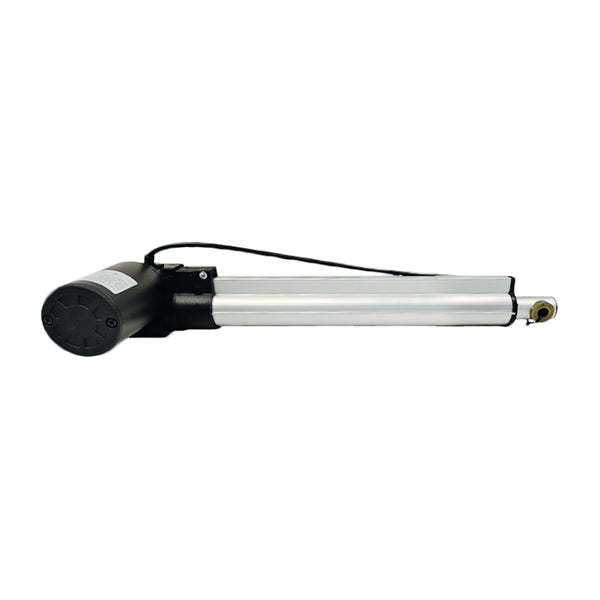

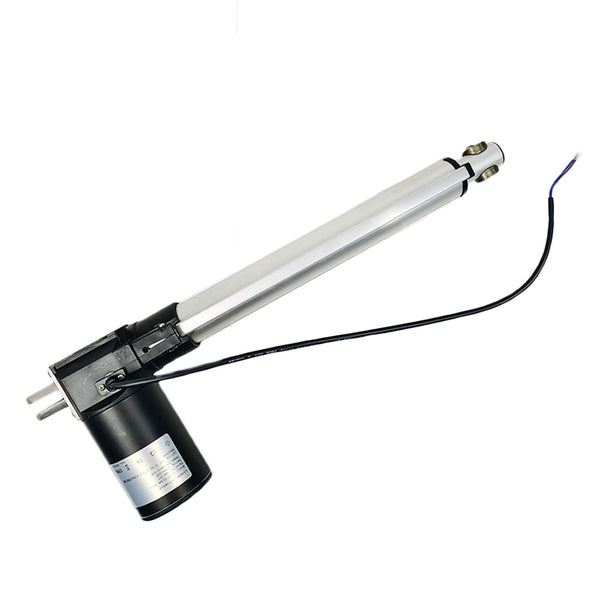

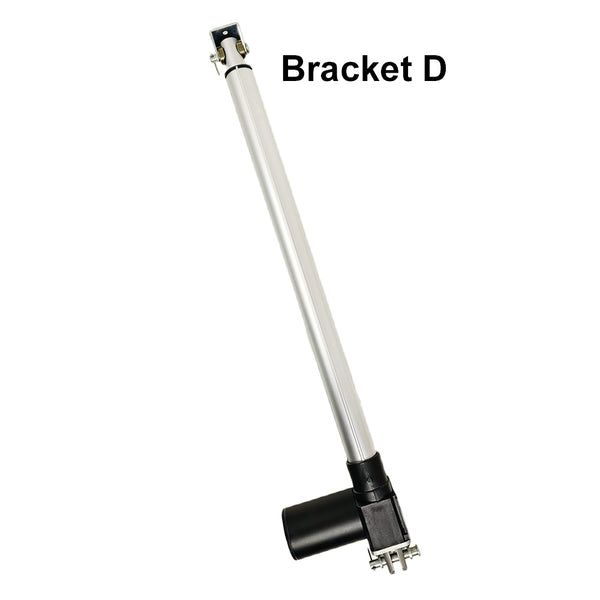

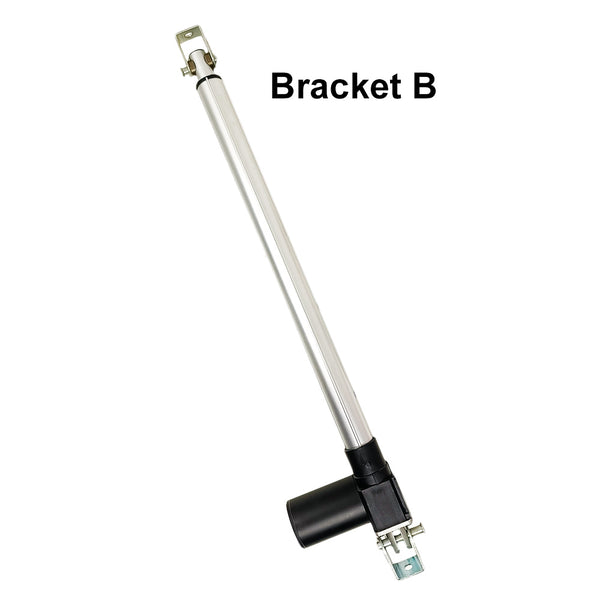

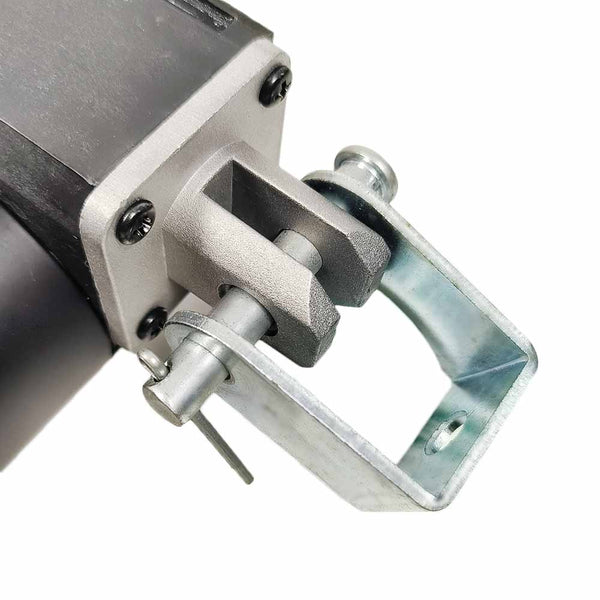

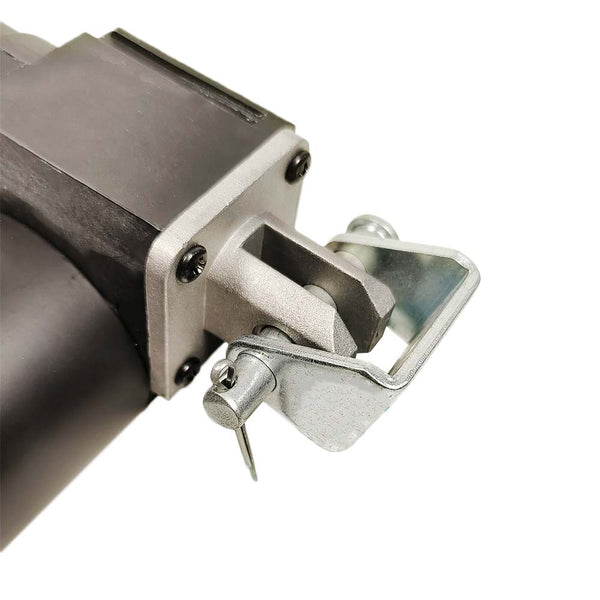

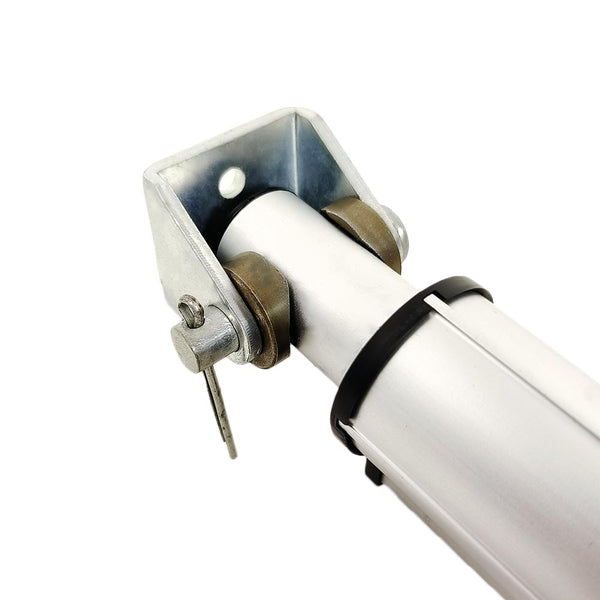

1) This product does not contain a mounting brackets. It compatible Bracket B and Bracket D, please click here to choose and buy.
2) If you need a DC 12V 24V power supply, please click here to choose and buy.
3) If you need external limit switch, please click here to choose and buy.
4) If you need manual control switch, please click here to choose and buy.
5) If you need a wireless remote control switch kit, please click here to buy.
Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
High strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Advanced waterproof and dustproof technology
Low power consumption and low noise

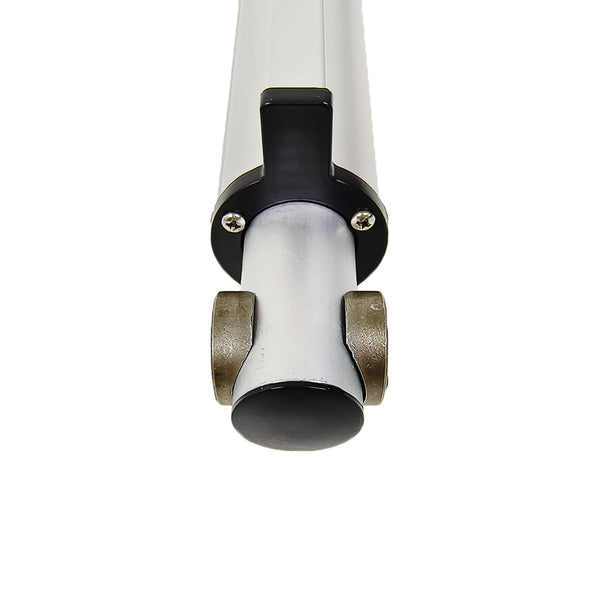

Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
With auto-locking capability to hold load position after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V
Stroke: 8 in or 200 mm

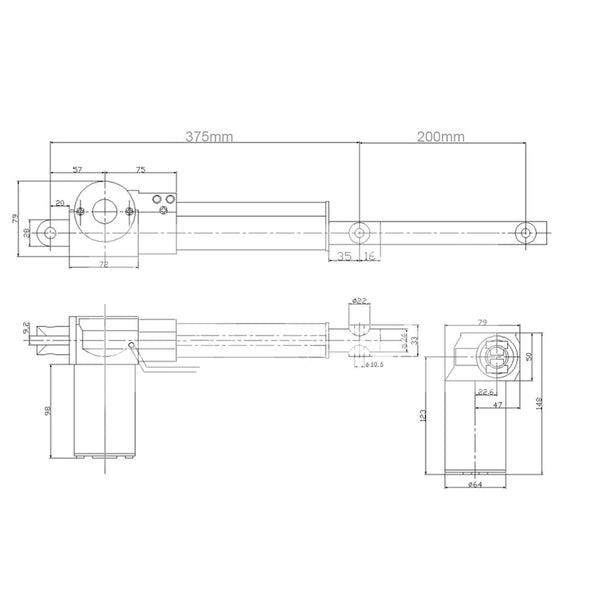

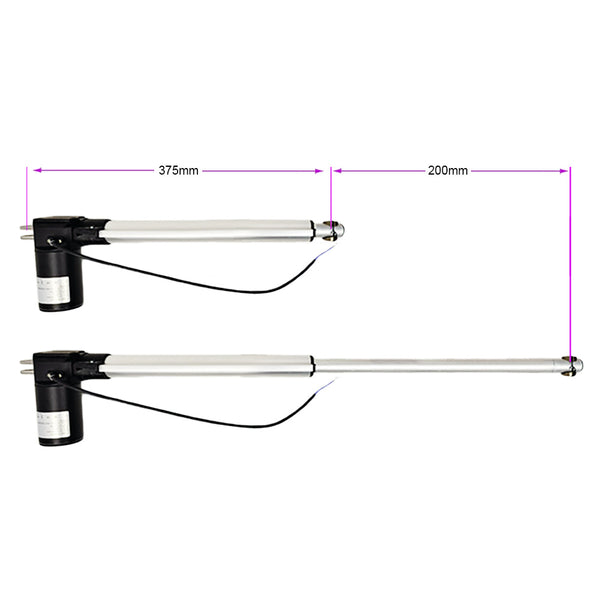

Center distance between two mounting holes when the linear actuator is fully retracted: 375 mm
Center distance between two mounting holes when the linear actuator is fully extended: 575 mm
Optional speed: 3.5±0.5mm/s, 5±1mm/s, 7±1.5mm/s, 9±2mm/s, 14±3mm/s, 18±4mm/s, 28±6mm/s, 38±8mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 6000N / 600 Kgs / 1300 lbs at 3.5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 1~2A at 12V or 0.5~1A at 24V
Full load current: 6~12A at 12V or 3~6A at 24V
Please use a 12V 10A or 24V 5A power supply to power a linear actuator, or use a 12V 20A or 24V 10A power supply to power two linear actuators, or use a 12V 50A or 24V 25A power supply to power three or four linear actuators.
Shaft diameter: 24mm
The diameter of the mounting holes for the front and rear connectors:10mm [0.393in]
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 10%, max 3mins continuous use
Service life: approx. 25,000 cycles
Cable length of the normal linear actuator: 1000±10%mm [40 in]
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 42dB~46dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.
| Different speeds and corresponding maximum thrust | |||
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
| 3.5mm/s | 3mm/s | 6000N / 600 kg / 1300 lbs | 6500N / 650 kg / 1400 lbs |
| 5mm/s | 3.5mm/s | 5500N / 550 kg / 1200 lbs | 6000N / 600 kg / 1300 lbs |
| 7mm/s | 5mm/s | 3500N / 350 kg / 770 lbs | 3500N / 350 kg / 770 lbs |
| 9mm/s | 7mm/s | 3000N / 300 kg / 660 lbs | 3000N / 300 kg / 660 lbs |
| 14mm/s | 10mm/s | 2000N / 200 kg / 450 lbs | 1000N / 100 kg / 200 lbs |
| 18mm/s | 13mm/s | 1500N / 150 kg / 330 lbs | 800N / 80 kg / 180 lbs |
| 28mm/s | 20mm/s | 1200N / 120 kg / 260 lbs | 500N / 50 kg / 110 lbs |
| 38mm/s | 26mm/s | 1000N / 100 kg / 200 lbs | 300N / 30 kg / 60 lbs |
Production Time and Return or Exchange Policy
The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
