1) This product does not contain a mounting brackets; It compatible Bracket E for the head and bracket A or C for the bottom, if you need it, please click here.
2) If you need DC power supply for linear actuator, please click here.
3) If you need external limit switch for linear actuator, please click here.
4) If you need manual switch or controller for linear actuator, please click here.
5) If you need wireless remote control switch for linear actuator, please click here.
Mainly used for doors, windows, cars, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
High-quality products and high-quality services
High strength wear-resistant gear

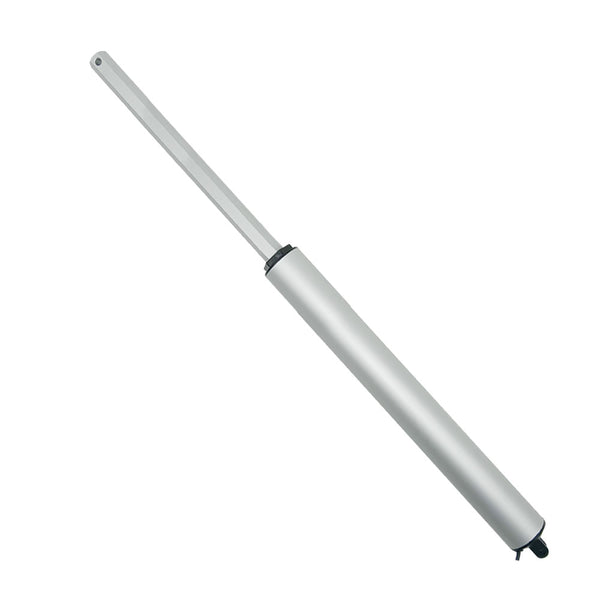

Aluminum alloy outer tube and telescopic inner tube
Strong thrust, up to 200N / 20 Kgs / 40 lbs
Multiple speed options, from 45 mm/second to 230 mm/second
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping movement, and no power supply is required.
Optional working voltage: DC 12V or DC 24V
Stroke range: 12 inches or 300mm
Optional speed: 45mm±5mm/s, or 80mm±10mm/s, or 140mm±15mm/s, or 230mm±25mm/s
Max Load capacity: 200N / 20 Kgs / 40 lbs at 45mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.)
No-load working current: about 1.5A
Maximum full load working current: about 3-6A
Please use a 12V/10A or 24V/5A power supply to power a linear actuator or use a 12V/20A or 24V/10A power supply to power two linear actuators.
Outer tube diameter: 55mm
Shaft diameter: 28mm
Mounting holes diameter: 8mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 20% at 100% load, Max 2mins continuous use
Plug Standard: Ordinary Two-core Wire
Environment temperature: -26℃ to 85℃
Operating Noise: about 46dB~52dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54
After linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.
|Thrust and speed sheet|
|Thrust||200N / 40 lbs / 20Kg||100N / 20 lbs / 10Kg||70N / 14 lbs / 7 Kg||50N / 10 lbs / 5 Kg|
