1) This product does not contain a mounting brackets.
2) If you need DC 12V power supply for linear actuator, please click here.
3) If you need DC 24V power supply for linear actuator, please click here.
4) If you need external limit switch for linear actuator, please click here.
5) If you need manual switch or controller for linear actuator, please click here.
6) If you need wireless remote control switch for linear actuator, please click here.
Application:
Mainly used for doors, windows, cars, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and aluminum alloy outer tube, good corrosion resistant
Strong thrust, up to 120N / 12 Kgs / 25 lbs
Two speed options
Multiple stroke options, from 50 mm to 300 mm
We can customize any stroke length from 50mm to 300mm, such as 70mm, 125mm, 270mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise

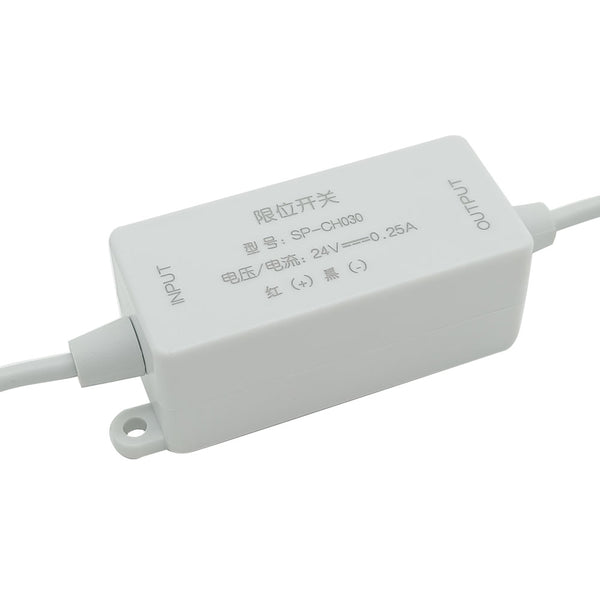

External overcurrent protection, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 12 inches or 300 mm
Optional speed: 9.5mm±1mm/s, or 26mm±2mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 120N / 12 Kgs / 25 lbs at 6.5mm/second, or 30N / 3 Kgs / 6 lbs at 22mm/second.
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
Please use a 12V/3A or 24V/3A power supply to power a linear actuator.

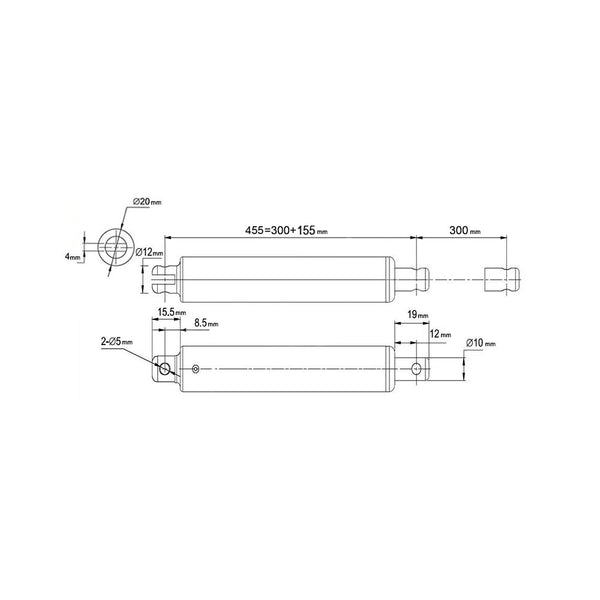

Outer tube diameter: 20mm
Telescopic tube diameter: 10mm
Mounting holes diameter: 5mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Stainless Steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 10%

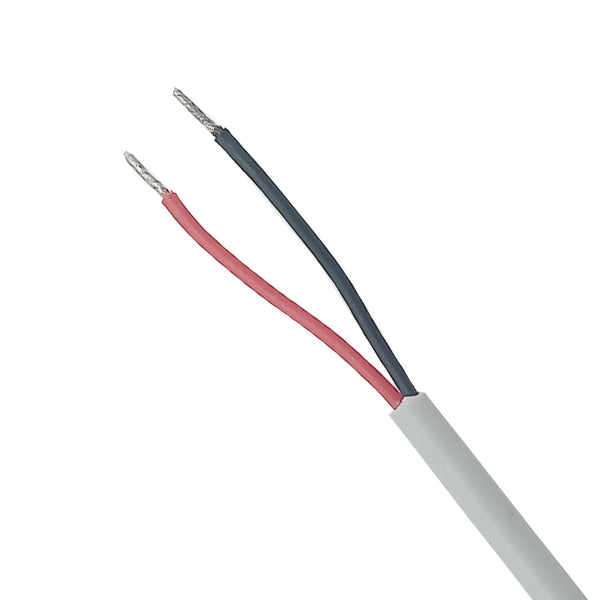

Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 38dB~42dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54
Operation:

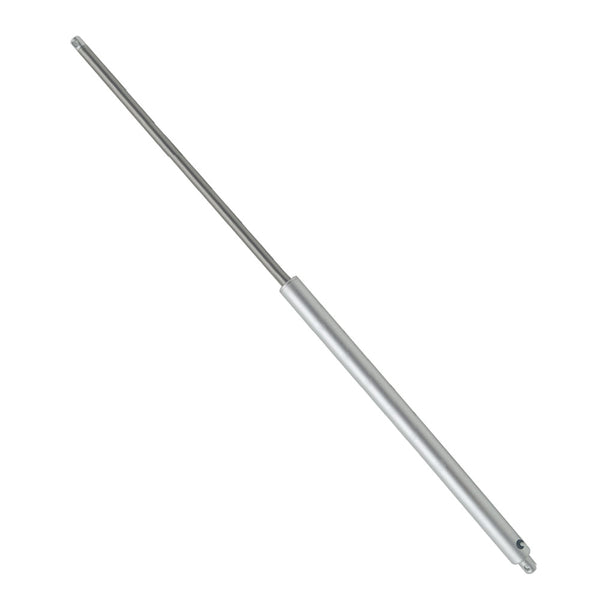

After linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.
Different speeds and corresponding maximum thrust |
||||||
No-load Speed | Full load Speed | Max Load | Working Current | |||
9.5mm±1mm/second | 6.5mm±1mm/second | 120N / 12 Kgs / 25 lbs | 12V version | 24V version | ||
No Load | Full Load | No Load | Full Load | |||
26mm±2mm/second | 22mm±2mm/second | 30N / 3 Kgs / 6 lbs | 0.1A | 0.4A | 0.05A | 0.25A |
0.15A | 0.52A | 0.08A | 0.3A |
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
