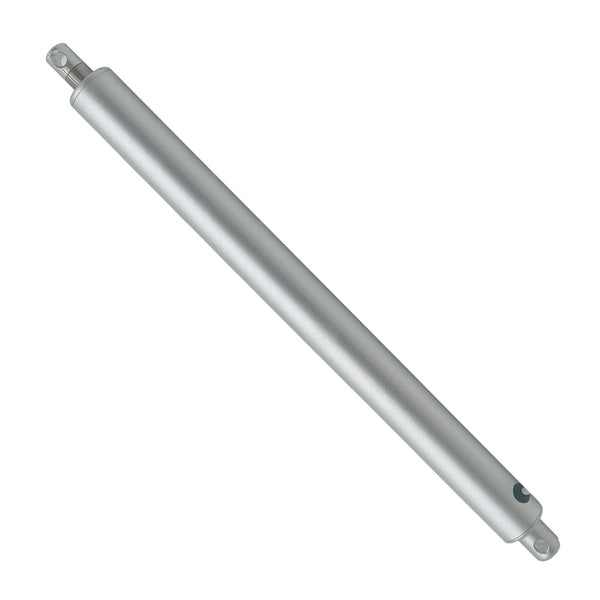

DC 12V 24V Mini Pen Type Small Electric Linear Actuator Stroke 8 Inch 200mm (Model: 0041584)

Regular price $135.00

Shipping calculated at checkout.

1) This product does not contain a mounting brackets.
2) If you need DC 12V power supply for linear actuator, please click here.
3) If you need DC 24V power supply for linear actuator, please click here.
4) If you need external limit switch for linear actuator, please click here.
5) If you need manual switch or controller for linear actuator, please click here.
6) If you need wireless remote control switch for linear actuator, please click here.

Mainly used for doors, windows, cars, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.

High-quality products and high-quality services
High strength wear-resistant gear
Aluminum alloy outer tube and stainless steel telescopic rod
Strong thrust, up to 120N / 12 Kgs / 25 lbs
Two speed options
Advanced waterproof and dustproof technology
Low power consumption and low noise design
External overcurrent protection, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping movement, and no power supply is required.
Overload protection

Optional working voltage: DC 12V or DC 24V
Stroke range: 8 inches or 200 mm
Optional speed: 7.5mm±1mm/s, or 15mm±2mm/s
Max Load capacity: 120N / 12 Kgs / 25 lbs at 7mm/second, or 30N / 3 Kgs / 6 lbs at 15mm/second.
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
Please use a 12V/3A or 24V/3A power supply to power a linear actuator.
Outer tube diameter: 20mm
Mounting holes diameter: 5mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Stainless Steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 10%
Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 38dB~42dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54

After linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.


Max Load

Working Current

12V version

24V version

No Load

Full Load

No Load

Full Load


6 lbs / 3Kg / 30N






25 lbs / 12Kg / 120N





The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
