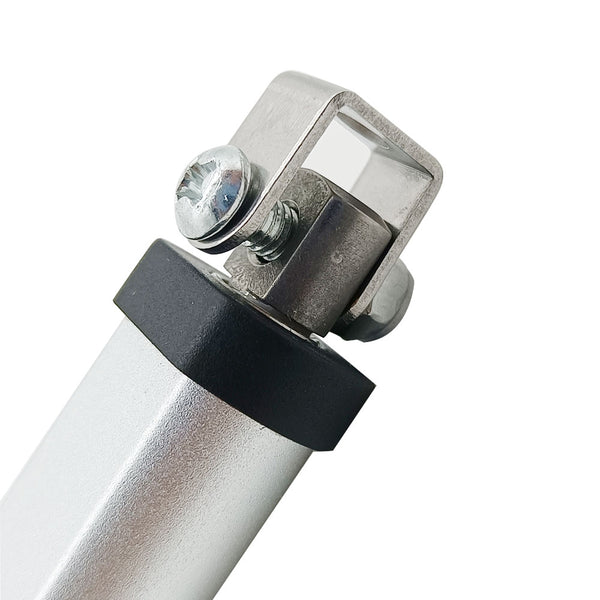

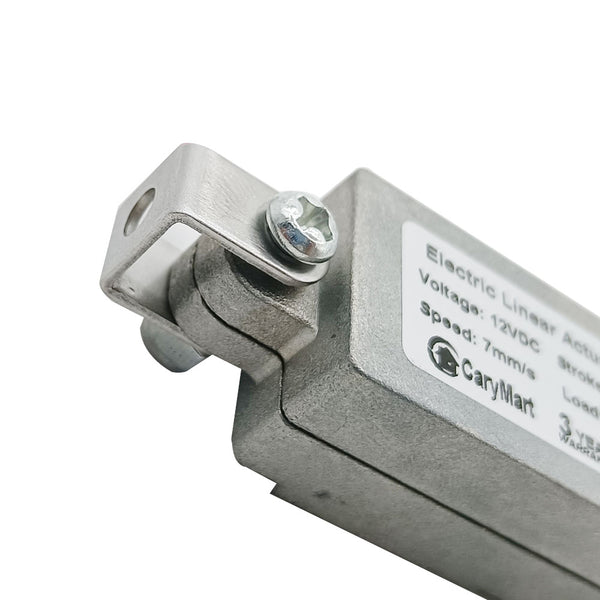

1) This product does not contain a mounting brackets, if you need it, please click here.
2) If you need DC power supply for linear actuator, please click here.
3) If you need external limit switch for linear actuator, please click here.
4) If you need manual switch or controller for linear actuator, please click here.
5) If you need wireless remote control switch for linear actuator, please click here.

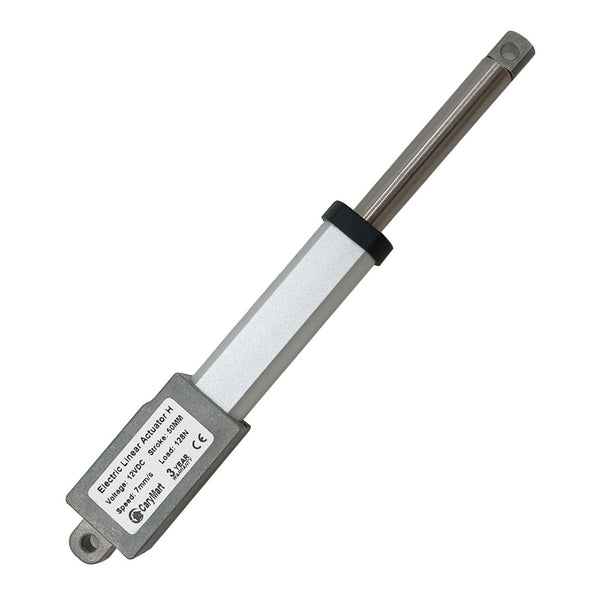

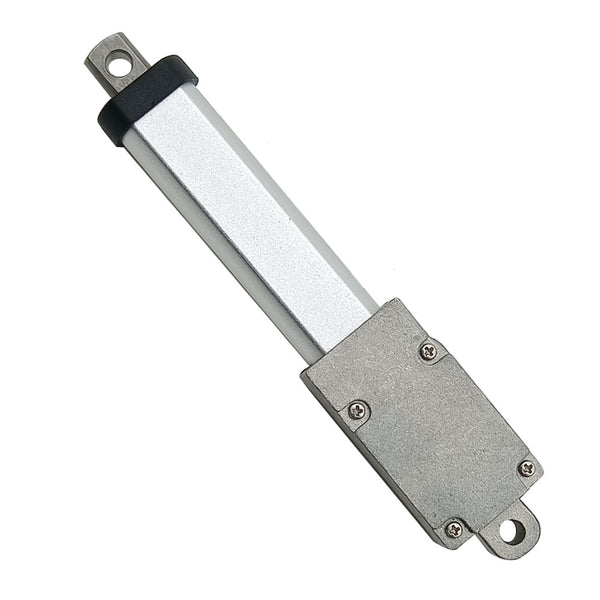

These miniature linear actuators are small, light, quiet and very durable. Suitable for applications that require limited space and minimal force. Mainly used for small doors, windows, furniture, medical & health equipment, agricultural machinery, vehicles, ships, drones, aircraft models, car models, ship models, robotics, remote controls (RC) and so on. It can open, close, push, pull, rise and drop these devices.
Feature:
High-quality products and high-quality services
Polyamide housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Strong thrust, up to 188N / 19 Kgs / 42 lbs
Multiple speed options, from 5 mm/second to 150 mm/second
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches (not adjustable), linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: 12V DC
Optional stroke: 50mm

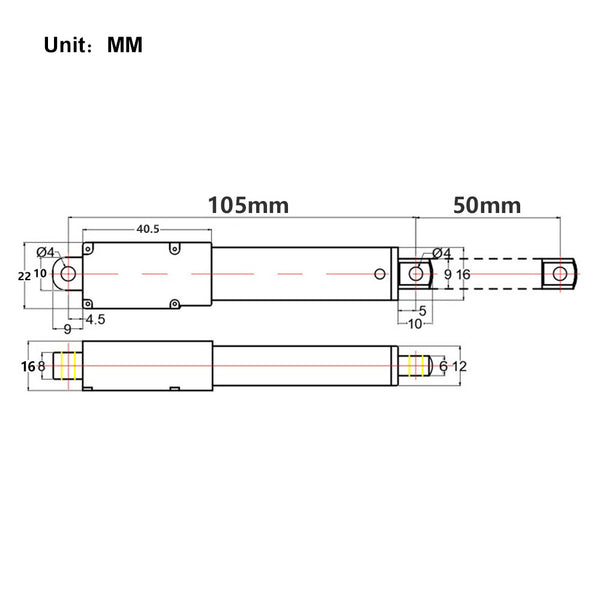

Installation length: 55mm + Stroke
Optional speed: 5mm±1mm/s, 7mm±2mm/s, 9.5mm±2mm/s, 15mm±3mm/s, 30mm±5mm/s, 50mm±10mm/s, 150mm±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 188N / 19 Kgs / 42 lbs at 5mm/second
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.02~0.04A
Full load current: 0.2~0.3A
Outer tube diameter: 12*16mm

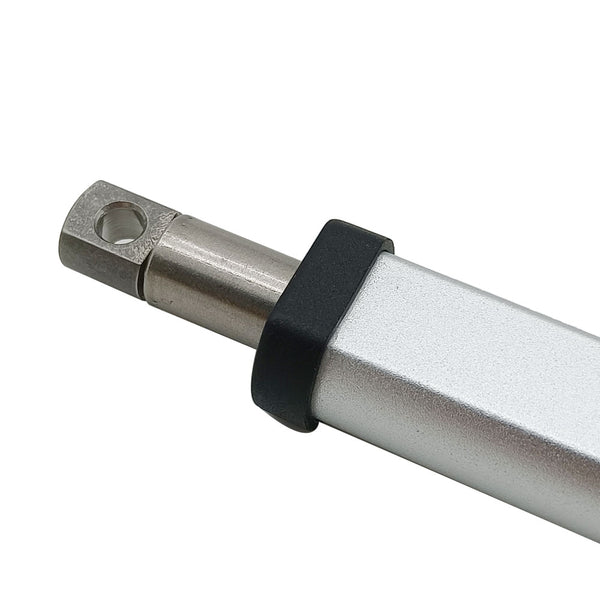

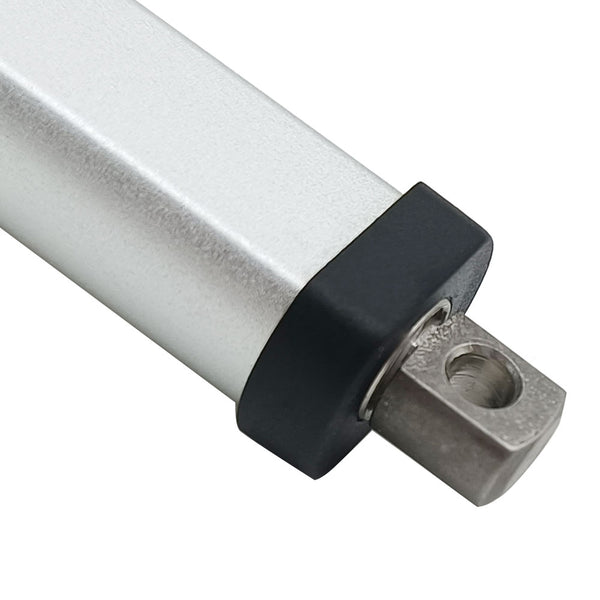

Telescopic tube diameter: 6*9mm
Mounting holes diameter: 4mm

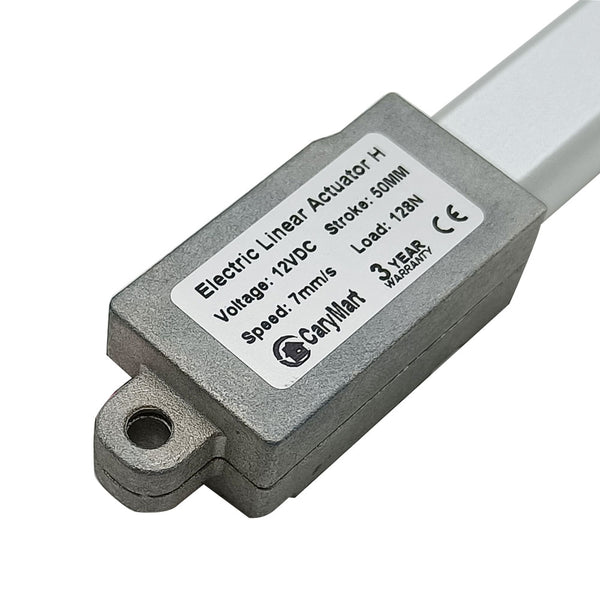

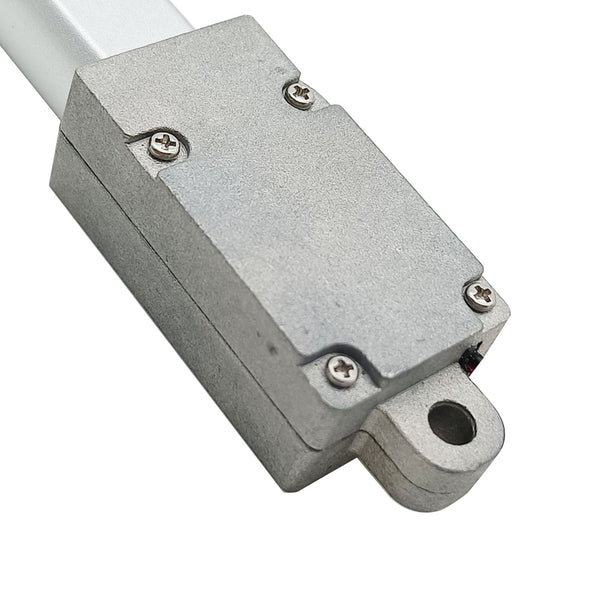

Housing Material: Zinc Alloy
Stroke Rod Material: Stainless Steel
Outer Tube Material: Aluminum Alloy
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 10%

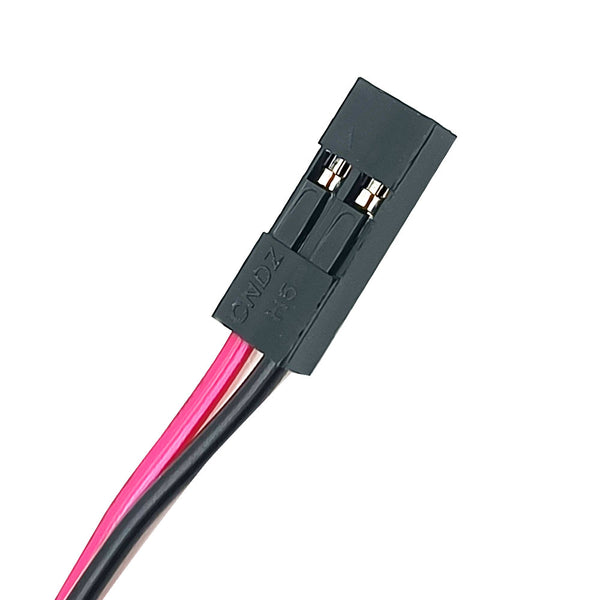

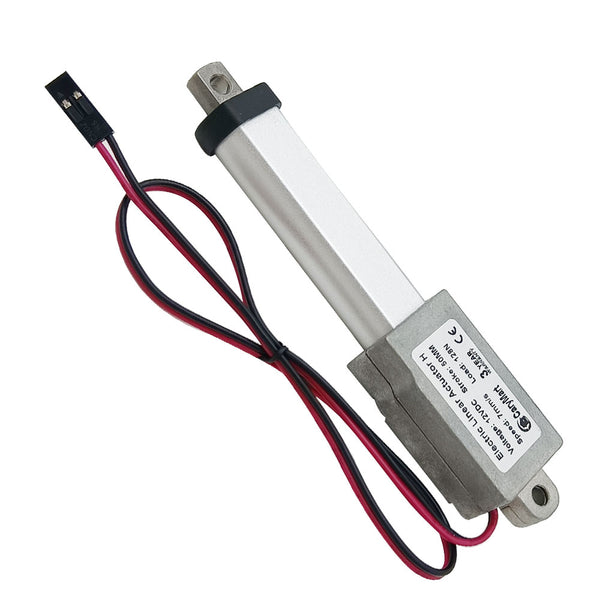

Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 45dB~55dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54
Operation:
When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.
Thrust and speed sheet:
Speed | Thrust |
5mm/s | 188N / 19 kg / 42 lbs |
7mm/s | 128N / 13 kg / 29 lbs |
9.5mm/s | 96N / 9.8 kg / 21 lbs |
15mm/s | 64N / 6.5 kg / 14 lbs |
30mm/s | 32N / 3.2 kg / 7 lbs |
50mm/s | 19N / 1.9 kg / 4 lbs |
150mm/s | 6N / 0.6 kg / 1.3 lbs |
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
