3 Position ON-OFF-ON Toggle Switch for Linear Actuator (Model: 0043013)

Regular price $15.00

Shipping calculated at checkout.

Description:
This DC 12V 24V 3 position ON-OFF-ON manual switch is called a toggle switch, also called a transfer switch.
It can manual control the extension and retraction of DC electric linear actuator.
Maximum Load current: 15A
Main Function: ON-OFF-ON

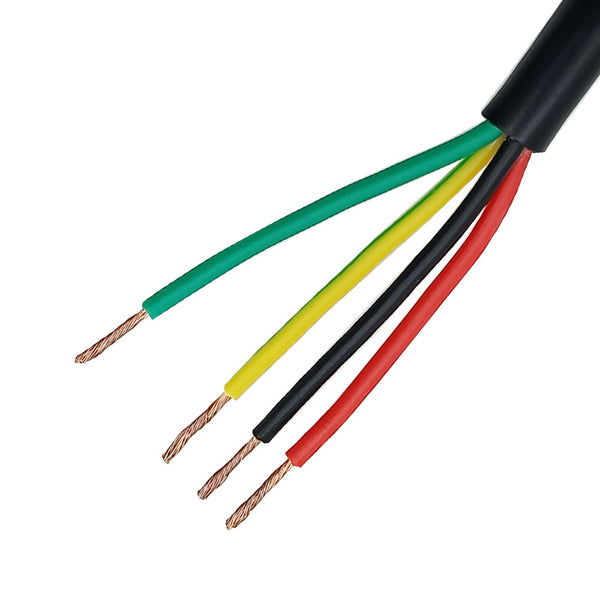

Wiring:
1) Connect the two wires of the DC electric linear actuator to the two output wires of manual switch;
2) Connect DC power supply to the input wires of manual switch.

Usage:
Push the manual switch to the position "ON", the linear actuator works in one direction.
Push the manual switch to the position "OFF", the linear actuator stops.
Push the manual switch to another position "ON", the linear actuator works in another direction.
Push the manual switch to the position "OFF", the linear actuator stops.
