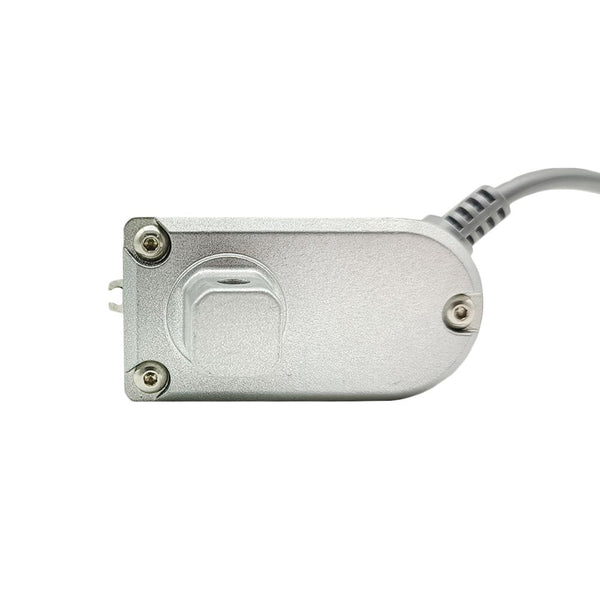

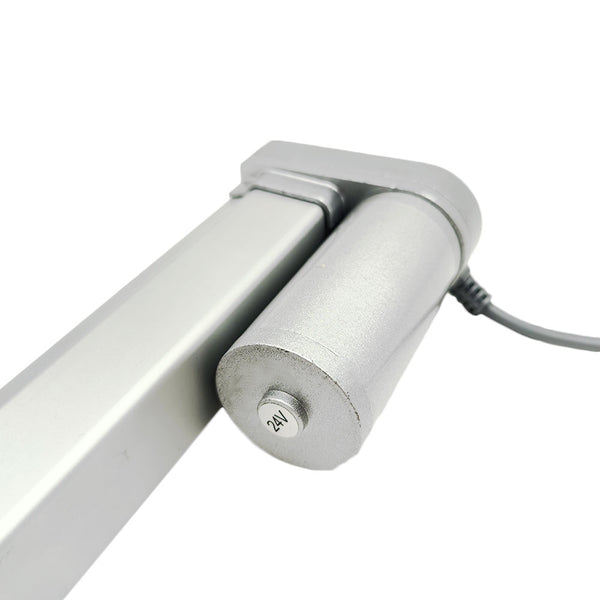

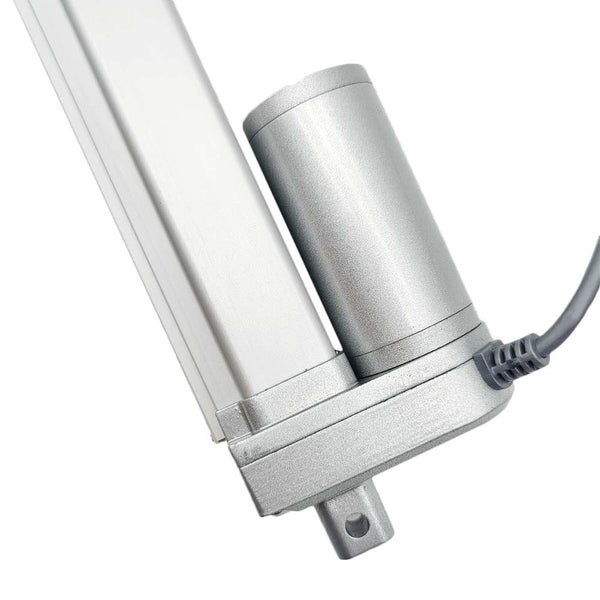

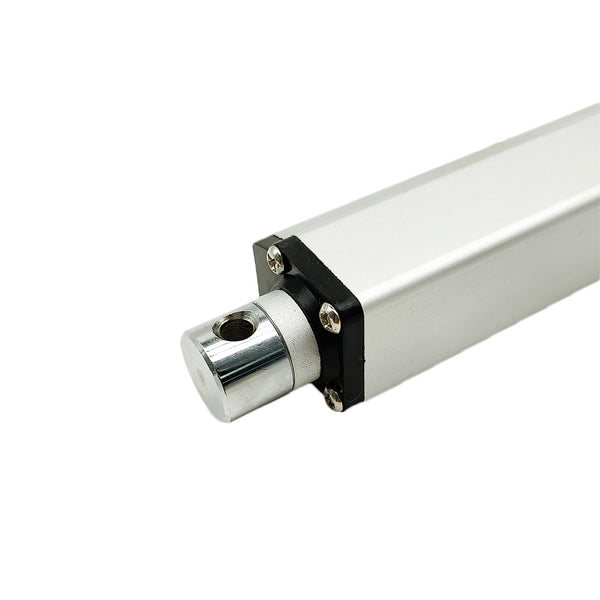

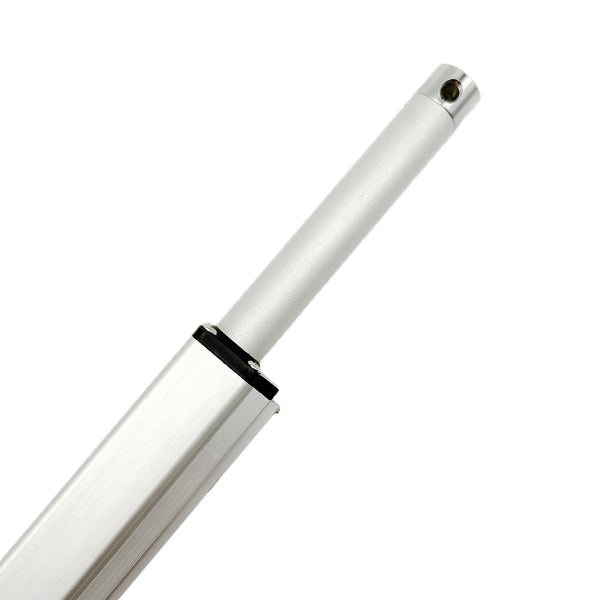

14 Inch DC 12V 24V Electric Linear Actuator Adjustable Stroke (Model: 0041727)

Note:

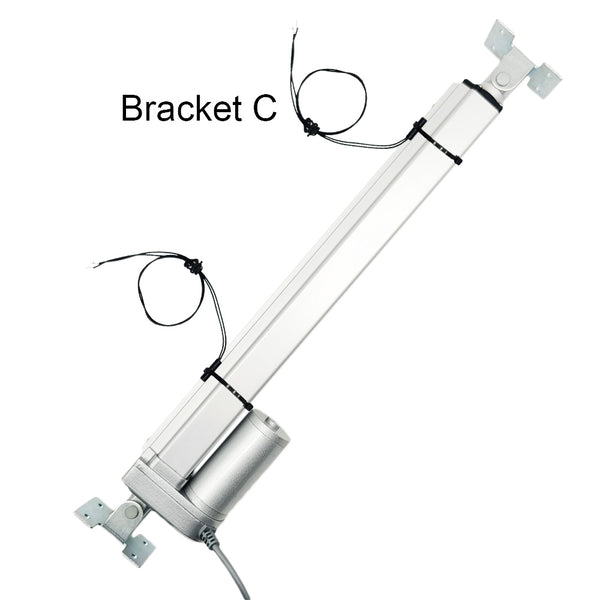

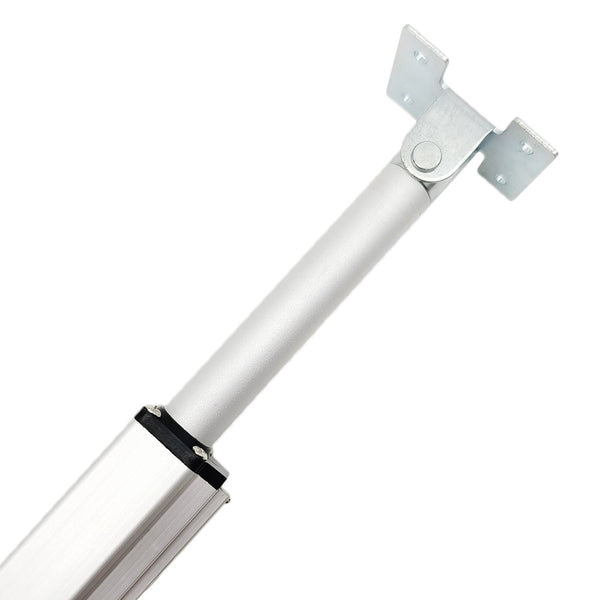

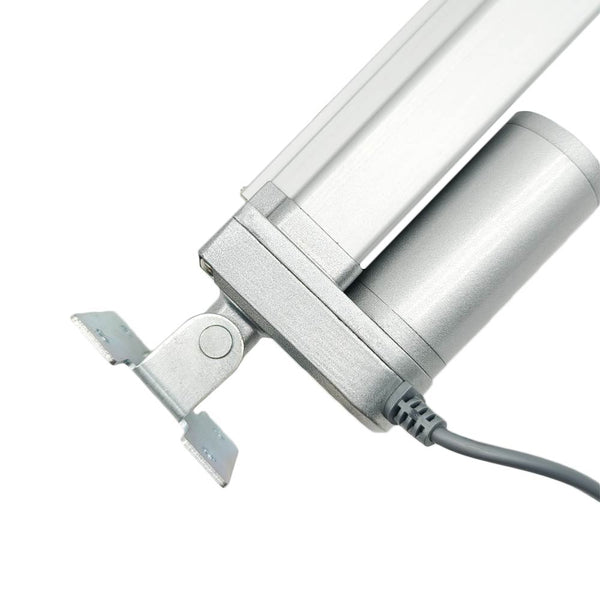

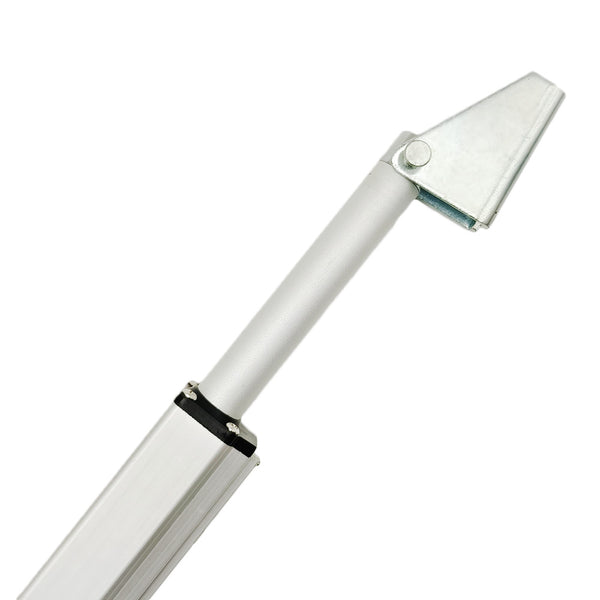

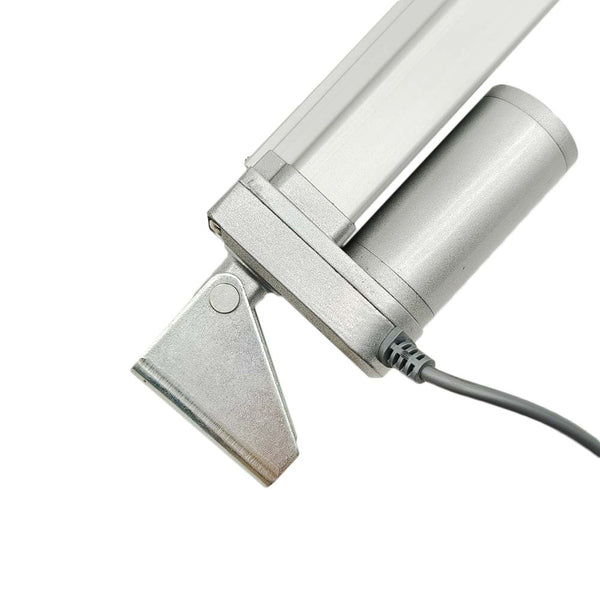

1) This product does not contain a mounting brackets. It compatible Bracket A and Bracket C, please click here to choose and buy.
2) If you need DC power supply for linear actuator, please click here to choose and buy.
3) If you need manual control switch for linear actuator, please click here to choose and buy.
4) If you need wireless remote control switch kit for linear actuator, please click here to choose and buy.

Package Include:
1 x Linear actuator A4

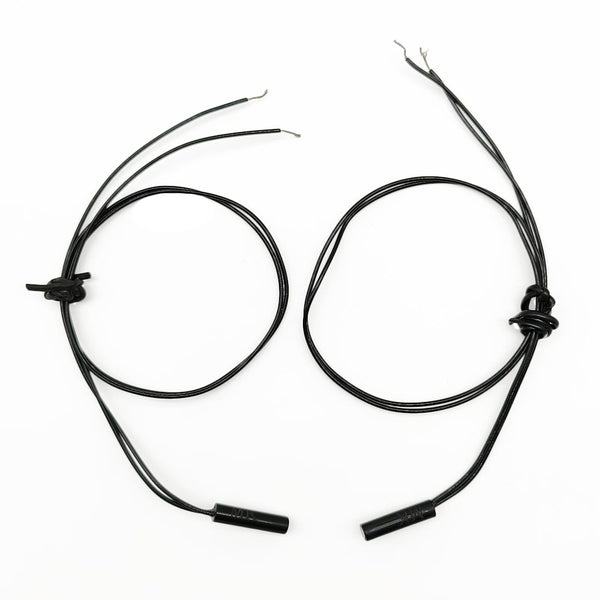

2 x Normally closed magnetic reed switch
1 x User manual

Introduction:

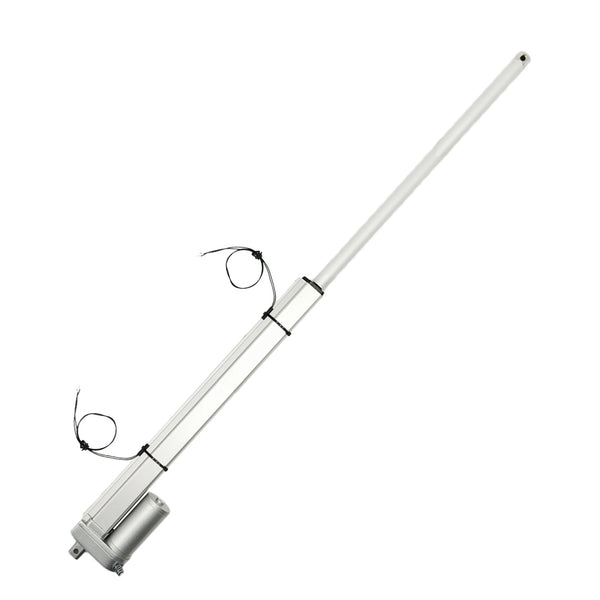

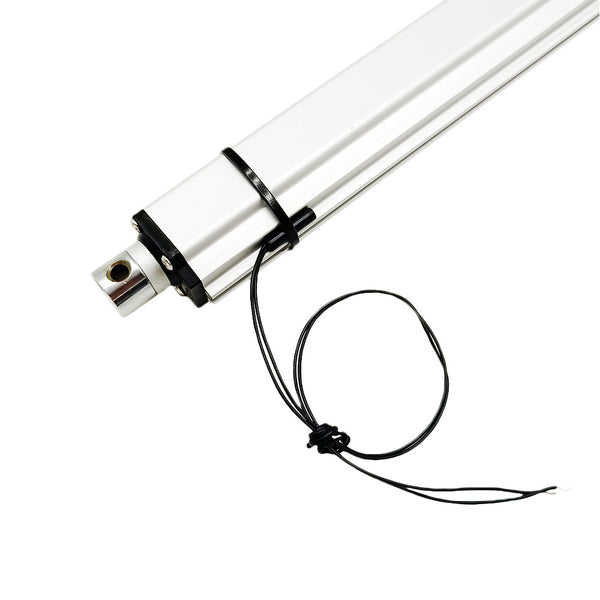

This is a linear actuator with adjustable stroke. It is equipped with two external normally closed magnetic switches that can slide freely, and by adjusting the position of these two normally closed magnetic switches, the linear actuator can be controlled to work within the set stroke length.

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Advanced waterproof and dustproof technology
Low power consumption and low noise
Equipped with two external normally closed magnetic switches that can slide freely, by adjusting the position of these two normally closed magnetic switches, the linear actuator can be controlled to work within the set stroke length.
You can control this linear actuator by a manual switch or a remote switch.
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

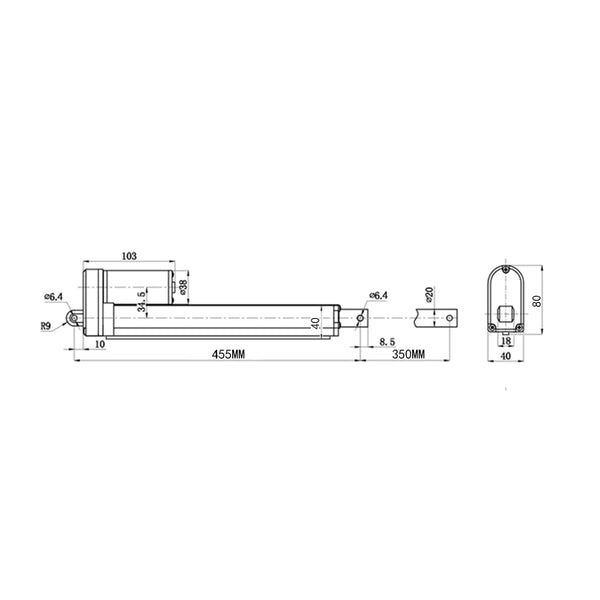

Specifications:
Optional working voltage: DC 12V or DC 24V
Stroke range: 14 inches or 350 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use a 12V/10A or 24V/5A power supply to power two linear actuators, or use a 12V/20A or 24V/10A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Power cable: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

Wiring for manual switch:
If use a manual switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two power terminals of the manual switch, and you can exchange these two wires to change the moving direction of linear actuator.

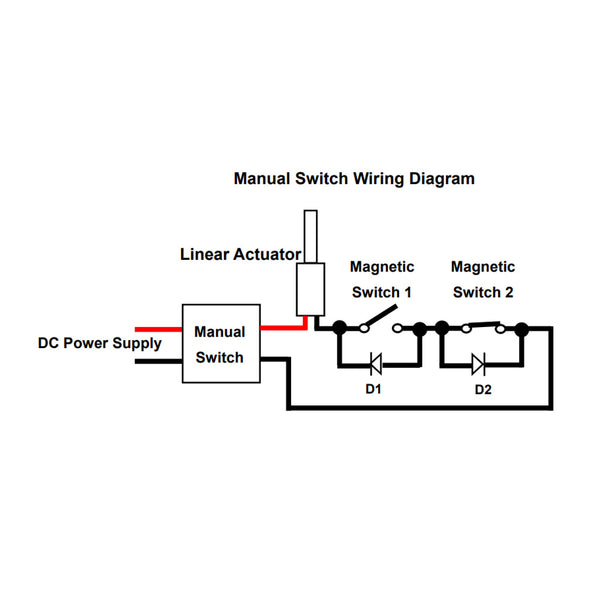

2. Connect the linear actuator, two magnetic reed switches and the two diodes to the manual switch, please follow the connection diagram below for specific wiring.

Operation by manual switch:
1. Press and hold the button on the manual switch: linear actuator extends outward, when it moves to the position of a magnetic switch, the linear actuator will automatically stop.
2. Press and hold the button on the manual switch: linear actuator inward retracts, when it moves to the position of another magnetic switch, the linear actuator will automatically stop.

Wiring for remote switch:
If use a remote switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two terminals of the remote switch input.
2. Connect two wires of linear actuator to two terminals of the controller, and you can exchange these two wires to change the moving direction of linear actuator.

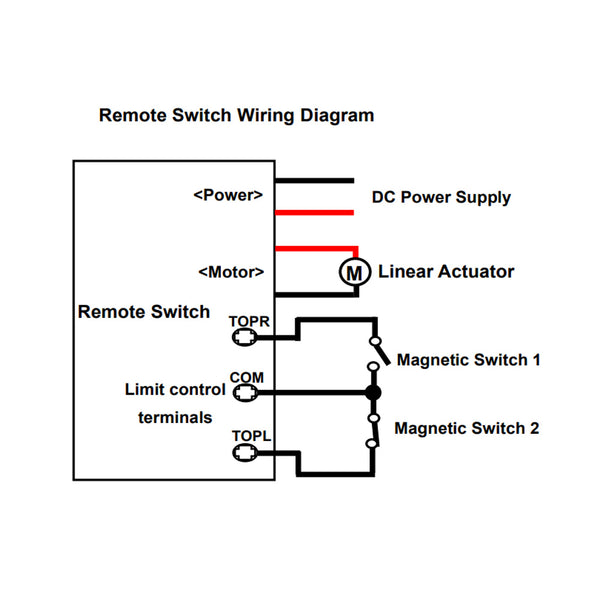

3. Connect two magnetic reed switches to the limit control terminals of the remote switch, please follow the connection diagram below for specific wiring.

Operation by remote switch:
1. Press and hold the button ▲ on the remote: linear actuator extends outward, when it moves to the position of a magnetic switch, the linear actuator will automatically stop.
2. Press and hold the button ▼ on the remote: linear actuator inward retracts, when it moves to the position of another magnetic switch, the linear actuator will automatically stop.

How to adjust the position of the magnetic switch:
You can use a small screwdriver to loosen the fixing screw of the magnetic switch, then move the magnetic switch to a suitable position and tighten the fixing screw again.
Note: If the positions of the two magnetic switches are reversed, please swap their positions.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
