Application:
This wireless switch or radio receiver is an electric device with 4 channels dry relay output (Normally open and normally closed), it and the transmitter form a remote control kit.

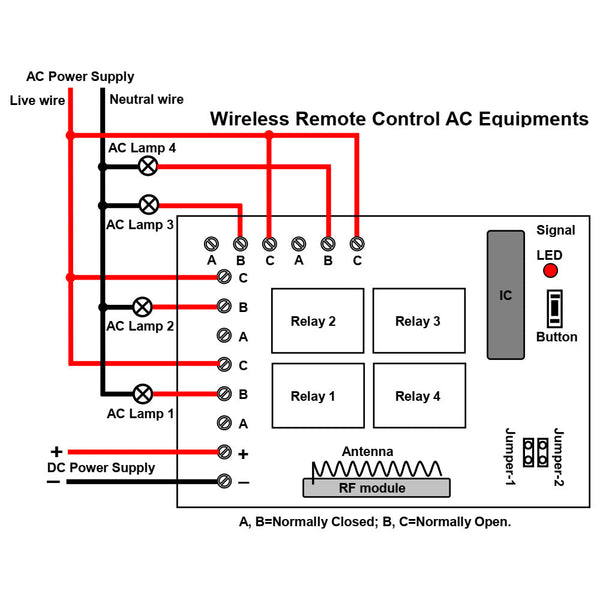

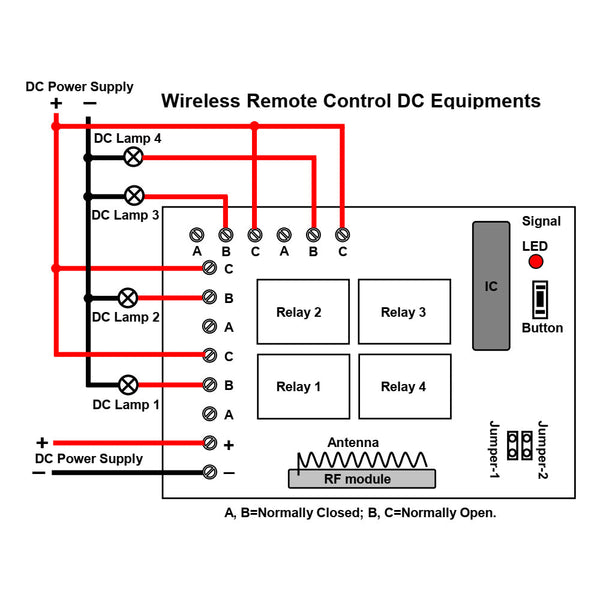

This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long distance remote control DC and AC equipments, such as long range remote control lights, lamps, electric solenoid valves, locks, motors, pumps, fans, winches, blinds, linear actuators, doors, windows, solar light, etc.
Feature:
Wireless control, easy to install.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.

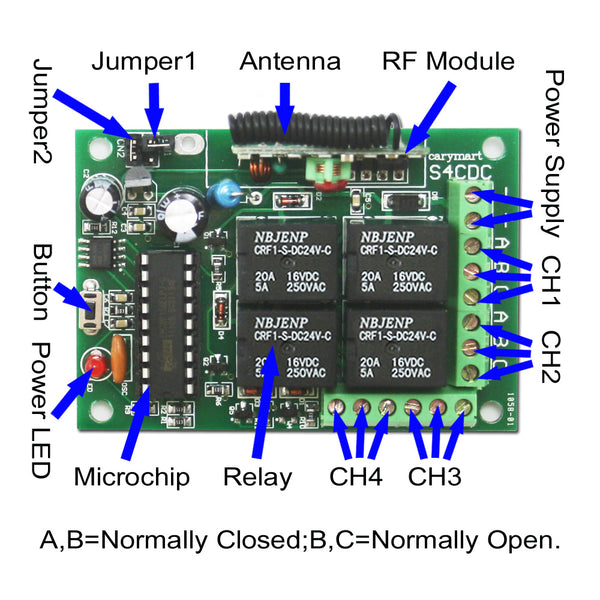

Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.

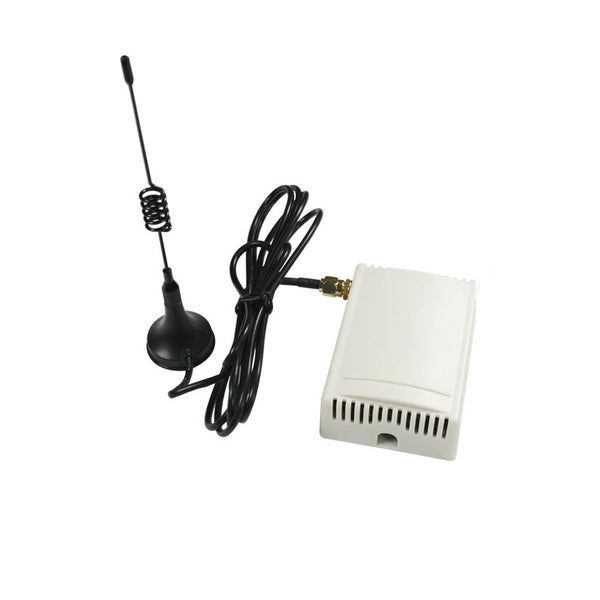

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S4C-DC06-ANT3 / S4C-DC09-ANT3 / S4C-DC12-ANT3 / S4C-DC24-ANT3
Power Supply (Operating Voltage): DC6V (S4C-DC06-ANT3), DC9V±1V (S4C-DC09-ANT3), DC12V±1V (S4C-DC12-ANT3), DC24V±2V (S4C-DC24-ANT3)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-18 AWG
Working Frequency: 433.92MHz
Channel: 4 way
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 5A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 67mm x 50mm x 18mm
Case size: 75mm x 54mm x 27mm
Matching Transmitters:
The receiver can work with different transmitters. such as model C-4 (100 Meter / 300 feet range), CP-4 (500 Meter / 1500 feet range), or CB-4 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 100 Meter in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver or use a high-power transmitter, such as CB-4 transmitter.
Setting different control modes:
1) Setting Self-locking mode: Only connect Jumper-2.
Control mode Self-locking (working with transmitter C-4): Press -> On; Press again -> Off.
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Press the button 1 again: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Press the button 2 again: The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press the button 3 on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on.
Press the button 3 again: The relay 3 is deactivated, and the connected lamp 3 is turned off.
Press the button 4 on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on.
Press the button 4 again: The relay 4 is deactivated, and the connected lamp 4 is turned off.
2) Setting Momentary mode: Only connect Jumper-1.
Control mode Momentary (working with transmitter C-4): Press and hold -> On; Release -> Off.
Press and hold the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Release the button 1: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press and hold the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Release the button 2: The relay 2 is deactivated, and the connected lamp 2 is turned off.
Press and hold the button 3 on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on.
Release the button 3: The relay 3 is deactivated, and the connected lamp 3 is turned off.
Press and hold the button 4 on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on.
Release the button 4: The relay 4 is deactivated, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Disconnect Jumper-1 and Jumper-2
Control mode Interlocking (working with transmitter C-4): Press -> On, Press another button -> Off.
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on; Other 3 relay aredeactivated, and connected lamps are turned off.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on; Other 3 relay aredeactivated, and connected lamps are turned off.
Press the button 3 on the transmitter: The relay 3 in the receiver is activated, and the connected lamp 3 is turned on; Other 3 relay aredeactivated, and connected lamps are turned off.
Press the button 4 on the transmitter: The relay 4 in the receiver is activated, and the connected lamp 4 is turned on; Other 3 relay aredeactivated, and connected lamps are turned off.
Package Include:
1 x Receiver: S4C-DC-ANT3
1 x User manual
