Package Include:
1 x Dual Pedal Momentary Foot Switch
1 x User Manual
Introduction:

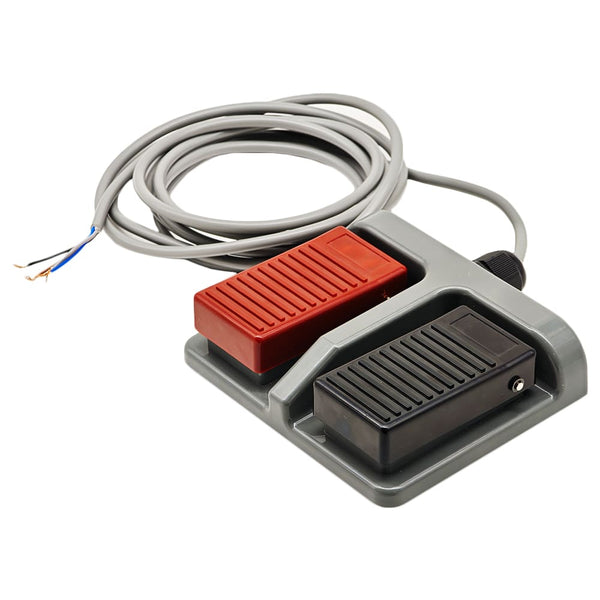

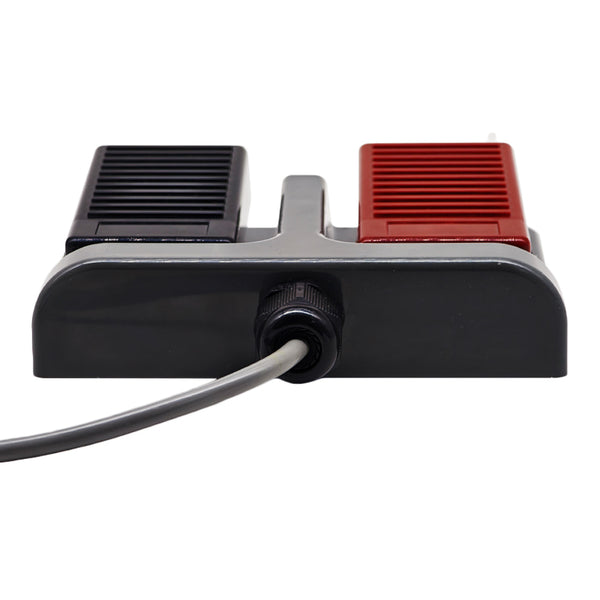

This is a dual-pedal momentary foot switch with normally open contact output and 4-core cable.

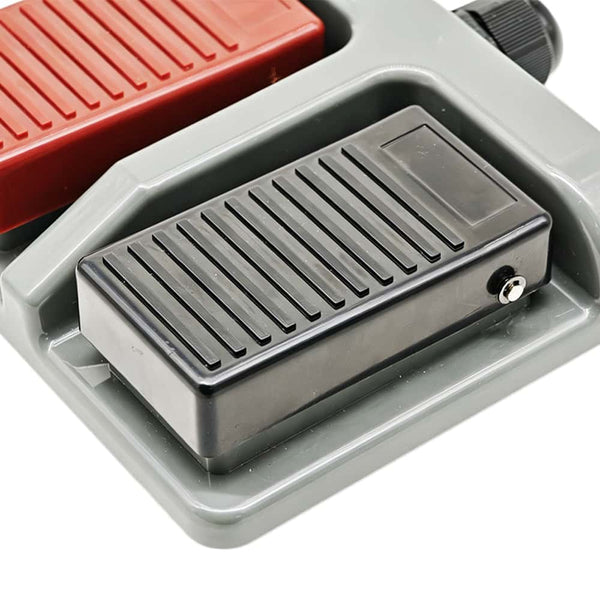

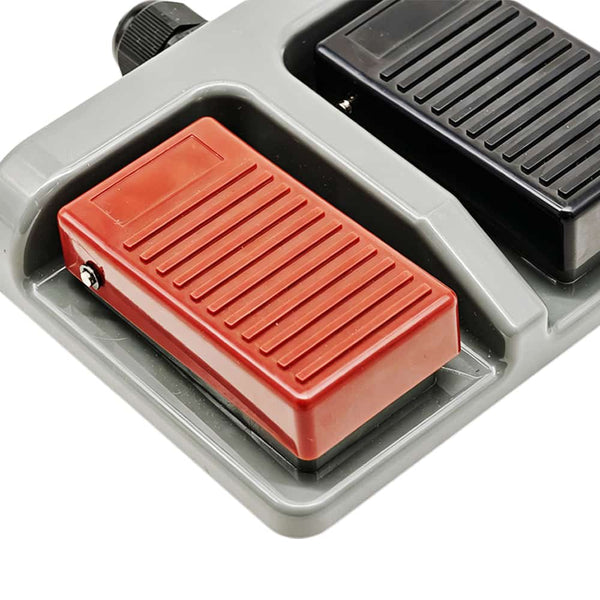

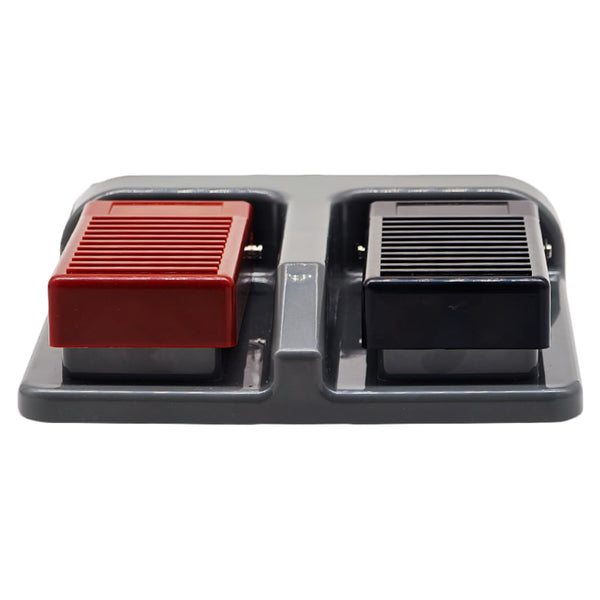

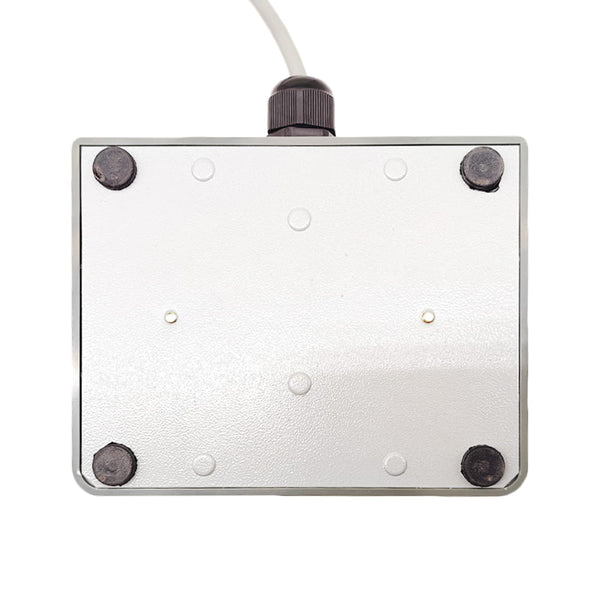

Features red and black pedals for different functions, such as "extend" and "retract" or "CW" and "CCW".

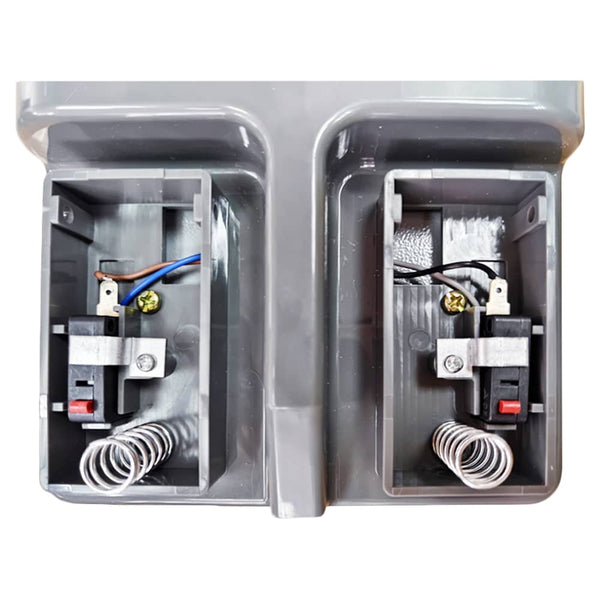

Each pedal is equipped with a set of normally open contacts. You can connect this dual-pedal momentary foot switch to a receiver with wired control terminals, to controls the clockwise (CW) and counter-clockwise (CCW) rotation of the DC motor, or the extension and retraction of the linear actuator.
Product Description:
Operating Voltage : DC 12V ~ 24V
Maximum Load Current: 6A
Two Pedals: Red pedal, Black pedal
Work Mode: Momentary

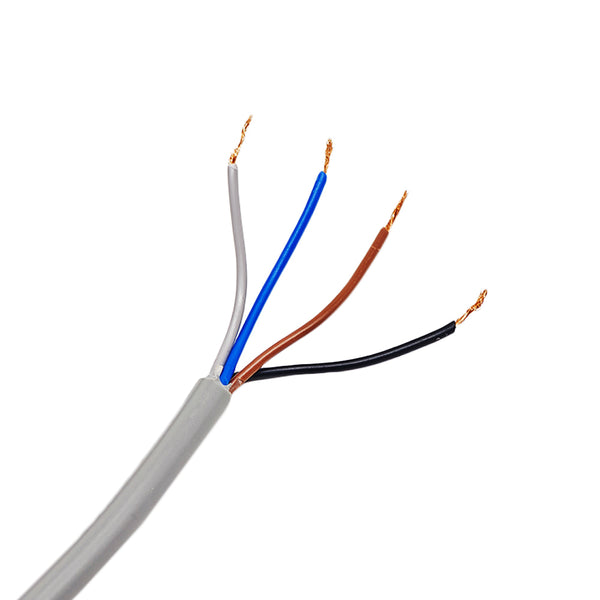

Equipped with a 300CM 20AWG four-core cable
Each pedal is equipped with a set NO contacts
Contact Material: Silver Contacts
Operating Temperature: -20°C to +70°C
Internal cables are pre-wired
Size: 142 x 150 x 34 mm
Suitable for our wireless remote control switch kit for DC 12V 24V electric linear actuator, such as Model: 0020512 and Model: 0020317.
Suitable for our wireless remote control switch kit for DC 12V 24V electric motor, such as Model: 0020512 and Model: 0020317.
Wiring:

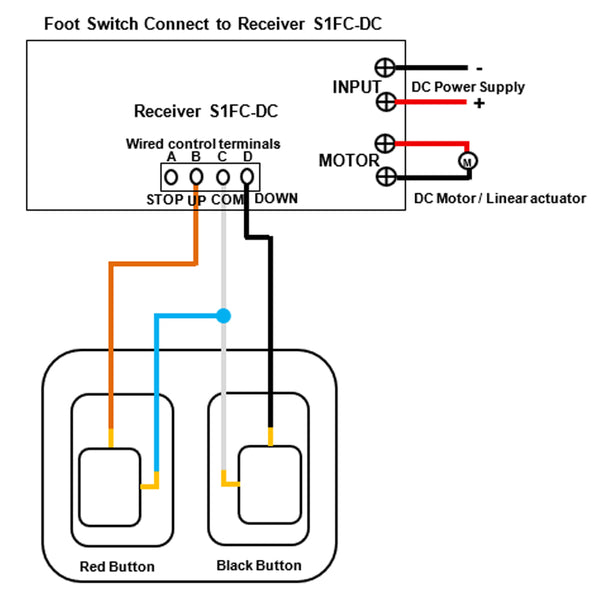

Connect to the receiver S1FC-DC of the product "Model: 0020317":
1. Connect the positive pole of DC power supply to terminal <+> of the receiver's input, and connect the negative pole of DC power supply to terminal <-> of the receiver's input.
2. Connect the foot switch wires to the receiver's wired control terminals as follows:
1) Brown wire to <UP> terminal
2) Black wire to <DOWN> terminal
3) Blue and white wires to <COM> terminal
3. Connect two wires of the motor or the linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of the motor or the moving direction of the linear actuator.

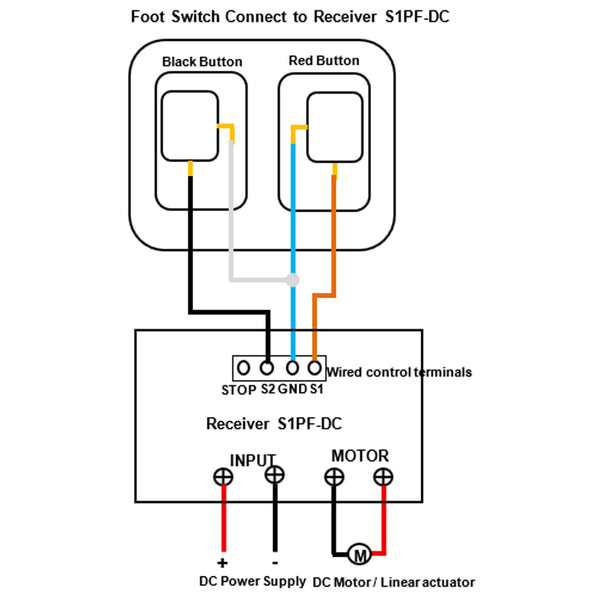

Connect to the receiver S1PF-DC of the product "Model: 0020512":
1. Connect the positive pole of DC power supply to terminal <+> of the receiver's input, and connect the negative pole of DC power supply to terminal <-> of the receiver's input.
2. Connect the foot switch wires to the receiver's wired control terminals as follows:
1) Brown wire to <S1> terminal
2) Black wire to <S2> terminal
3) Blue and white wires to <GND> terminal
3. Connect two wires of the motor or the linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of the motor or the moving direction of the linear actuator.
Operation:
Step on and hold down red foot pedal, motor rotates in positive direction, or linear actuator extends outward; Release the pedal, motor or linear actuator stops.
Step on and hold down black foot pedal, motor rotates in reversal direction, or linear actuator inward retracts; Release the pedal, motor or linear actuator stops.
