This wireless RF transmitter is a super long range 8 buttons radio remote control. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It uses a transceiver chip to implement bidirectional communication. Its ideal working distance can reach more than 5 kilometers, which is an excellent device for remote control and long distance communication.
It and the receiver form a remote control receiver kit. This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long distance remote control DC or AC equipments, such as remote control lights, lamps, sirens, locks, motors, fans, pump, winches, blinds, linear actuators, doors, windows, electric solenoid valves, etc.
Super Long Working Range:
With the receiver forming a complete set, the maximum working distance may reach 5000 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Two-Way Working Mode And Feedback Function:
The transmitter and the receiver have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.
This transmitter only works 5000 meters 8 channels radio receiver or switch (model 0020054 S8UW-DC), and it does not work with other ordinary receivers.
Model: 0021077 (CC-8)
Channel / Button: 8
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8

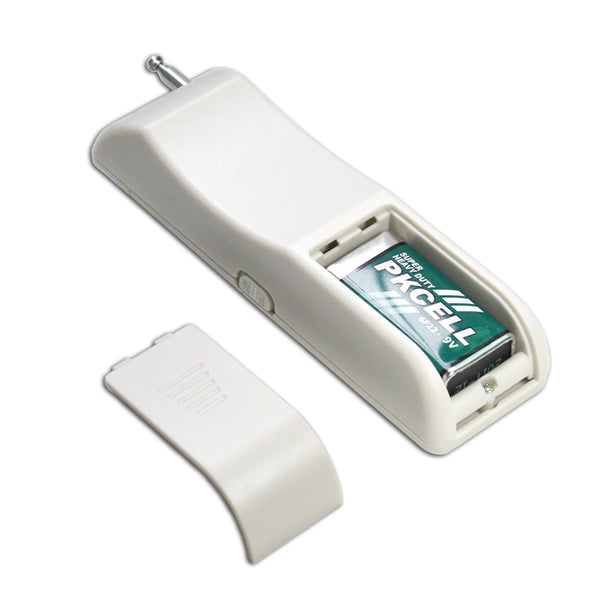

Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)

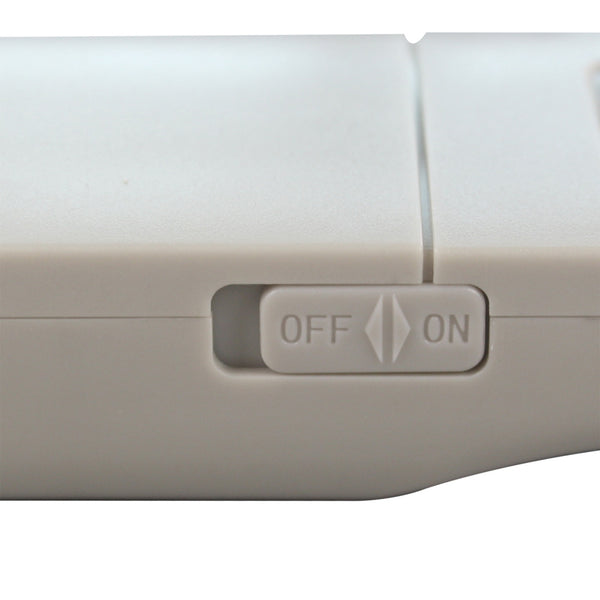

With power switch on the side.
Operating Temperature: -20°C ~ +70°C
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
