Permanent Magnet Synchronous Motor AC 220 Volt 28W High Torque (Model: 0042002)

Regular price $29.00

Shipping calculated at checkout.

Mainly used for monitor platform, electric equipment, automatic instrument, electric advertising banner, screen machine, pouch laminator, mahjong table, cash register, vending machine, electronic ticket machine and all small power and low constant speed equipment.

High torque and low noise
Low power consumption
Small size, light weight
Easy to use
Gearhead motor
High quality
All-metal gear
No speed regulation

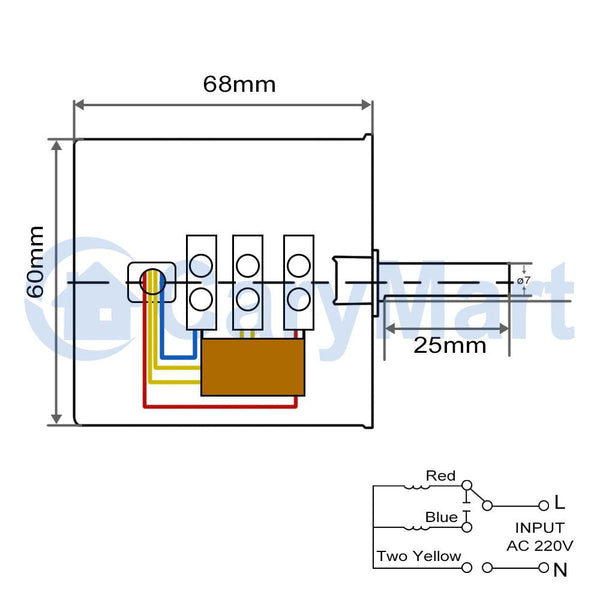

Rotate forward & reverse, direction can be changed by changing wiring

Working voltage range: 220V ~ 240V AC
Working current: 60mA
Working power: 28W
Diameter: 60mm
Length (excluding shaft): 68mm
Total length: 93mm
Shaft length: 25mm
Shaft diameter: 7mm

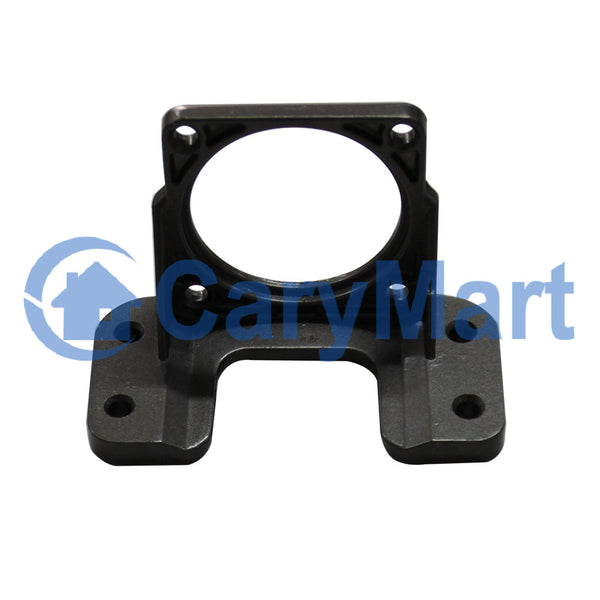

Front panel 4.5mm Screw for fixing this motor
Optional no-load speed:2.5RPM, 5RPM, 10RPM, 15RPM, 20RPM, 30RPM, 40RPM, 50RPM, 60RPM, 80RPM, 100RPM.

Rated speed (RPM) 2.5 5 10 15 20 30 40 50 60 80 100
Output torque (N.CM) 1000 800 400 250 200 125 100 75 60 50 40
