Remote Control US Socket With One Wireless Receiver and Six RF Transmitter

Regular price $205.00

Shipping calculated at checkout.

Package Include:
1 x Receiver With Unite States Standards Plug and Socket: S1PX-US-AC
6 x Transmitter: CD-2
1 x User manual

Application:
The wireless RF remote control American AC power plugs and sockets with radio transmitter and receiver.
Wireless remote control outlet can be used in industry automation, agriculture automation and home automation, such as remote control lights, single phase motor, fans, electric solenoid valves, business signs and various devices.

Feature:
Wireless remote control, easy to install.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
AC Power Output: It can control AC equipment with voltage 110V / 120V / 220V / 240V AC.
High Power: It can work at maximum current 15A.
You can turn on/ off wireless socket with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: Wireless socket only works with the transmitter which use same code.
One/several transmitters can control one/several wireless socket simultaneously.
You can use two or more units in the same place.

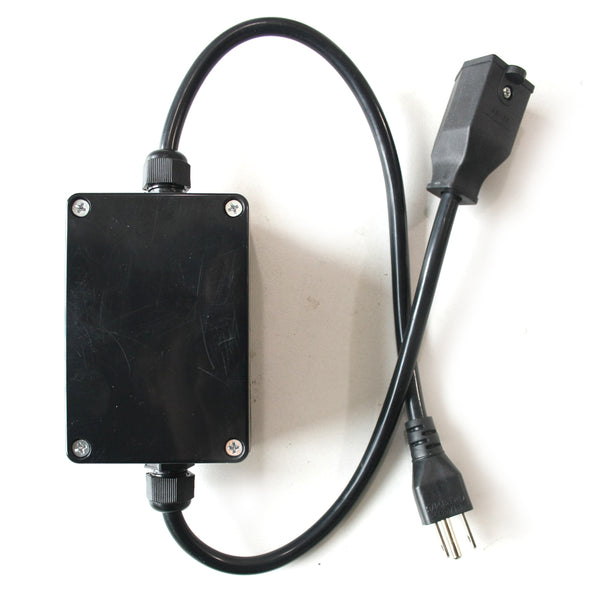

Wireless Socket Parameters:
Model No.: S1PX-US-AC

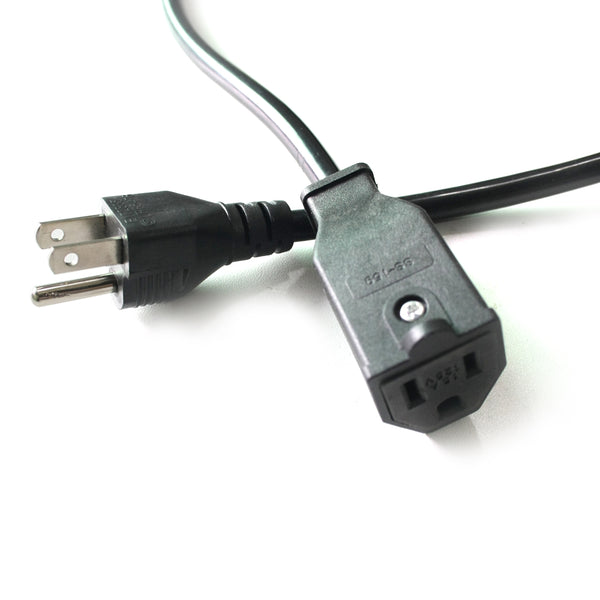

With American Standards Plug and Socket.
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Channel: One socket and one AC plug
Selectable Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current of Power Socket: 15A
Working Frequency: 433.92MHz

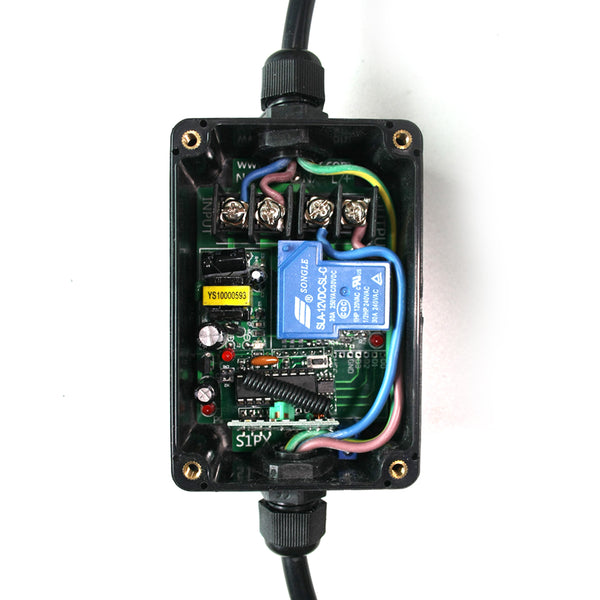

PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 100 x 68 x 50 mm (4.0 x 2.7 x 2.0 inches)

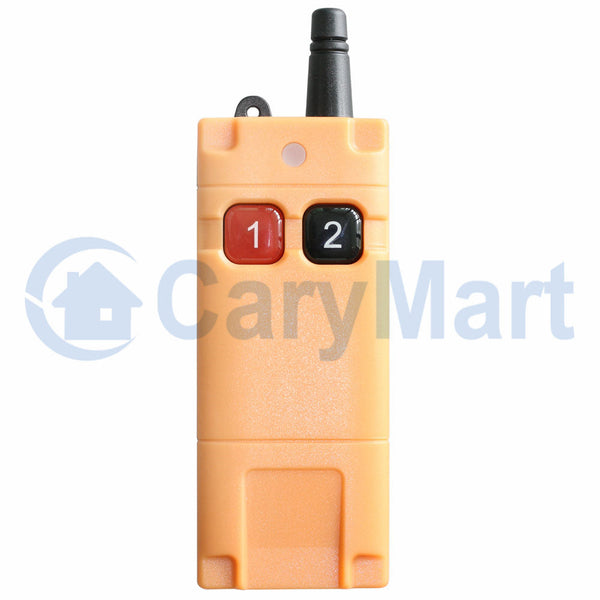

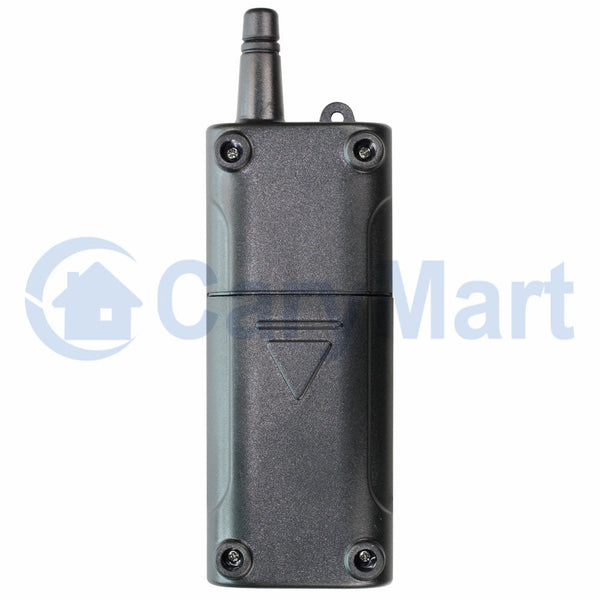

Transmitter Parameters:
Model No.: 0021086 (CD-2)
Channel / Button: 2
Button Symbol: 1, 2
With waterproof case, waterproof antenna and waterproof buttons, it can be used outdoors.

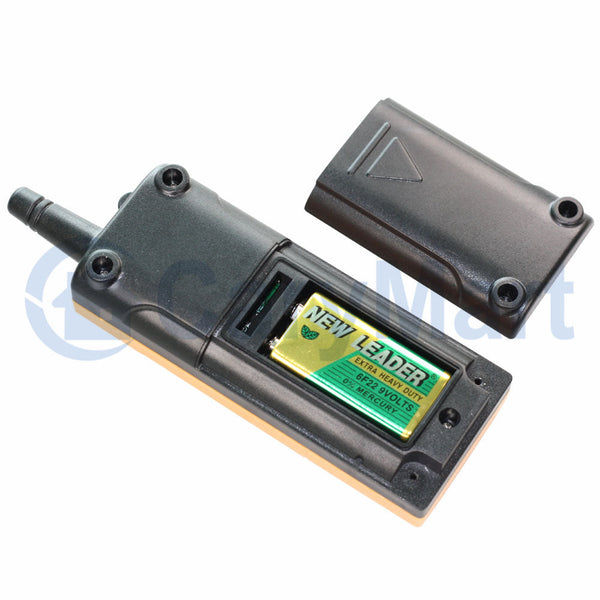

Operating Voltage: 9V (1 x 6F22-9V battery)
Operating Current: 30mA
Operating Frequency: 433.92 MHz
Modulation Mode: ASK
Encoding Chip: SC2260-R4
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000 meters / 3000 feet (theoretically)
Operating Temperature: -20°C ~ +70°C
Unit Size: 150 x 50 x 30 mm (5.9 x 2.0 x 1.2 inches)

Working Range:
With a transmitter (such as CD-2) to form a complete set, the maximum working distance can reach 1000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater.

Usage:
Wireless remote control sockets can be used to control AC 110~240V equipments.

Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CD-2:
Press and hold button 1 of the transmitter: The socket outputs AC power, the connected device works.
Release button 1 of the transmitter: The socket stops outputting, the connected device stopped working.

2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CD-2:
Press button 1 of the transmitter: The socket outputs AC power, the connected device works.
Press button 1 of the transmitter again:: The socket stops outputting, the connected device stopped working.

3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CD-2:
Press button 1 of the transmitter: The socket outputs AC power, the connected device works.
Press button 2 of the transmitter: The socket stops outputting, the connected device stopped working.
