Control the forward rotation, stop, reverse rotation and speed regulation of DC brush motor.
Operating voltage range: DC 10V~60V
Rated current: 6A

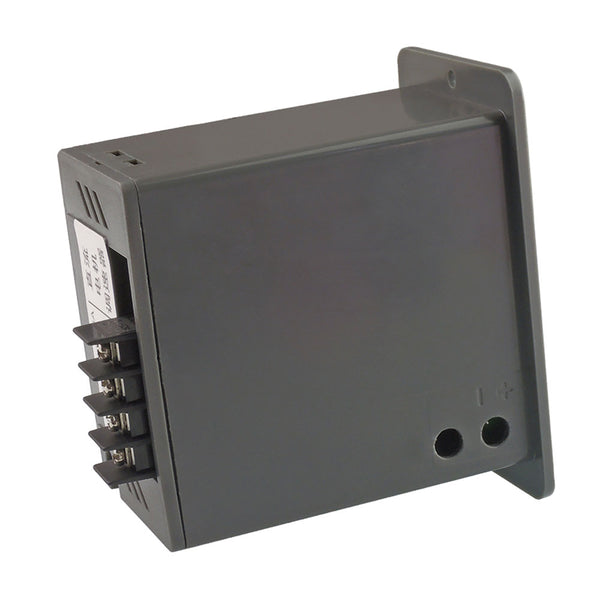

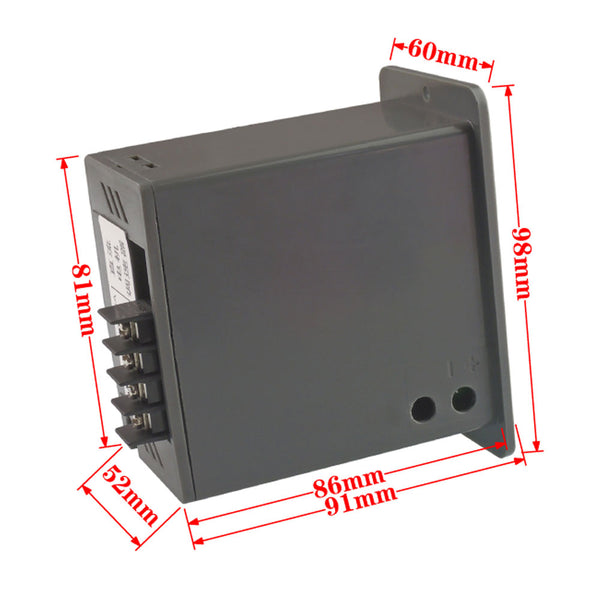

Size: 91 x 98 x 60 mm (3.6 x 3.9 x 2.4 inches)
Speed Adjustment Range: 5%~100%.

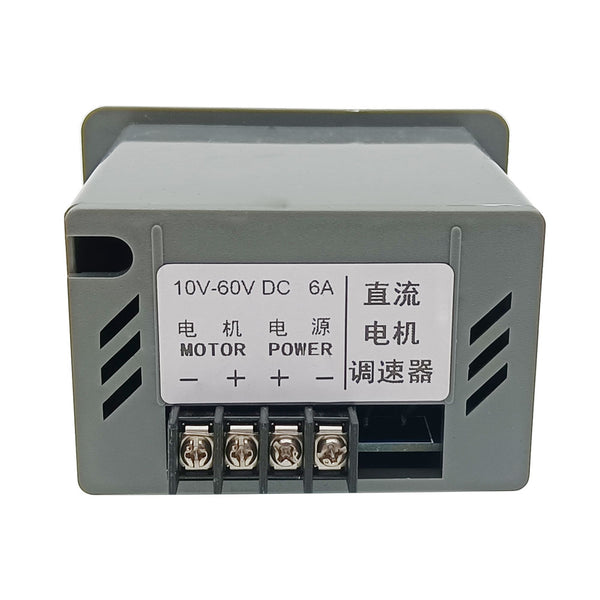

1) Connect the positive pole of DC power supply to the power terminal “+”, and connect the negative pole of DC power supply to the power terminal “-“. The positive and negative poles cannot be reversed, otherwise the controller will be damaged.
2) Connect DC motor to the motor terminals. You can exchange these two wires to change the direction of movement.
Push the switch to the position "ON", motor rotates in positive direction.
Push the switch to the position "OFF", motor stops.
Push the switch to another position "ON", motor rotates in reversal direction.

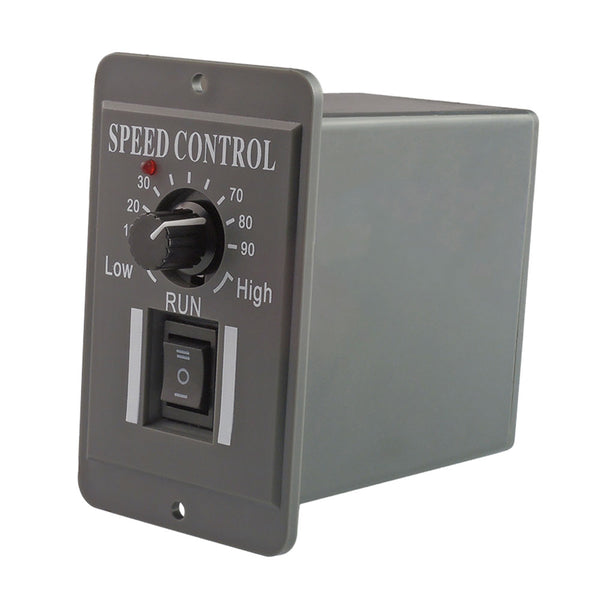

Twist the knob to adjust the rotation speed of DC motor.
Twist clockwise, the rotation speed of motor will speed up.
Twist anti-clockwise, the rotation speed of motor will slow down.
